Shift Interlock: Testing and Inspection

SYSTEM CHECK

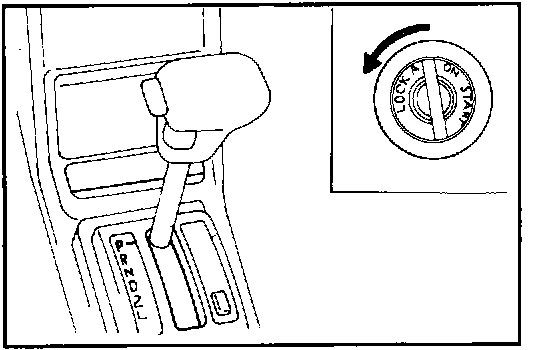

KEY LOCK SYSTEM





1. Check that the ignition key cannot be turned to "LOCK (OFF)" position, when the position ot the shift lever is not in "P" position.





2. Check that the ignition key turns to the "LOCK (OFF)" position, when the shift lever is set to the "P" position.

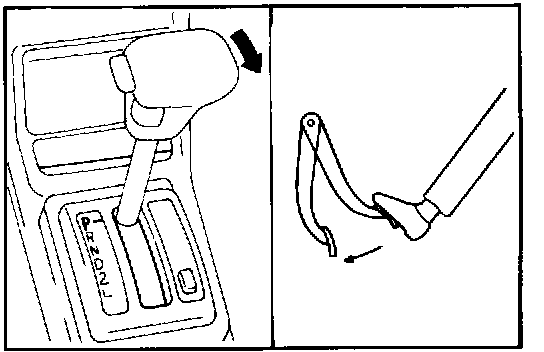

SHIFT LOCK SYSTEM





1. Check that under the following conditions, the shift lever cannot be moved from the "P" position to any other position.

IGNITION KEY POSITION : "ON"
BRAKE PEDAL : NOT DEPRESSED
BUTTON : PRESSED





2. Check that under the following conditions, the shift lever can be moved from the "P" position to other position.

IGNITION KEY POSITION : "ON"
BRAKE PEDAL : DEPRESSED
BUTTON : PRESSED

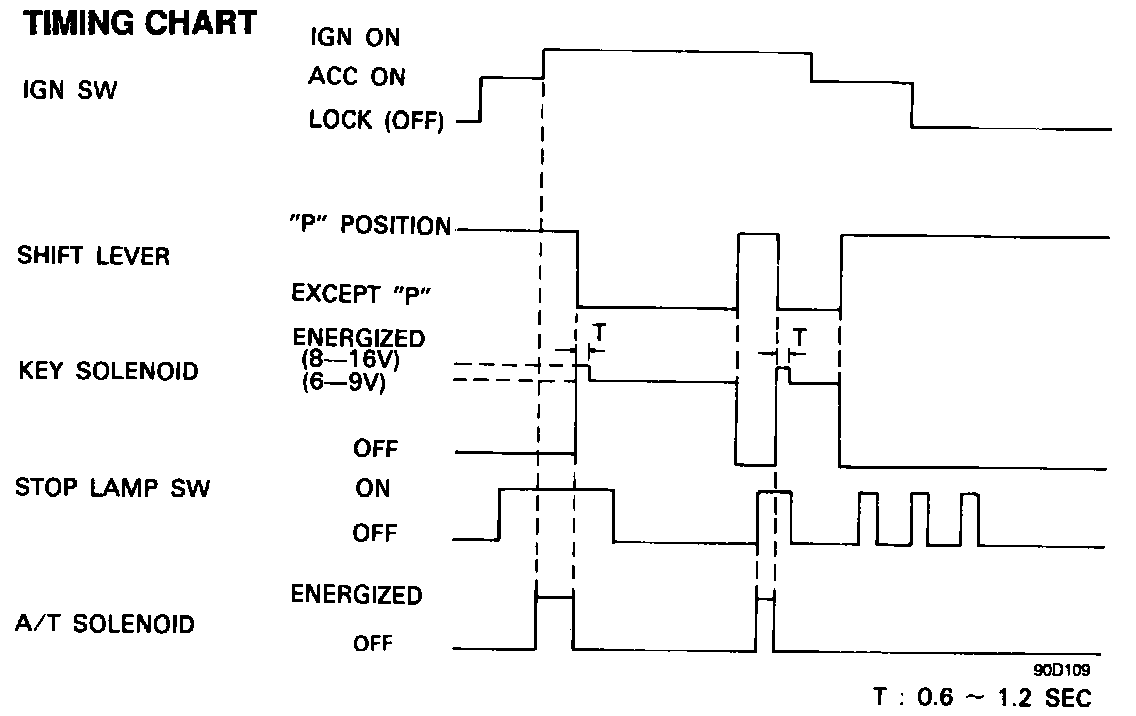

TIMING CHART
