Driveshaft Oil Seals Replacement

DRIVESHAFT OIL SEALS REPLACEMENT
1. Disconnect the drive shaft from the transaxle

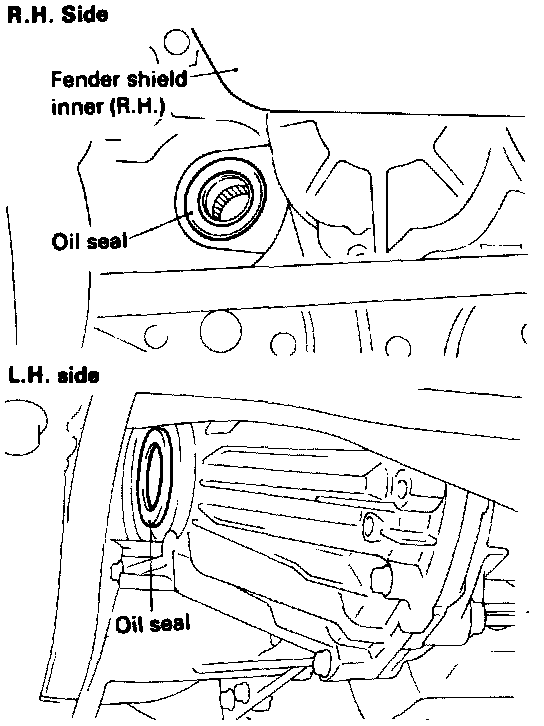

2. Using a flat-tip screwdriver, remove the oil seal.

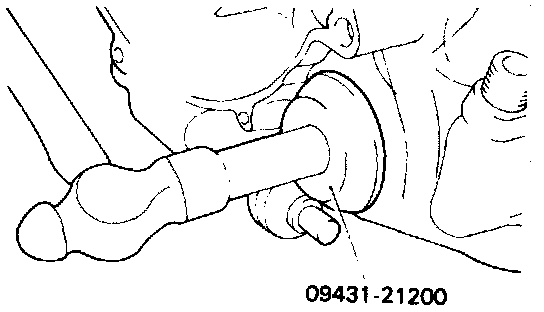

3. Using the special tool (09431-21200), tap the drive shaft oil seal into the transaxle.
4. Apply a coating of the automatic transaxle fluid to the lip of the oil seal.
