Steering and Suspension: Testing and Inspection

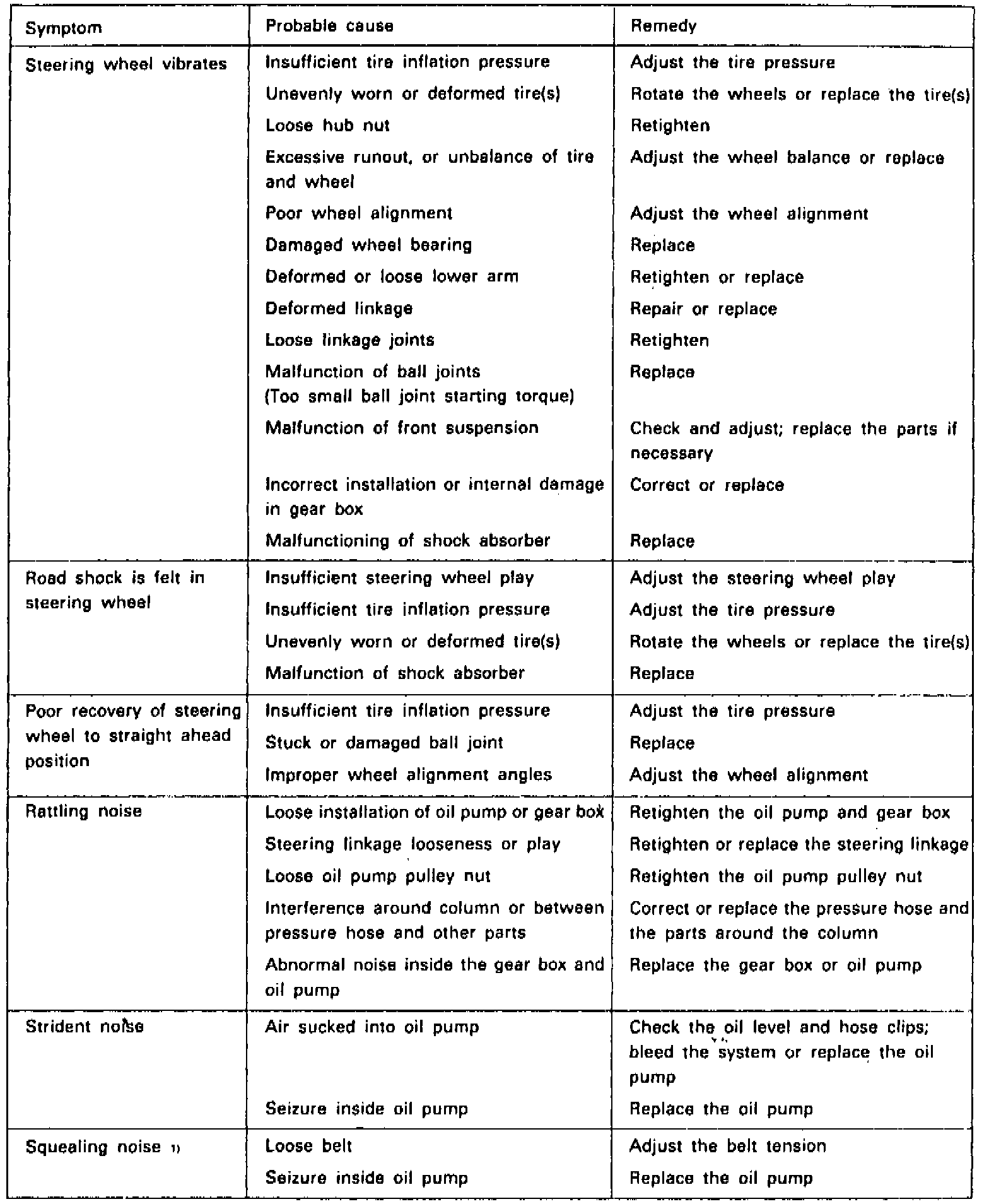

Fig. 1 Troubleshooting Chart (Part 1 Of 3):

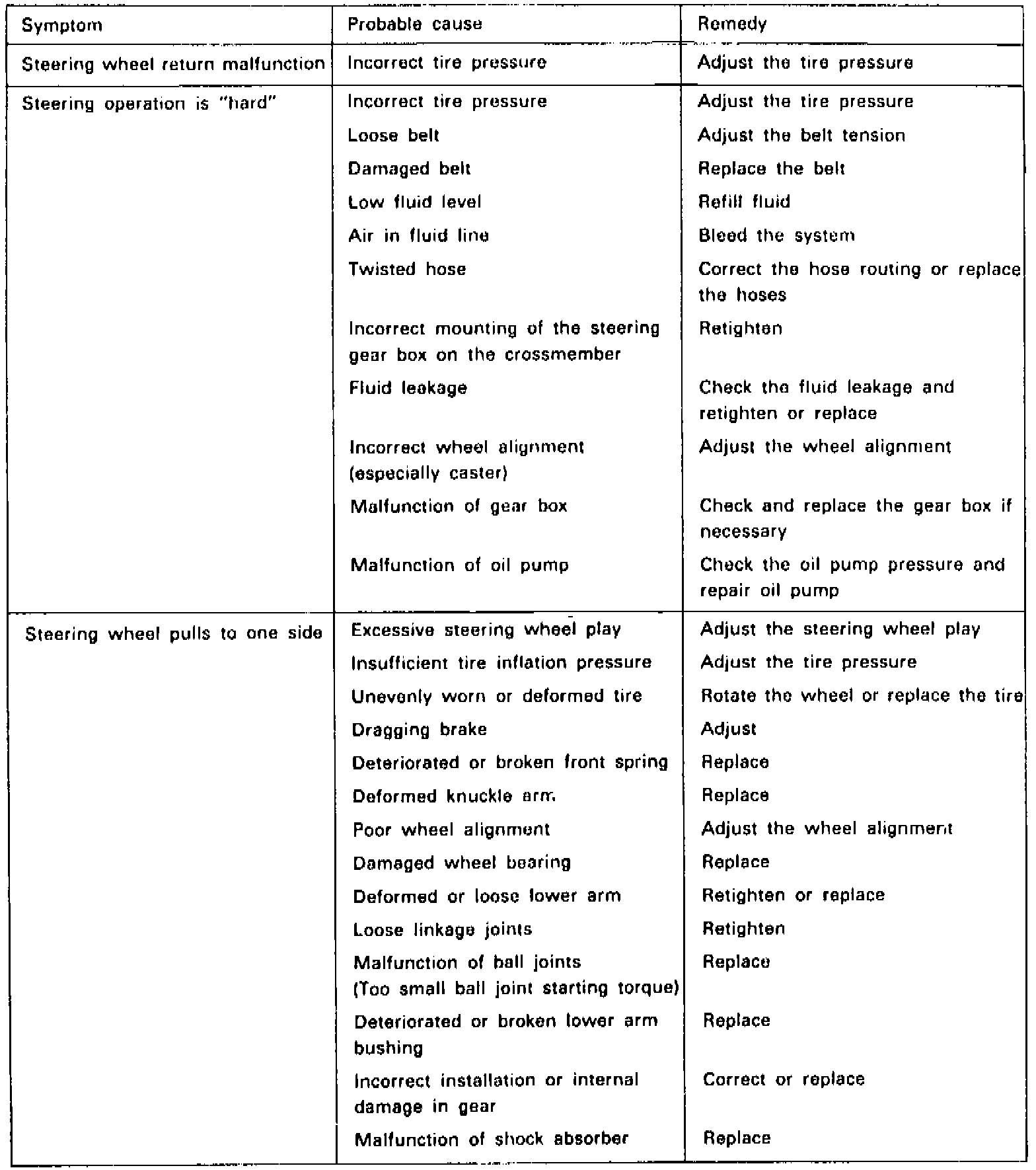

Fig. 1 Troubleshooting Chart (Part 2 Of 3):

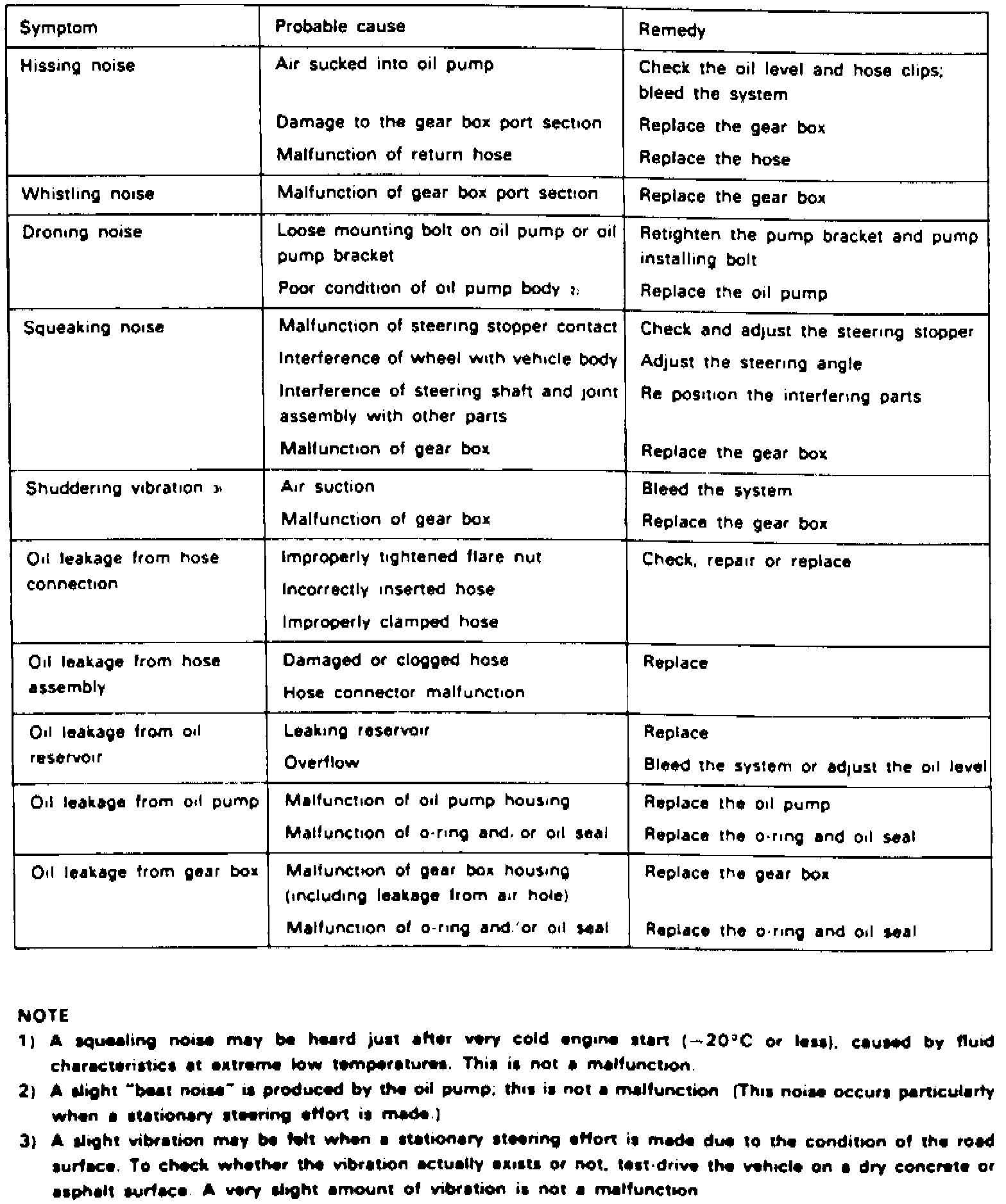

Fig. 1 Troubleshooting Chart (Part 3 Of 3):
Refer to
Fig. 1
for troubleshooting procedures.
