Excel L4-1468cc 1.5L SOHC (8 VALVE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Sensors and Switches - Computers and Control Systems
>>
Vehicle Speed Sensor
>>
Diagrams
>>
Connector Views
>>

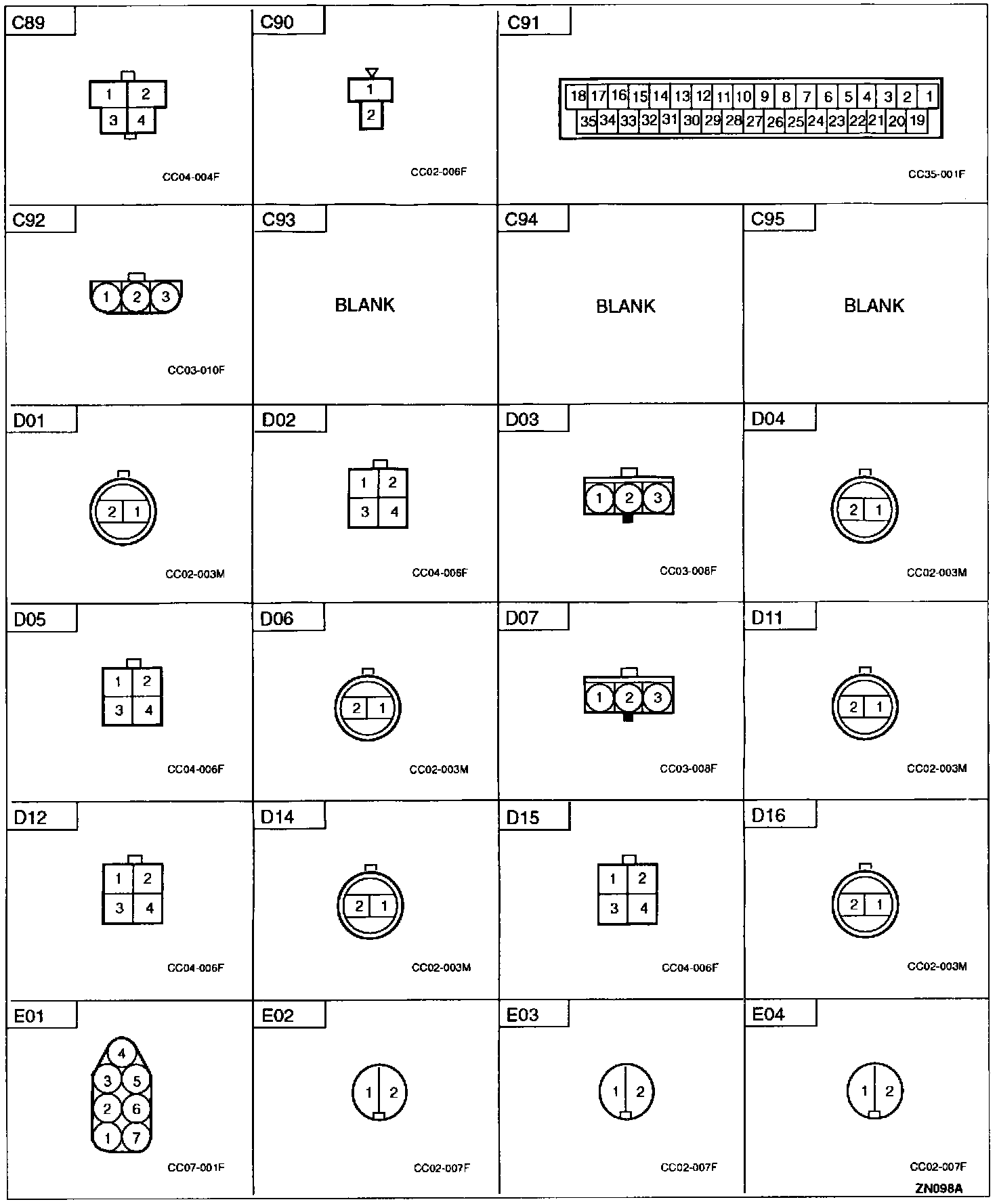

C89 - C95/D01 - D16/E01 - E04
C89 - C95/D01 - D16/E01 - E04
C89 ~ E04:
