Evaporator Core: Service and Repair

1. Disconnect battery ground cable, discharge and recover refrigerant as outlined in Technician Safety Information.
2. Using tube remover tool No. 09977-33600, or equivalent, remove suction hose and liquid tube.
3. Remove grommet cover, console assembly and glove compartment assembly.
4. Remove main lower crash pad, lower crash pad center fascia panel and lower crash pad center skin.

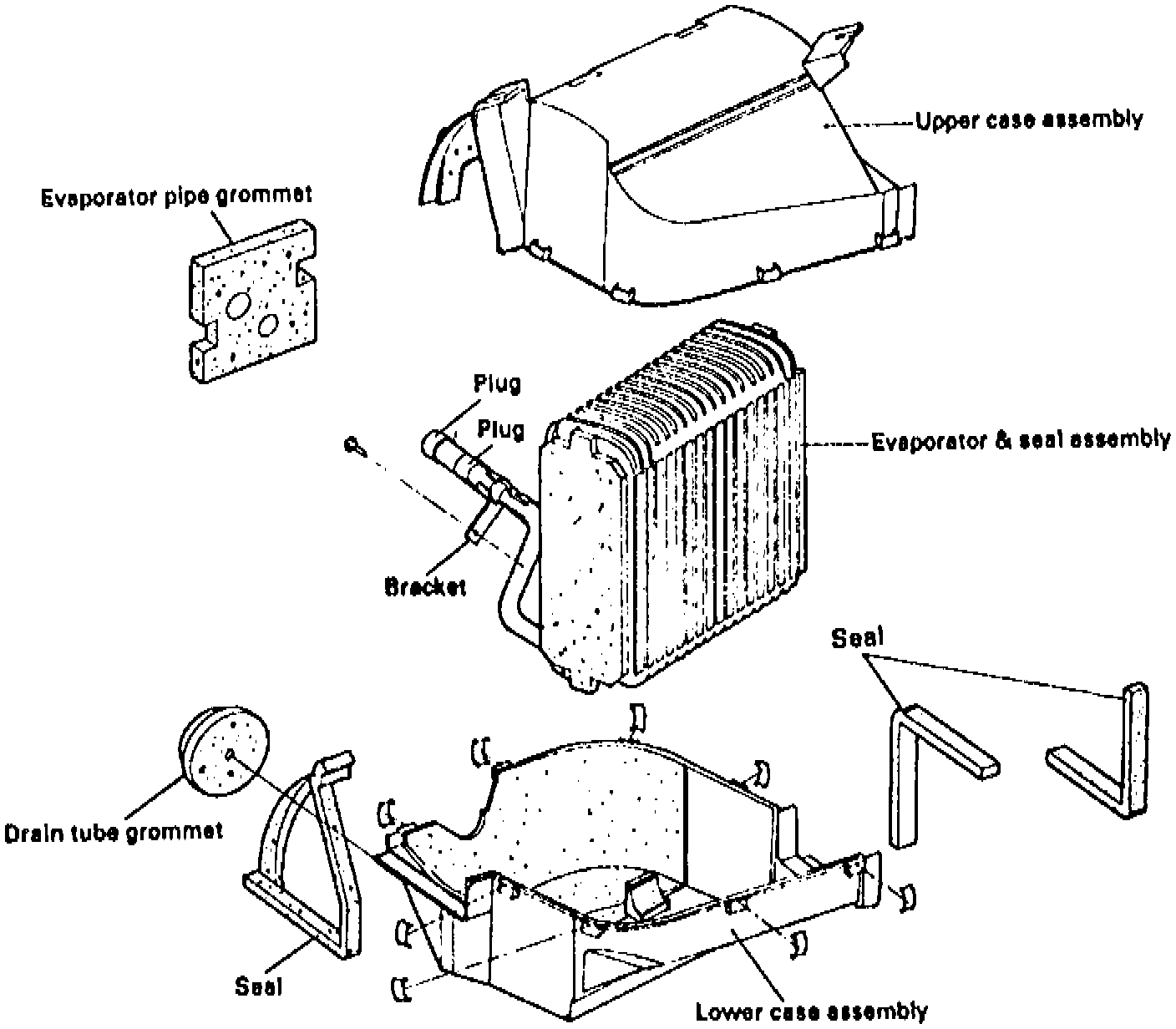

Fig. 14 Evaporator Case & Core:

5. Remove blower assembly, evaporator assembly and evaporator, Fig. 14.
6. Reverse procedure to install.
