Engine Mount: Service and Repair

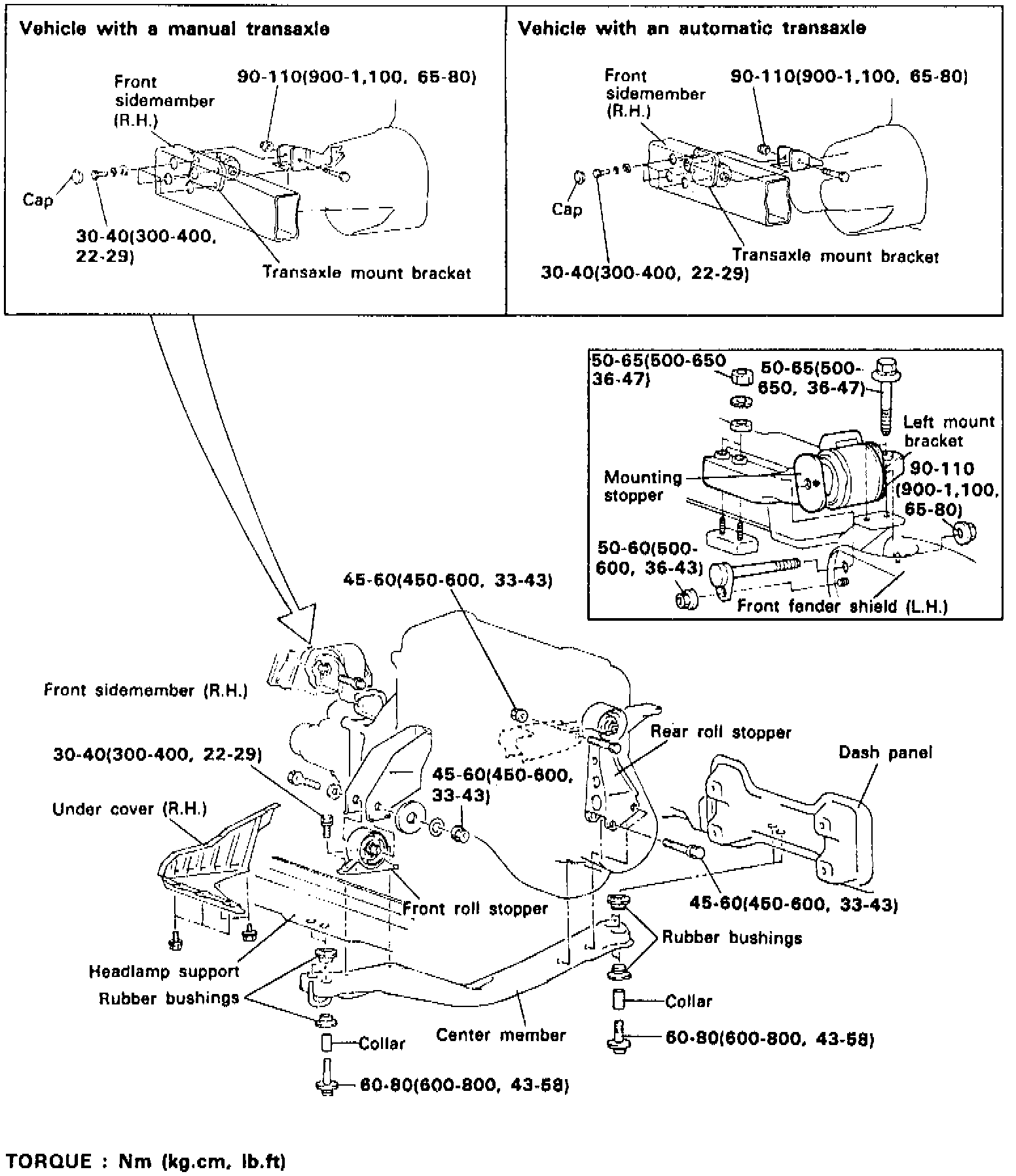

Fig. 1 Engine Mounting:





Fig. 2 Roll Rod Mounting:





Refer to Fig. 1 and 2 for engine mount replacement.
