Tool - Piston Pin Installer/Remover Applications

Group: SPECIAL SERVICE TOOLS
Number: 94-09-001
Date: FEBRUARY, 1994
Model: ALL

Subject:
PISTON PIN INSTALLER & REMOVER APPLICATION CHART

REVISION OF TSB 93-09-002 TO PROVIDE CORRECT PART NUMBERS

This TSB shows the Special Service Tool applications for the removal and installation of the Piston Pins.

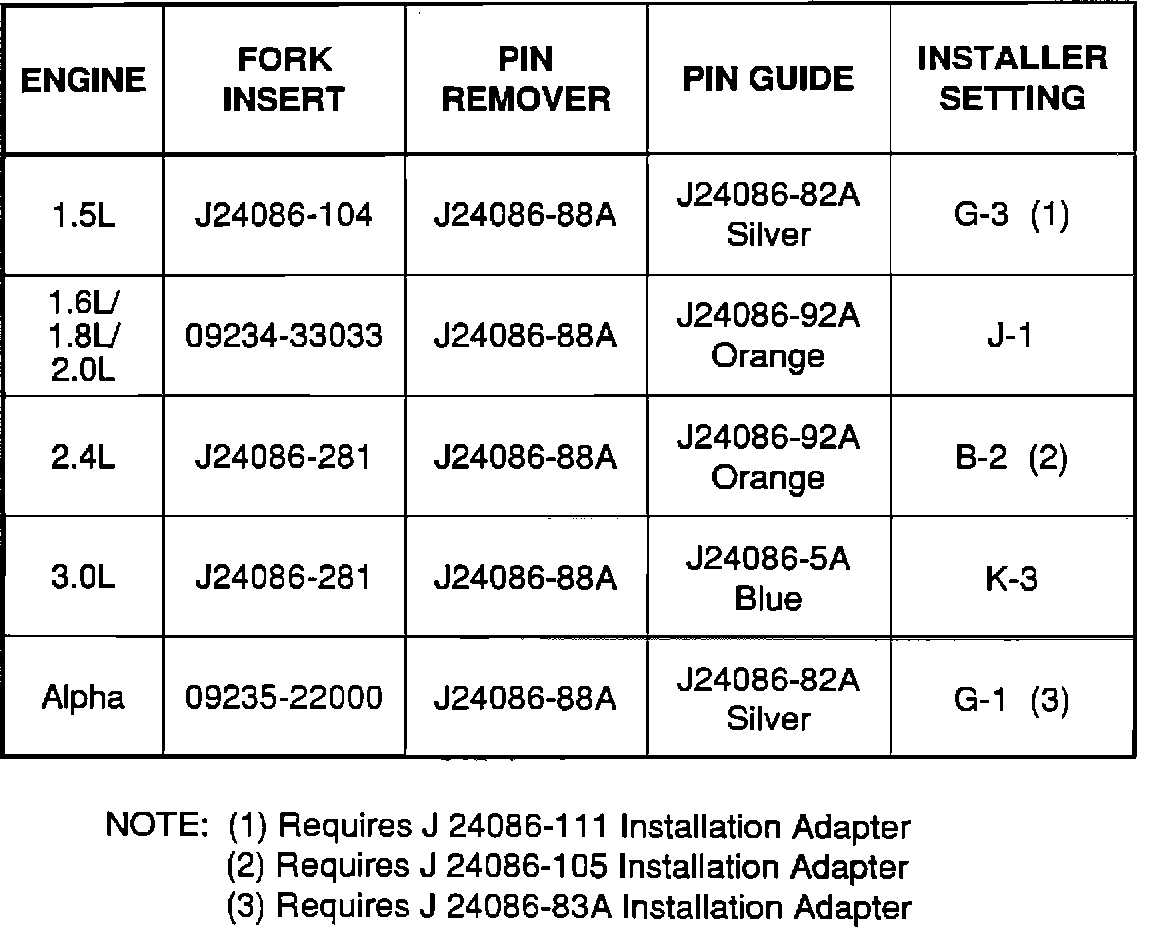

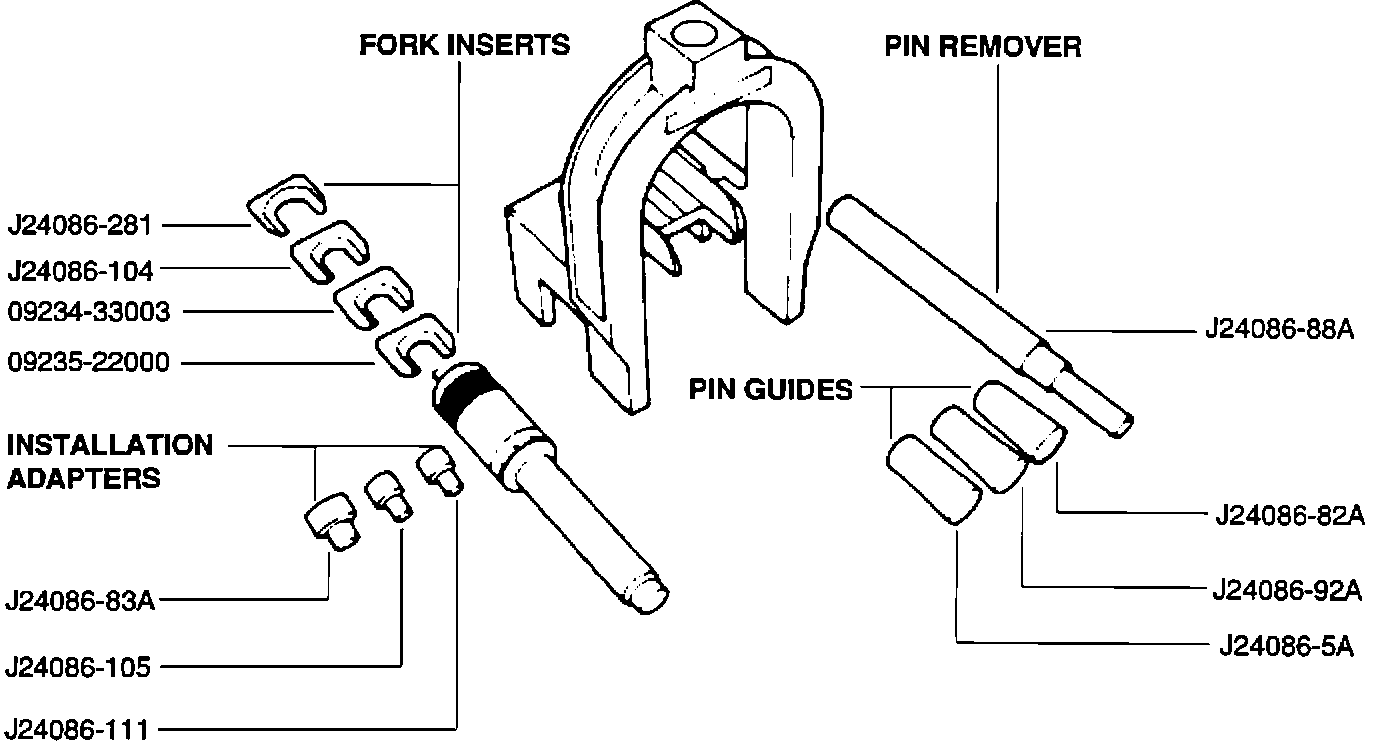

APPLICATION CHART FOR SPECIAL SERVICE TOOL 09234-33001 (J38074) PISTON PIN REMOVER AND REPLACER SET
