Temperature Gauge: Testing and Inspection

1. Disconnect wiring connector from water temperature sender in engine compartment.

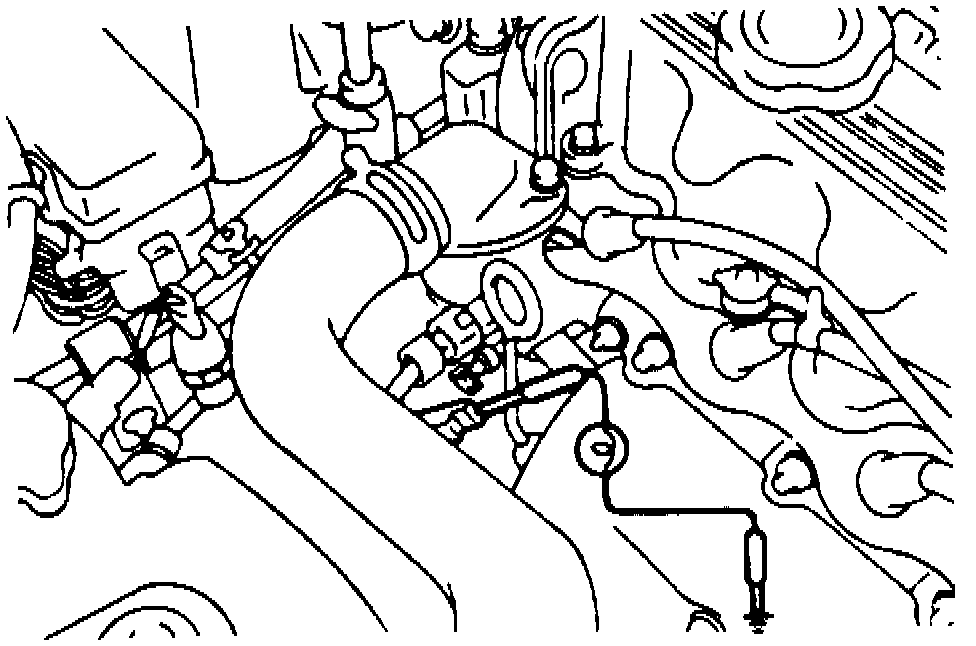

Fig. 3 Water Temperature Gauge Inspection:

2. Using a 12V, 3.4W bulb, Fig. 3, ground harness side connector.
3. Turn ignition key to On position.
4. Ensure test bulb flashes and indicator moves.
