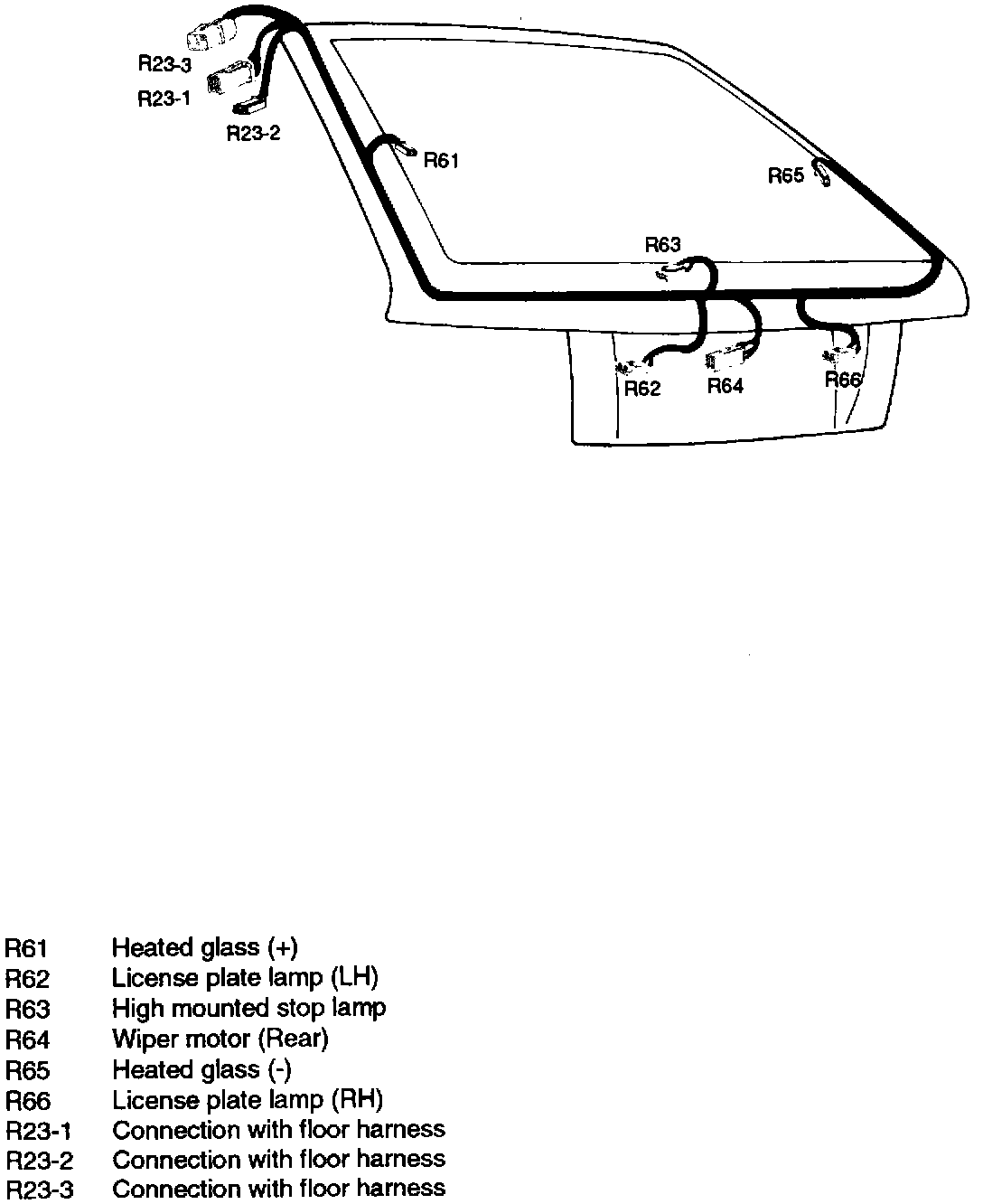

Trunk Room and Trunk Lid Harness

Trunk Lid Wiring Harness:

R61 Heated glass (+)
R62 License plate lamp (LH)
R63 High mounted stop lamp
R64 Wiper motor (Rear)
R65 Heated glass (-)
R66 License plate lamp (RH)
R23-1 Connection with floor harness
R23-2 Connection with floor harness
R23-3 Connection with floor harness
