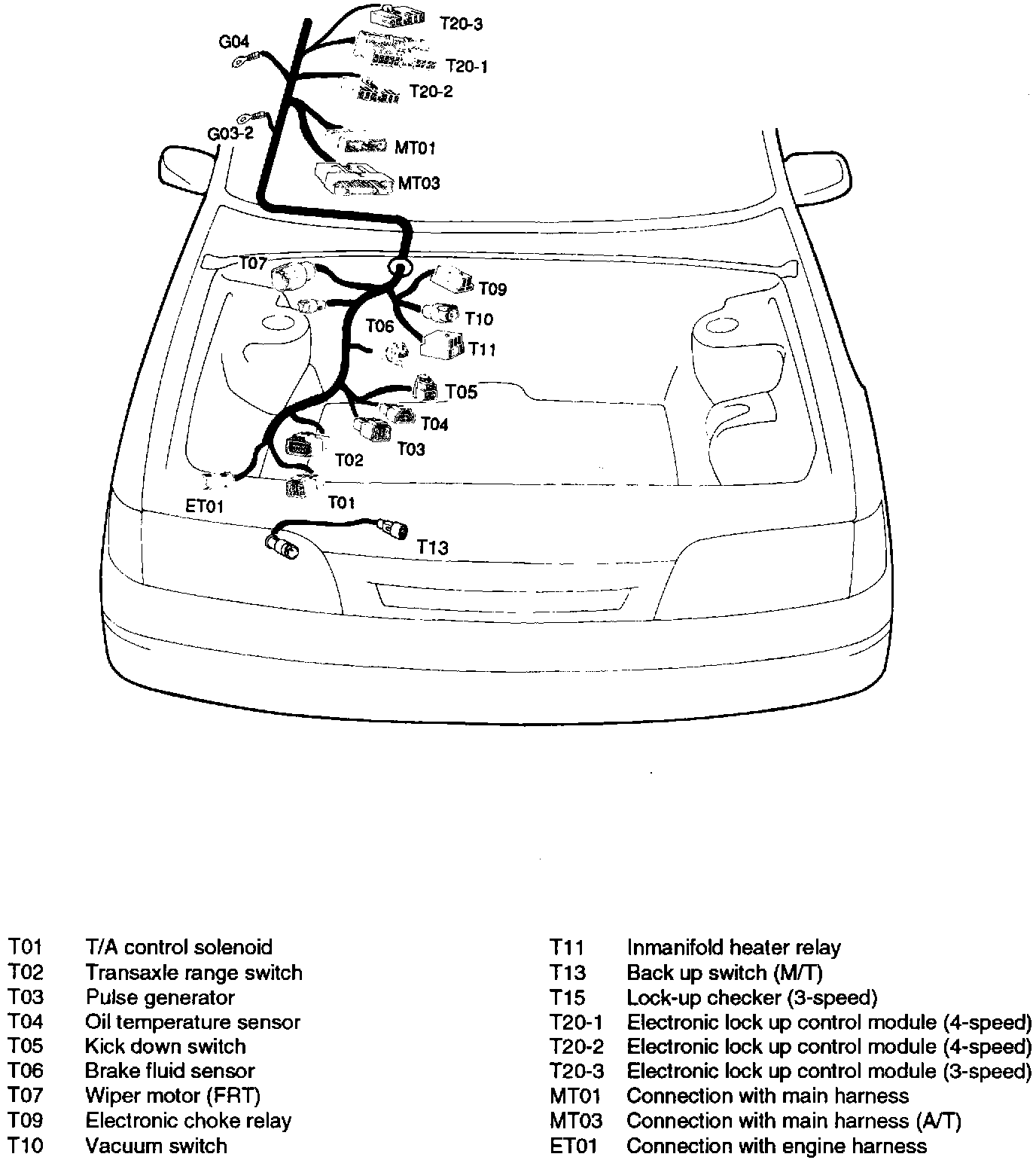

T/A Control Wiring Harness

T/A Control Wiring Harness:

T01 T/A control solenoid
T02 Transaxle range switch
T03 Pulse generator
T04 Oil temperature sensor
T05 Kick down switch
T06 Brake fluid sensor
T07 Wiper motor (FRT)
T09 Electronic choke relay
T10 Vacuum switch
T11 Inmanifold heater relay
T13 Back up switch (M/T)
T15 Lock-up checker (3-speed)
T20-1 Electronic lock up control module (4-speed)
T20-2 Electronic lock up control module (4-speed)
T20-3 Electronic lock up control module (3-speed)
MT01 Connection with main harness
MT03 Connection with main harness (A/T)
ET01 Connection with engine harness
