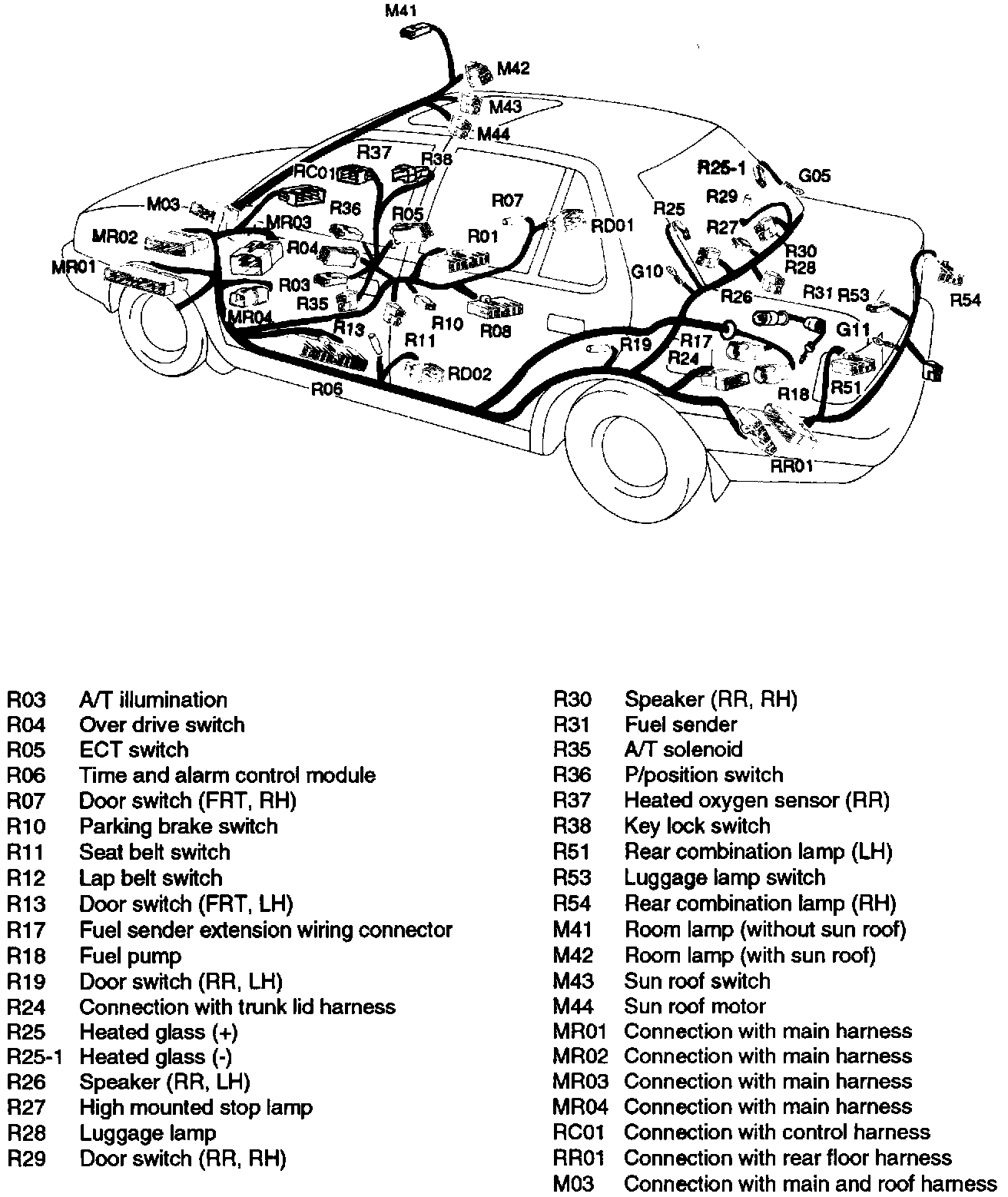

Floor Wiring Harness (4 Door)

Floor Wiring Harness (4 Door):

R03 A/T illumination
R04 Over drive switch
R05 ECT switch
R06 Time and alarm control module
R07 Door switch (FRT, RH)
R10 Parking brake switch
R11 Seat belt switch
R12 Lap belt switch
R13 Door switch (FRT, LH)
R17 Fuel sender extension wiring connector
R18 Fuel pump
R19 Door switch (RR, LH)
R24 Connection with trunk lid harness
R25 Heated glass (+)
R25-1 Heated glass (-)
R26 Speaker (RR, LH)
R27 High mounted stop lamp
R28 Luggage lamp
R29 Door switch (RR, RH)
R30 Speaker (RR, RH)
R31 Fuel sender
R35 Air solenoid
R36 P/position switch
R37 Heated oxygen sensor (RR)
R38 Key lock switch
R51 Rear combination lamp (LH)
R53 Luggage lamp switch
R54 Rear combination lamp (RH)
M41 Room lamp (without sun roof)
M42 Room lamp (with sun roof)
M43 Sun roof switch
M44 Sun roof motor
MR01 Connection with main harness
MR02 Connection with main harness
MR03 Connection with main harness
MR04 Connection with main harness
RC01 Connection with control harness
RR01 Connection with rear floor harness
M03 Connection with main and roof hamess
