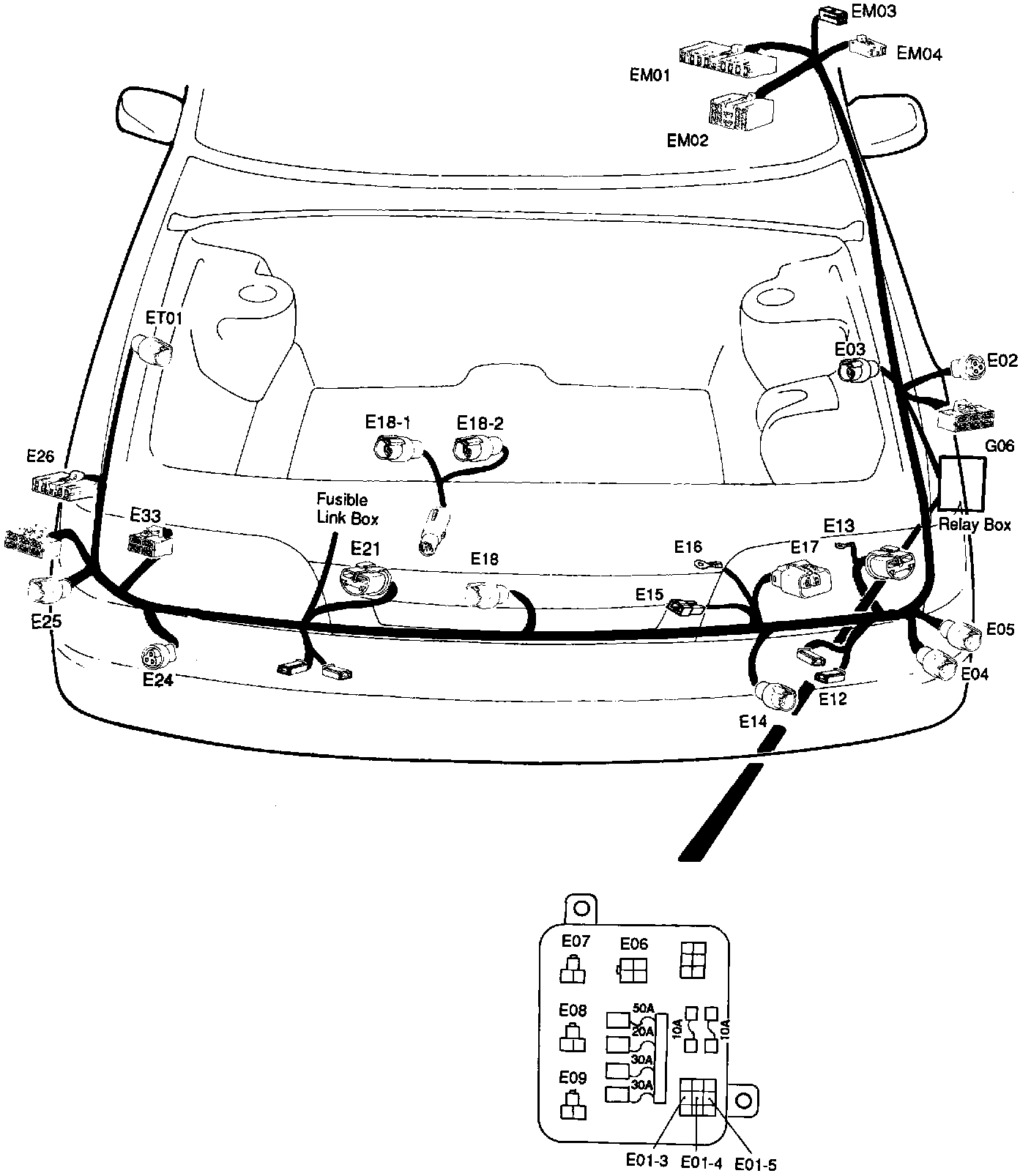

Engine Harness

Engine Wiring Harness:

E01-3 Joint Connector(Ignition)
E01-4 Joint Connector (Head Lamp) (Low)
E01-5 Joint Connector (Head Lamp) (High)
E02 Turn Signal Lamp (LH)
E03 Side Marker Lamp (LH)
E04 Washer Motor (Front)
E05 Washer Motor (Rear)
E06 Head Lamp Relay
E07 Condenser Fan Relay
E08 Radiator Fan Relay (LOW)
E09 Radiator Fan Relay (HIGH)
E10 Head Lamp (LH)
E12 Horn (LH)
E13 Power Steering Switch
E14 Condenser Fan
E15 Oil Pressure Switch
E16 Generator (B+)
E17 Generator (S or L)
E18 Radiator Fan
E18-1 Thermo Switch
E18-2 Register
E20 Horn (RH)
E21 Head Lamp (RH)
E24 Turn Signal Lamp (RH)
E25 Side Marker Lamp (RH)
E26 Daytime Running Light Module (Canada)
E33 A/C Relay
ET01 Back-up Switch Extension Harness (M/T)
ET02 Connection With T/A Control Harness (A/T)
EM01 Connection With Main Harness
EM02 Connection With Main Harness
EMO3 Connection With Main Harness
EMO4 Connection With Main Harness (DRL)
