ECM Wiring Harness

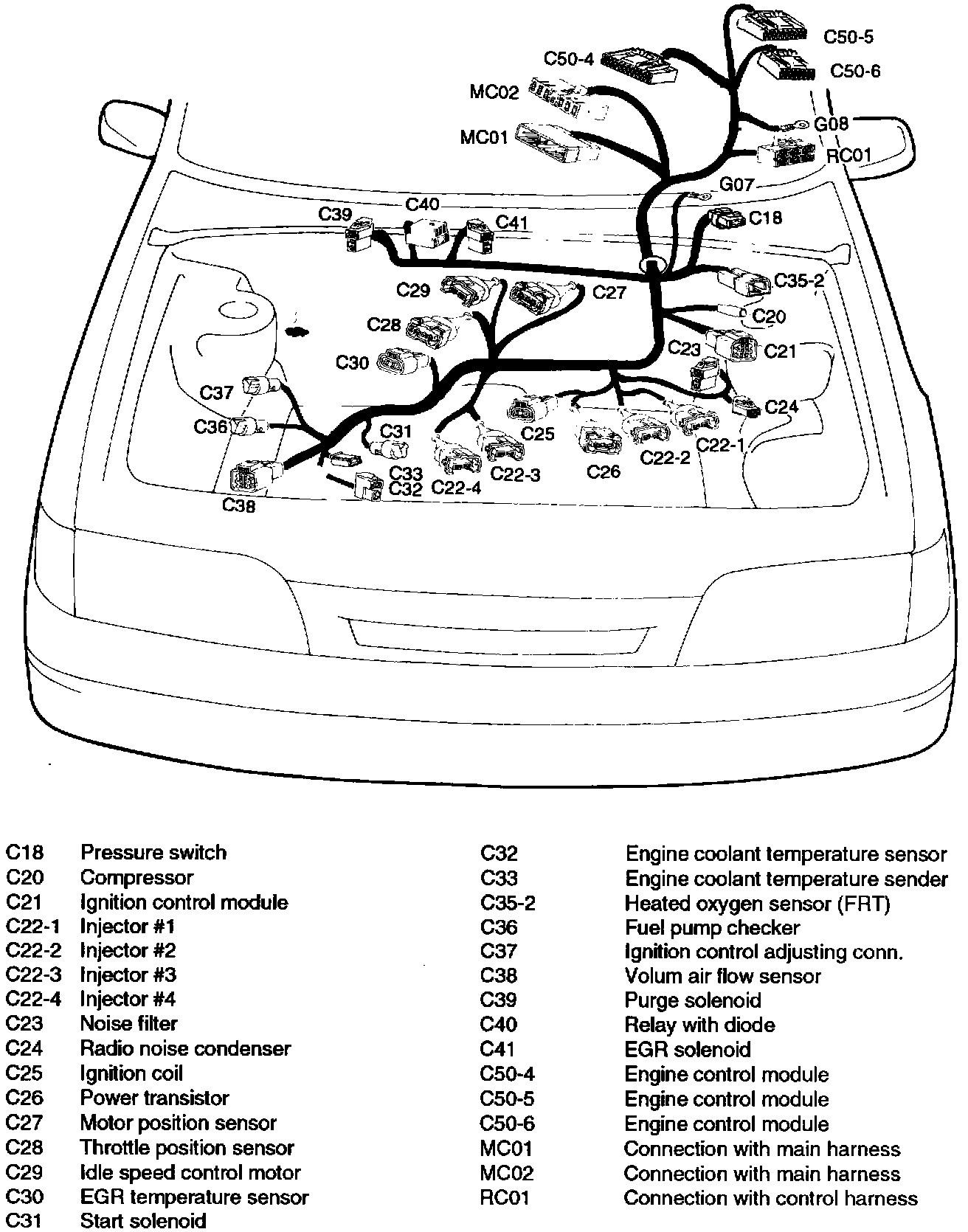

ECM Wiring Harness:





C18 Pressure switch
C20 Compressor
C21 Ignition control module
C22-1 Injector #1
C22-2 Injector #2
C22-3 Injector #3
C22-4 Injector #4
C23 Noise filter
C24 Radio noise condenser
C25 Ignition coil
C26 Power transistor
C27 Motor position sensor
C28 Throttle position sensor
C29 Idle speed control motor
C30 EGR temperature sensor
C31 Start solenoid
C32 Engine coolant temperature sensor
C33 Engine coolant temperature sender
C35-2 Heated oxygen sensor (FRT)
C36 Fuel pump checker
C37 Ignition control adjusting conn.
C38 Volume air flow sensor
C39 Purge solenoid
C40 Relay with diode
C41 EGR solenoid
C50-4 Engine control module
C50-5 Engine control module
C50-6 Engine control module
MC01 Connection with main harness
MC02 Connection with main harness
RC01 Connection with control harness
