Door Harness (Rear)

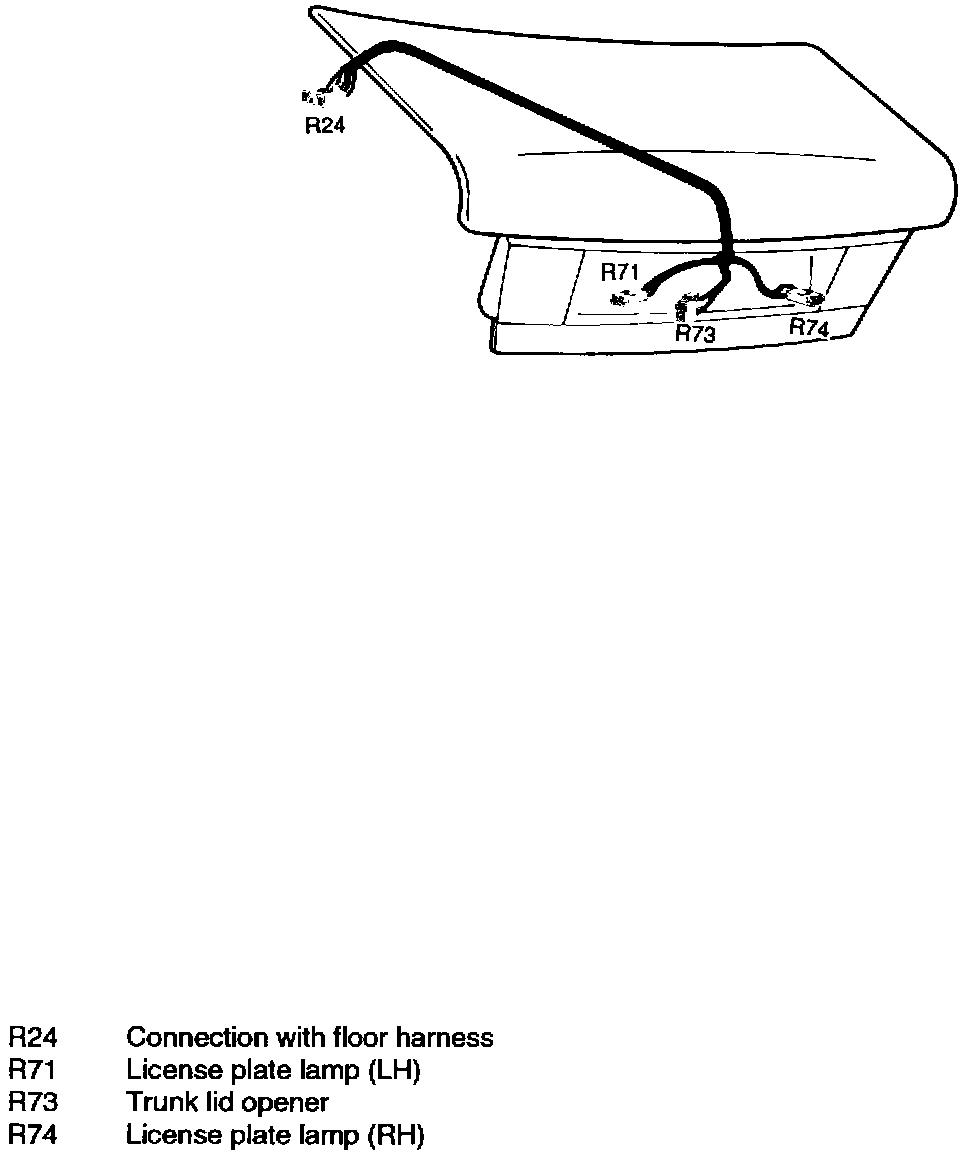

Rear Door Harness:





R24 Connection with floor harness
R71 License plate lamp (LH)
R73 Trunk lid opener
R74 License plate lamp (RH)
