Home >> Hyundai >> 1994 >> Excel L4-1468cc 1.5L SOHC (8 VALVE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio, Stereo, and Compact Disc >> Sound System (For U.S.A.)

Sound System (For U.S.A.)

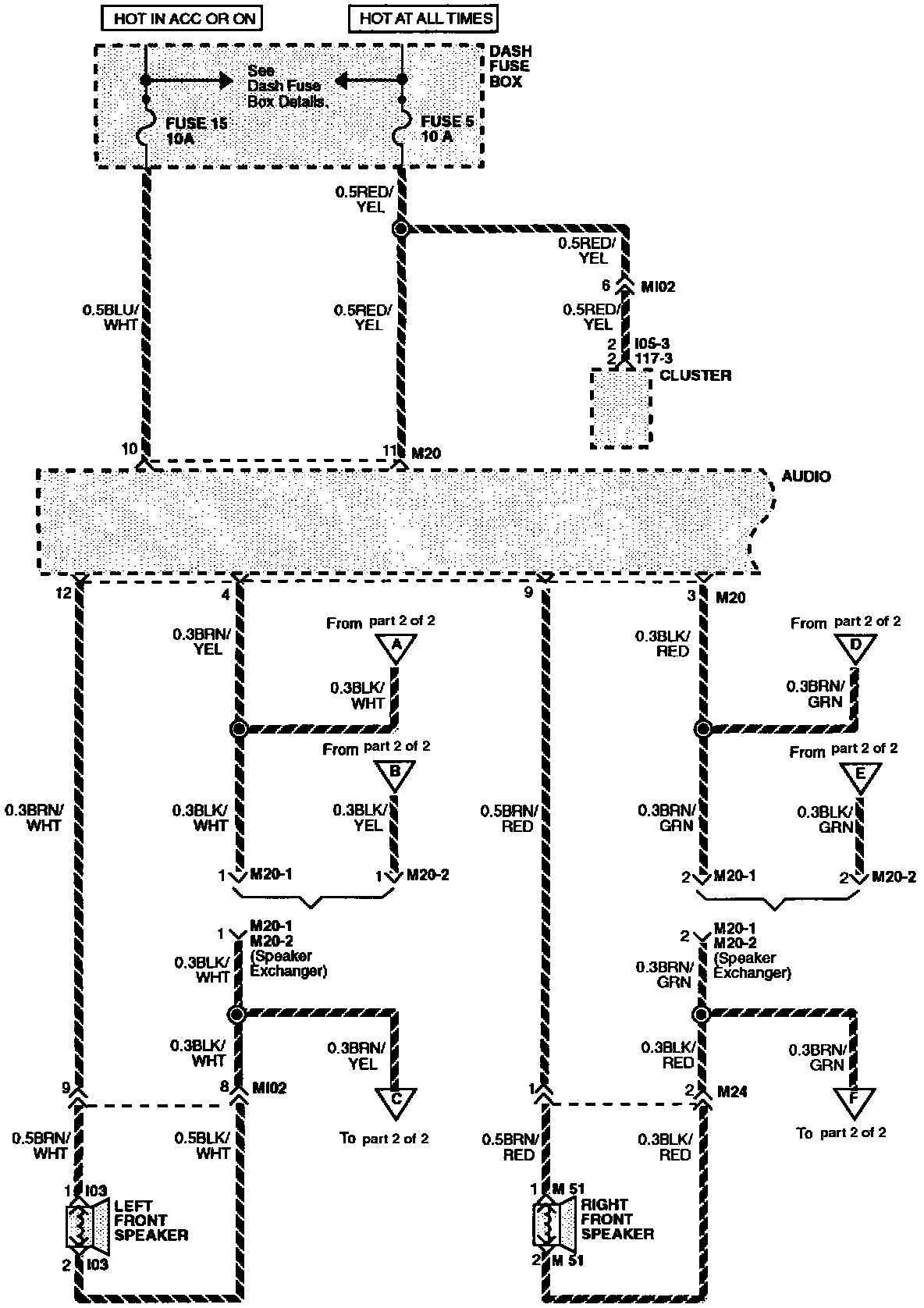

Sound System (For U.S.A.) (Part 1 Of 2):

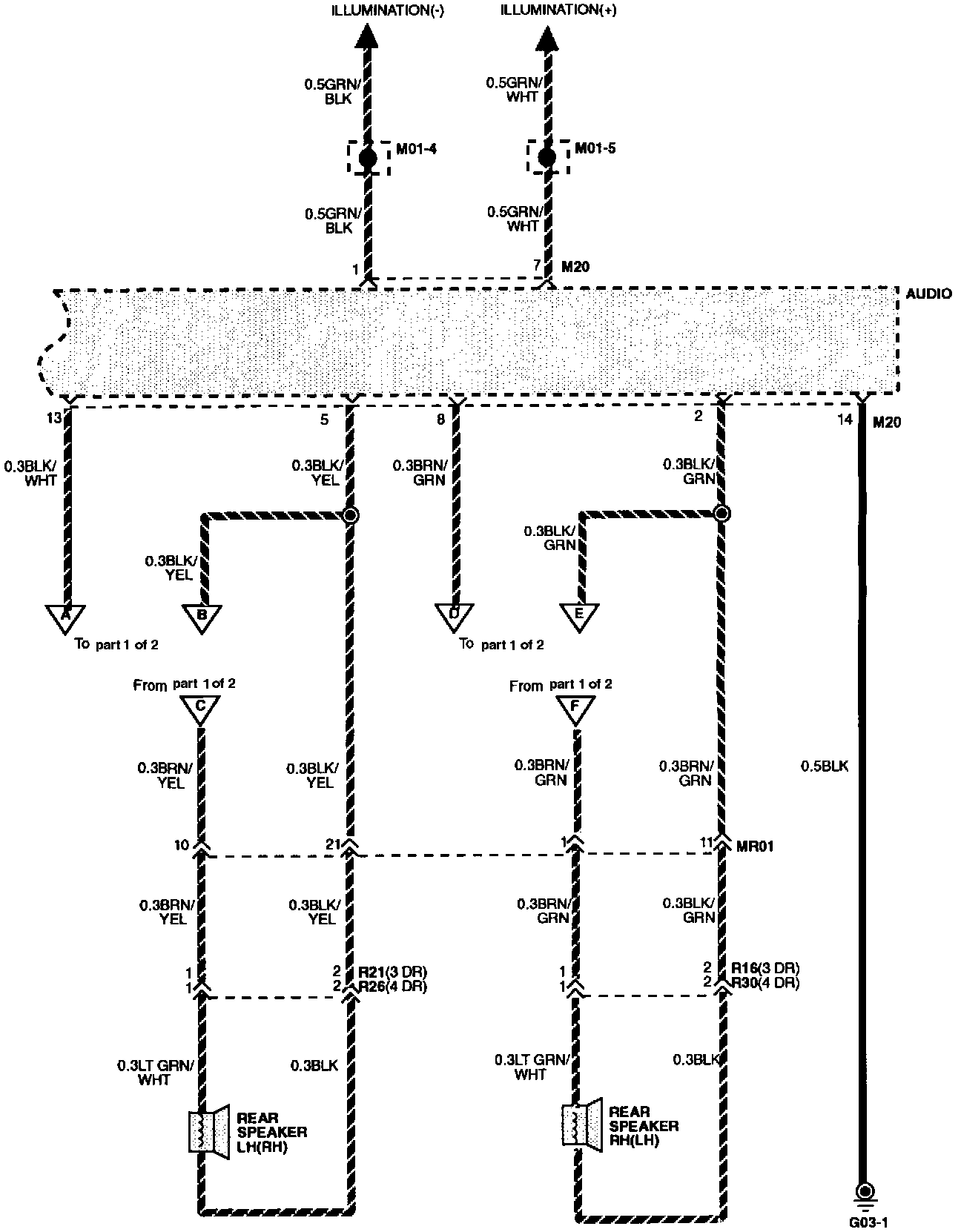

Sound System (For U.S.A.) (Part 2 Of 2):
