Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>
Dash Console and Switch Lamps
Dash Console and Switch Lamps

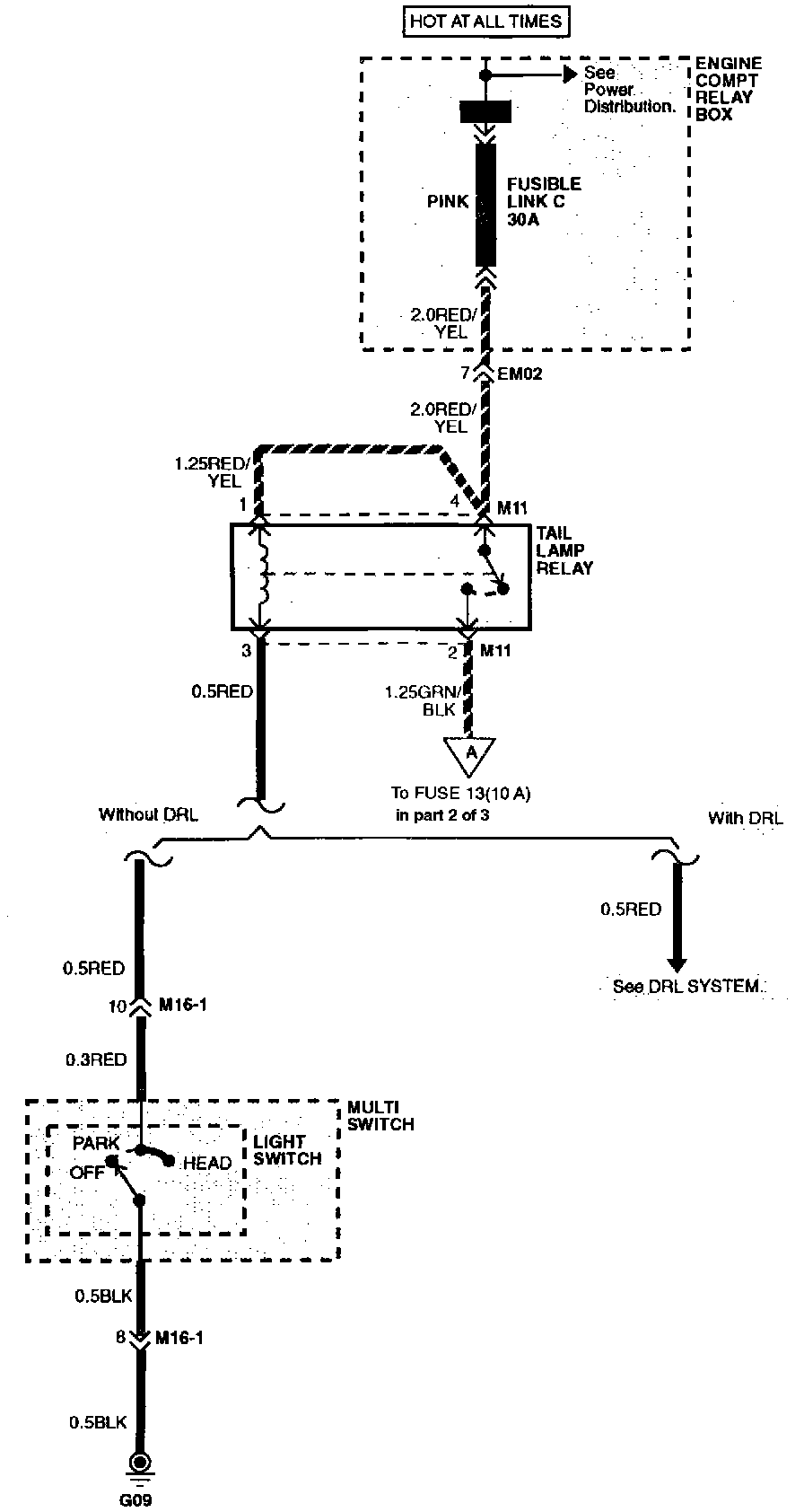

Dash, Console And Switch Lamps (Part 1 Of 3):

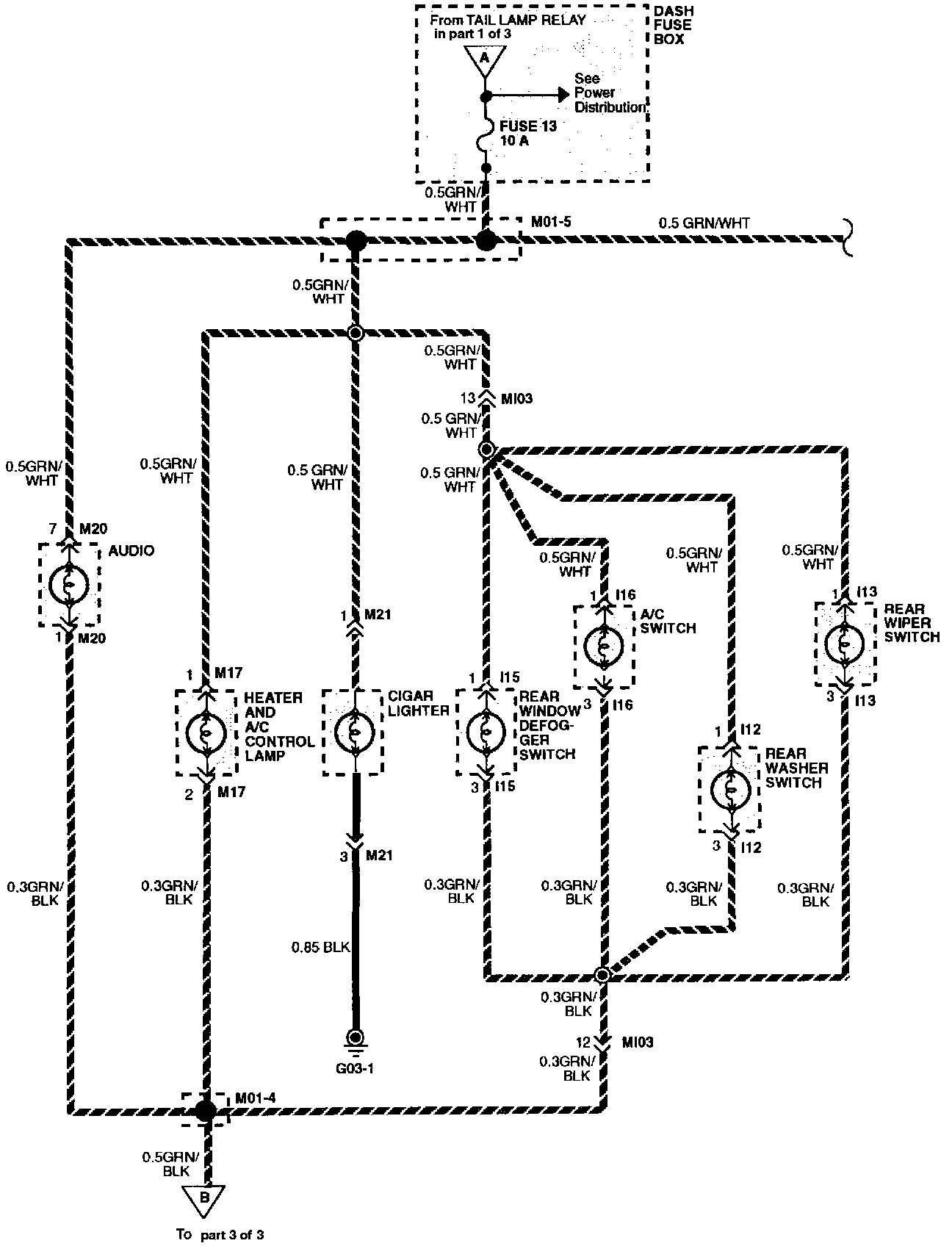

Dash, Console And Switch Lamps (Part 2 Of 3):

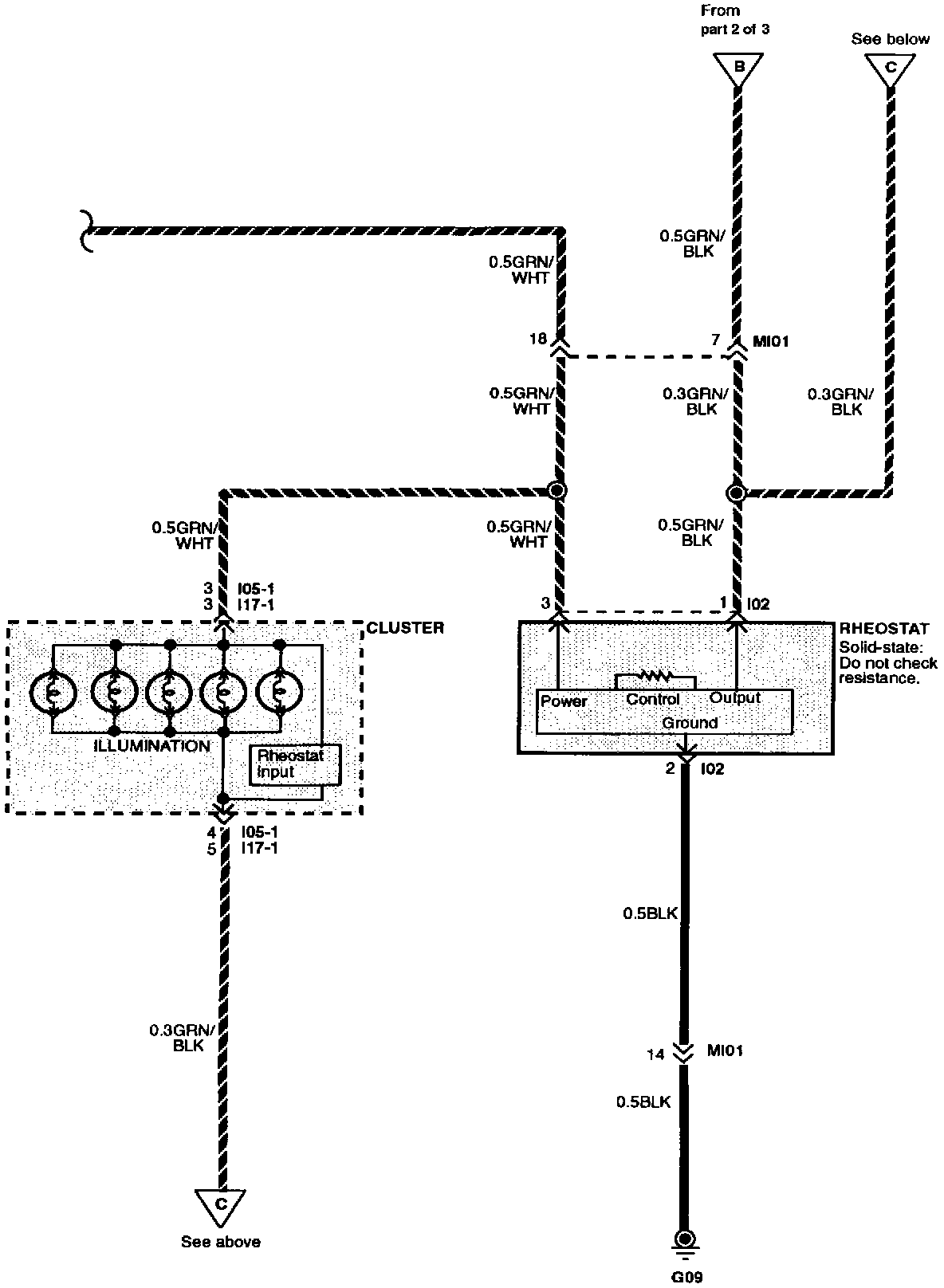

Dash, Console And Switch Lamps (Part 3 Of 3):
