System Diagram

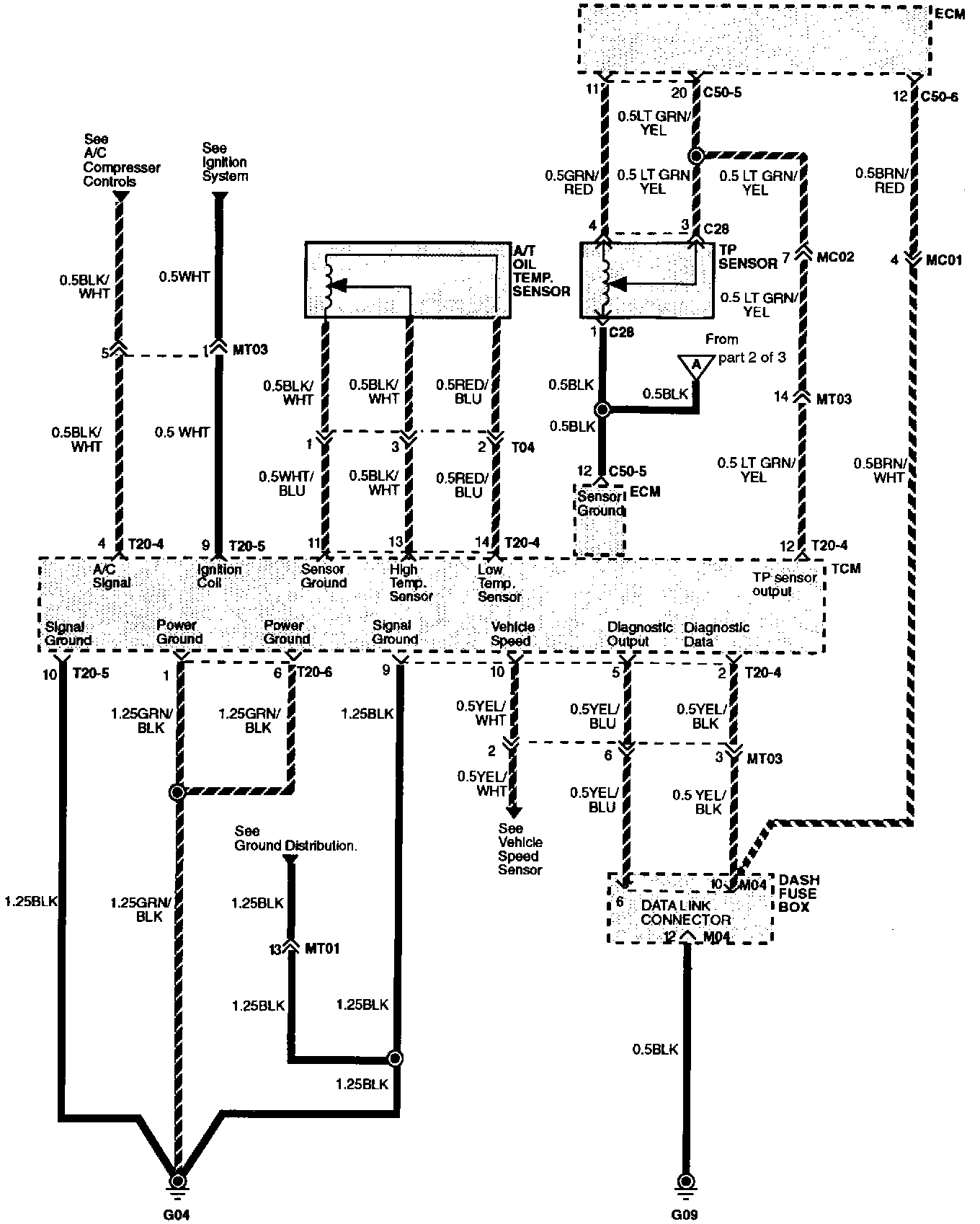

Electronic Lock Up Controls (Part 1 Of 3):

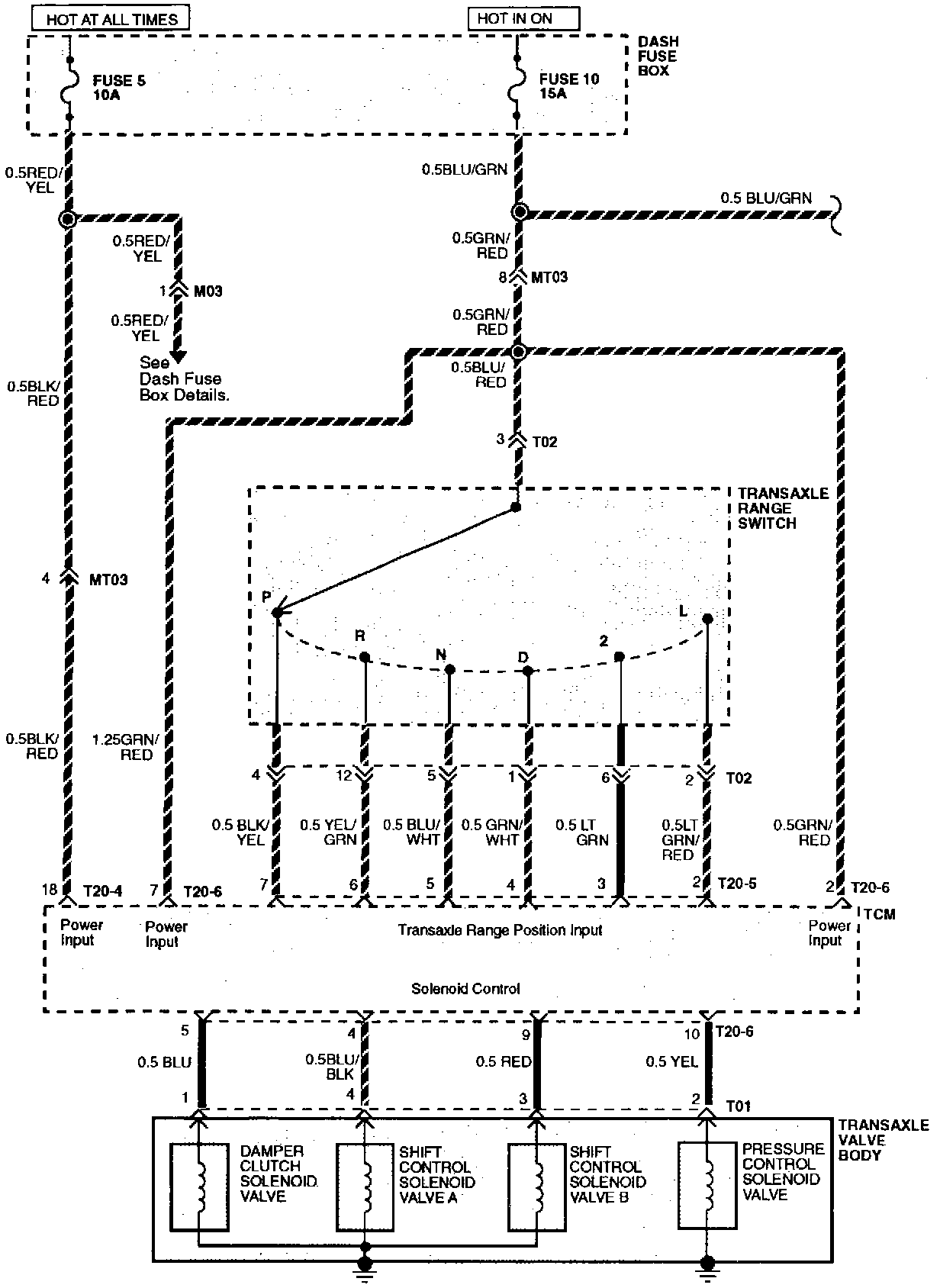

Electronic Lock Up Controls (Part 2 Of 3):

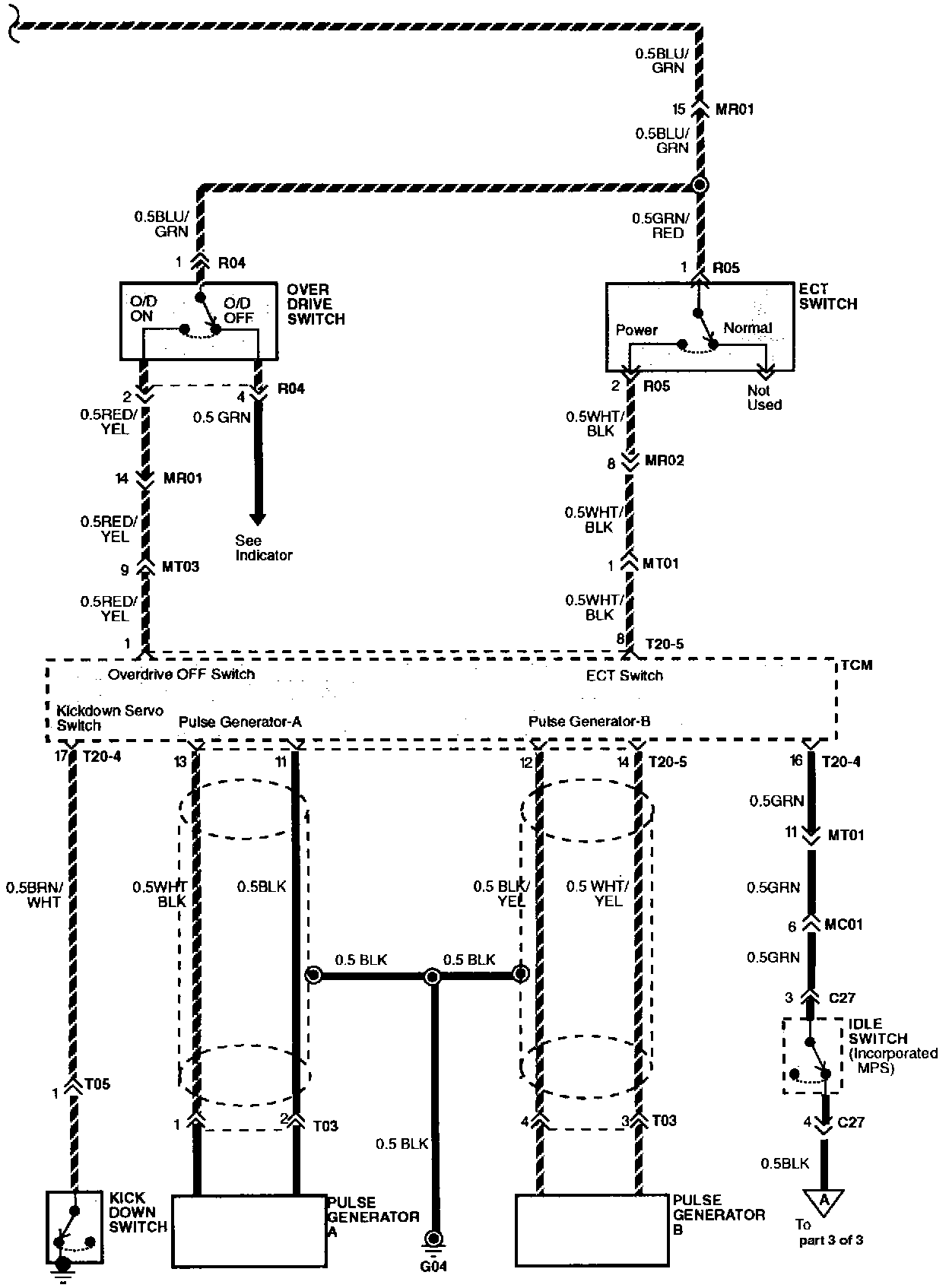

Electronic Lock Up Controls (Part 3 Of 3):
