FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Hyundai
>>
1994
>>
Excel L4-1468cc 1.5L SOHC (8 VALVE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antitheft and Alarm Systems
Antitheft and Alarm Systems

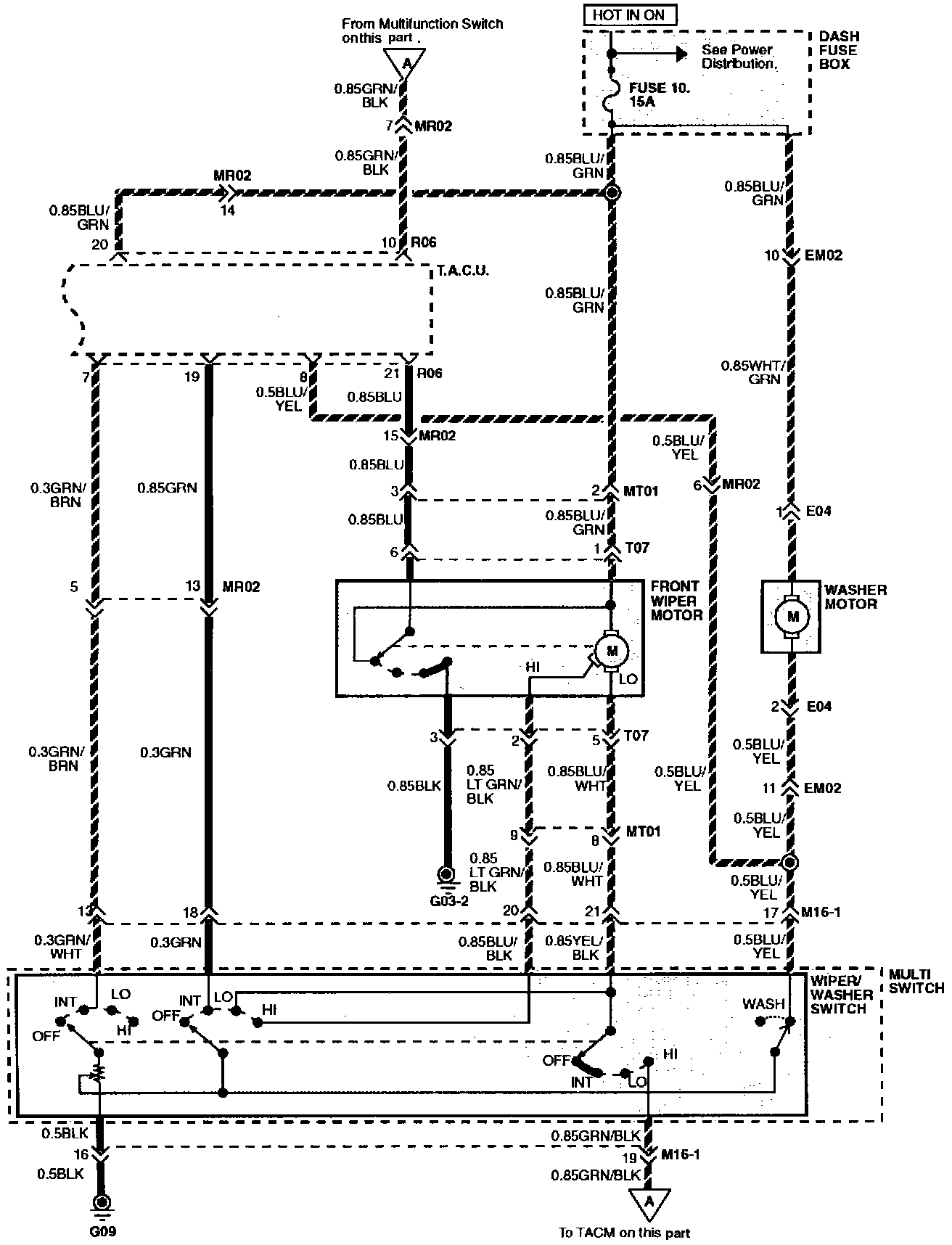

TAC (Time And Alarm Control) System (Part 1 Of 3):

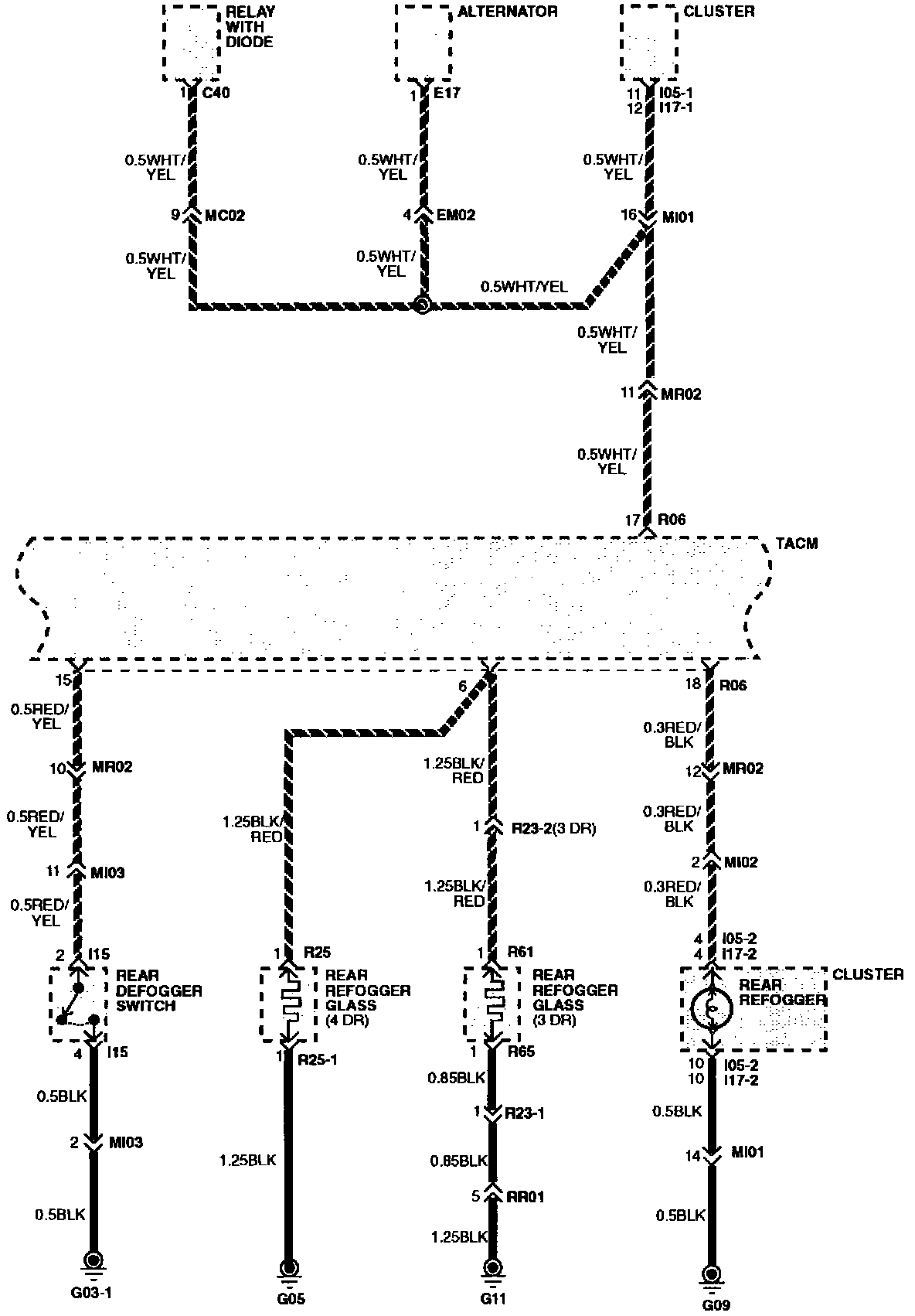

TAC (Time And Alarm Control) System (Part 2 Of 3):

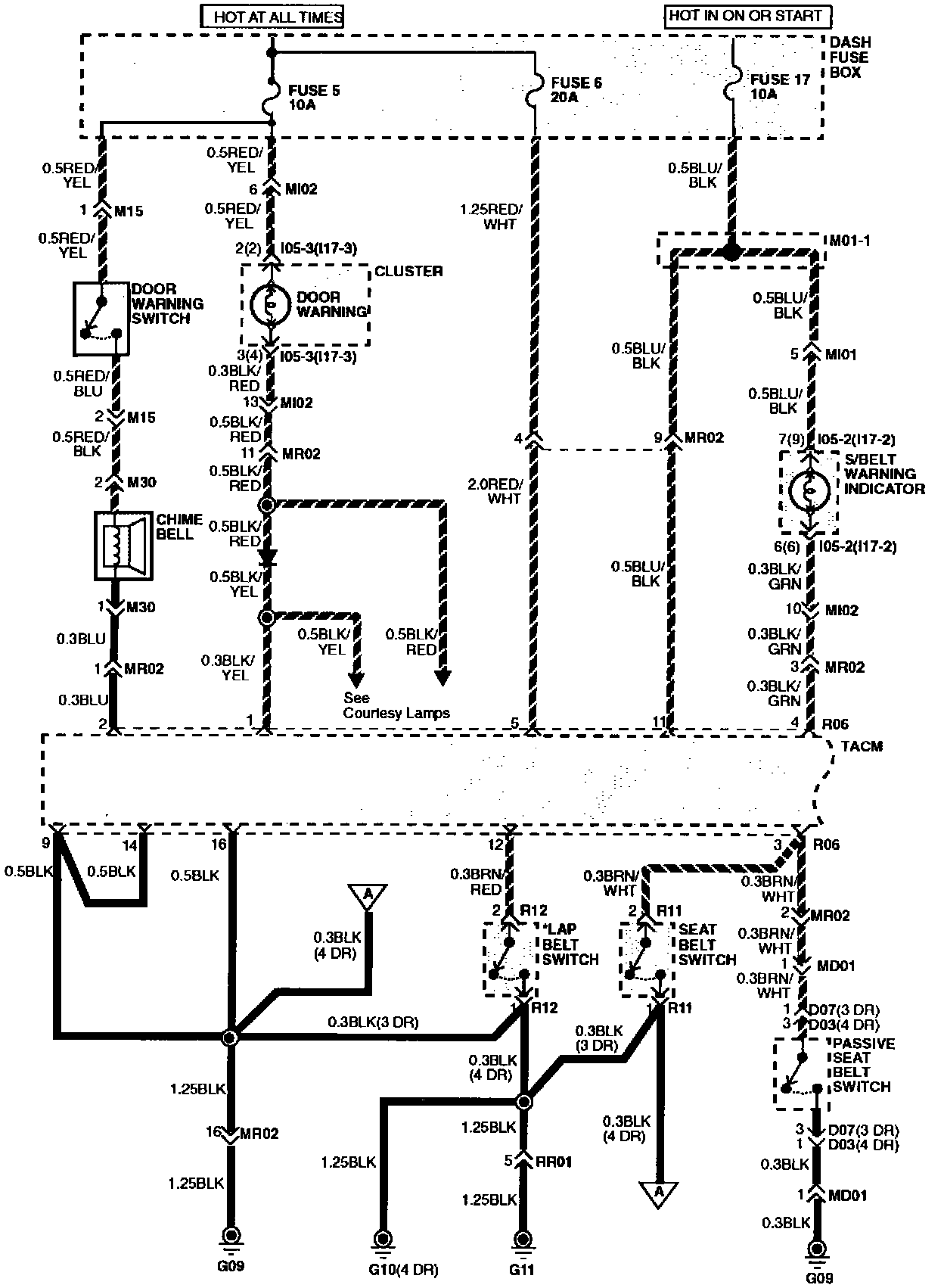

TAC (Time And Alarm Control) System (Part 3 Of 3):
