Hyundai
>>
1994
>>
Excel L4-1468cc 1.5L SOHC (8 VALVE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
>>
Automatic Transaxle and Key Lock Controls
>>

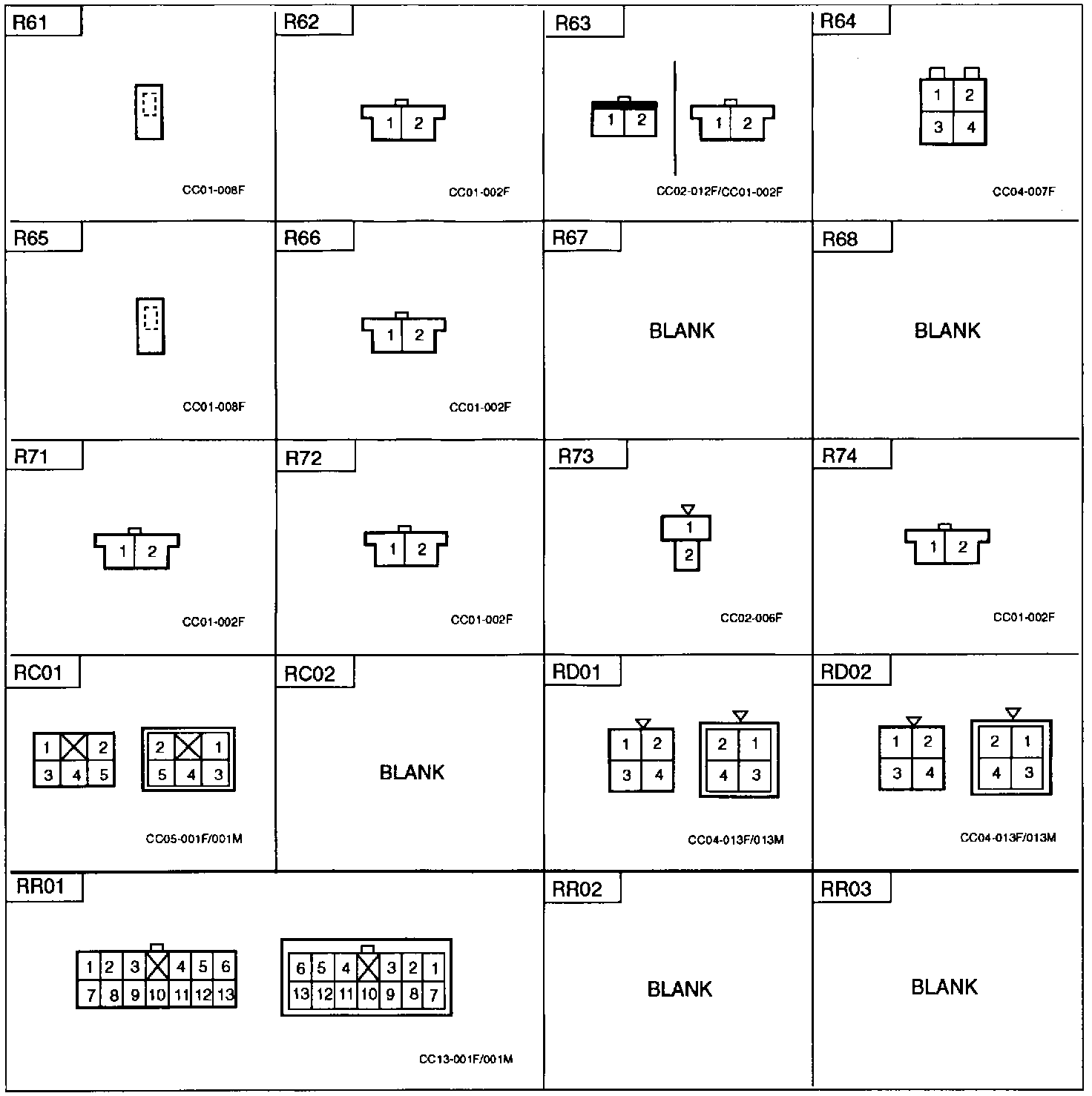

R61 - RR03
R61 - RR03
R61 To RR03:
