Park/Neutral Switch

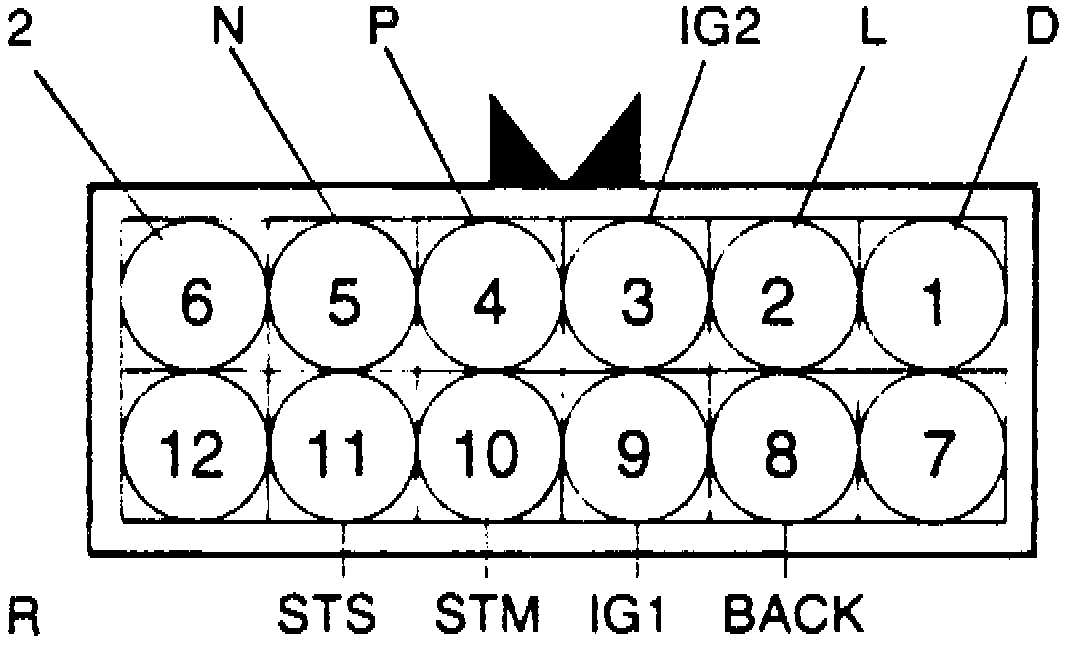

Fig. 13 P/N Position Switch Inspection:
Disconnect connector and ensure there is continuity between terminals 10 and 11 when the shift lever is moved to neutral,
Fig. 13
.
