Inhibitor Switch (N & P Positions)

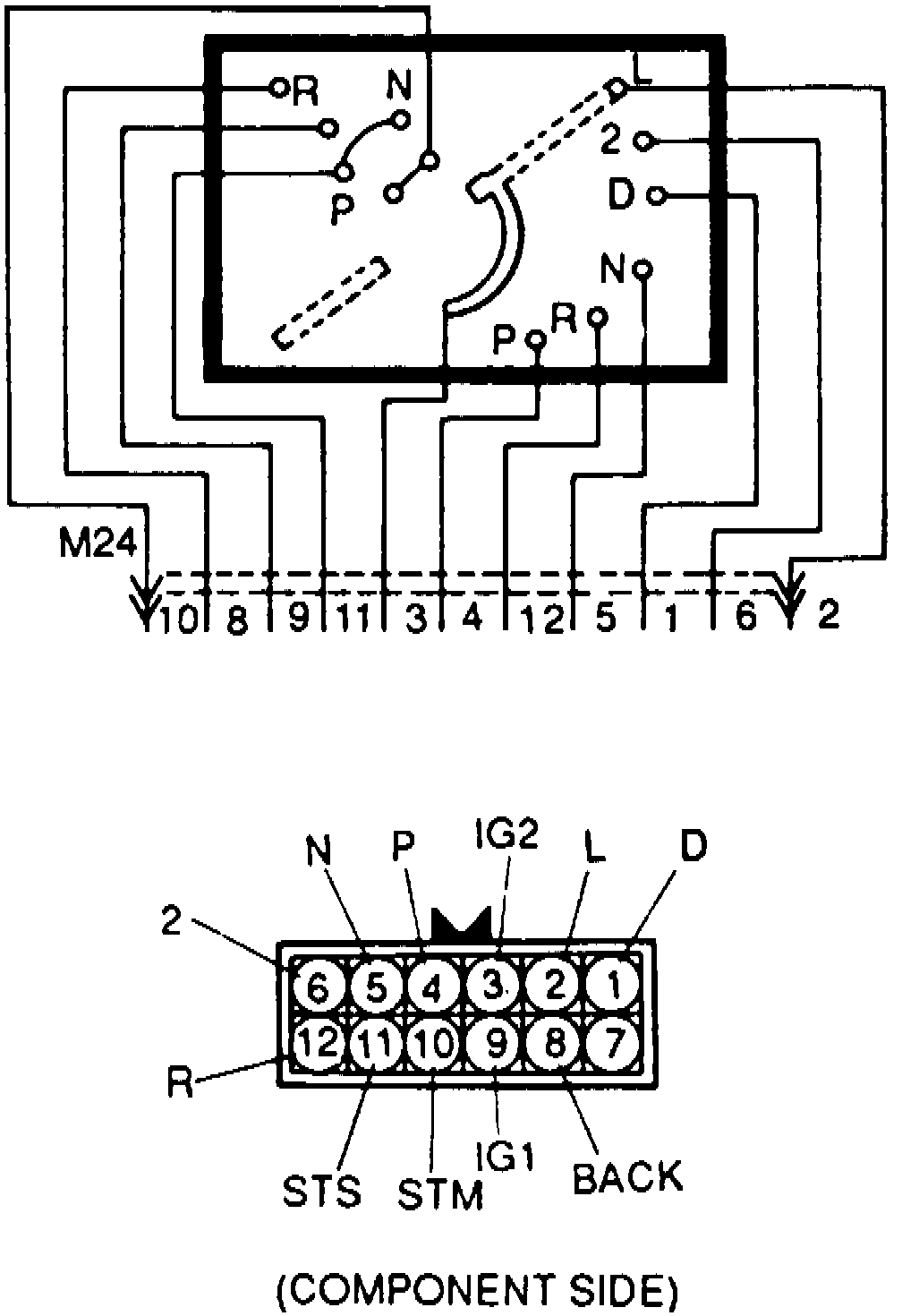

Fig. 12 Inhibitor Switch Inspection (N & P Positions):

1. Disconnect the connector, Fig. 12.
2. Check continuity between connector (E12) terminals 3 and 5, 4 and 5 with shift lever in "N" and "P" ranges.
3. If there is no continuity in either position, replace switch.
