Dashboard / Instrument Panel: Service and Repair

1. Remove steering wheel as outlined in Steering Wheel section.

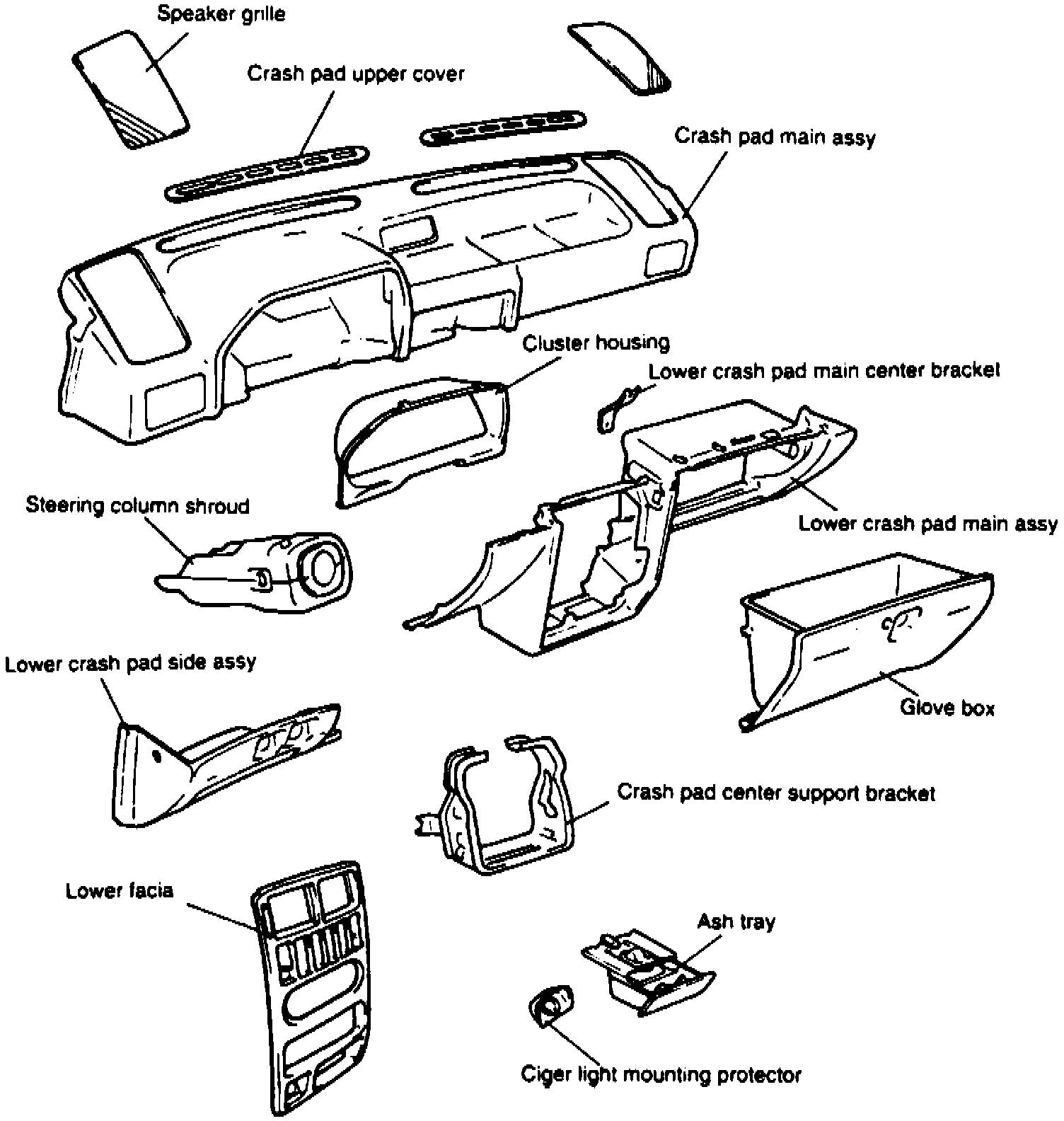

Fig. 3 Exploded View Of Dash Panel:

2. Remove three steering column lower and upper shroud retaining screws, then the upper and lower shrouds, Fig. 3.
3. Remove hood release handle mounting screws.

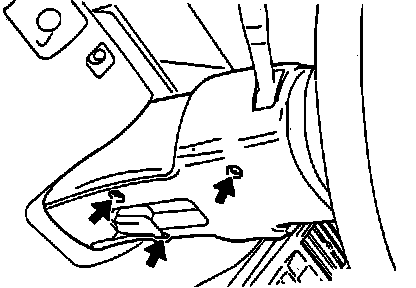

Fig. 9 Steering Column Lower/Upper Shroud:

4. Remove lower fascia assembly, radio and cassette player, then disconnect radio electrical connectors, Fig. 4.
5. Remove left side lower dash panel.
6. Remove glove compartment, then the main lower dash panel.
7. Remove cluster assembly retaining screws, then pull outward and disconnect electrical connectors.
8. Remove heater control assembly, two front speaker grilles, then the front speakers.

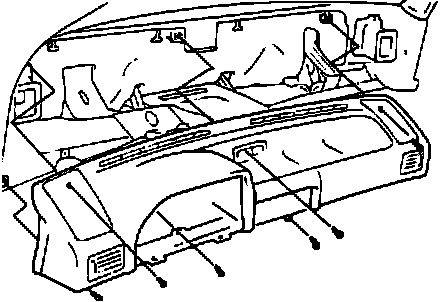

Fig. 10 Main Dash Panel:

9. Remove main dash panel, Fig. 5.
10. Reverse procedure to install.
