Home >> Hyundai >> 1994 >> Elantra L4-1595cc 1.6L DOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Cross Reference Chart

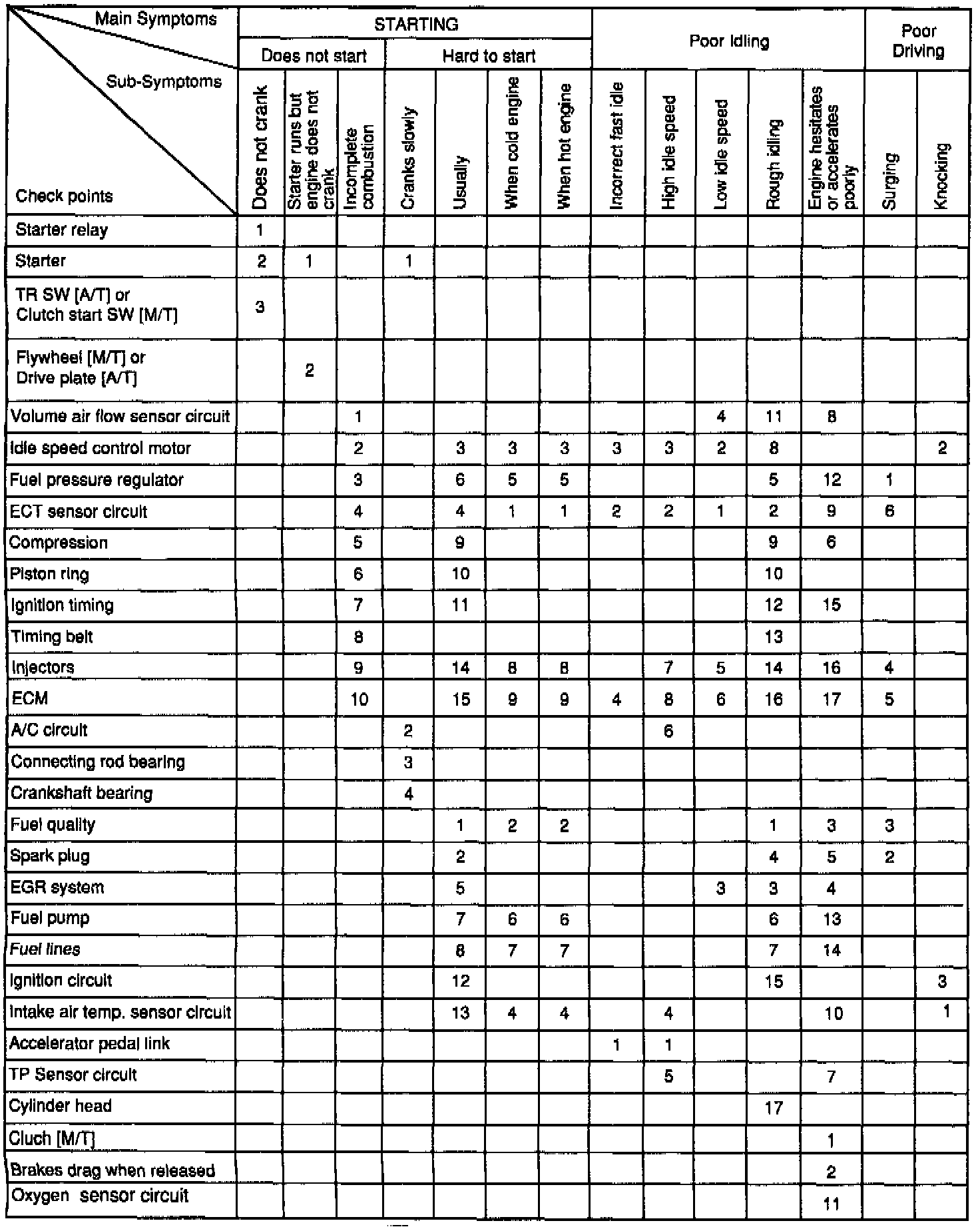

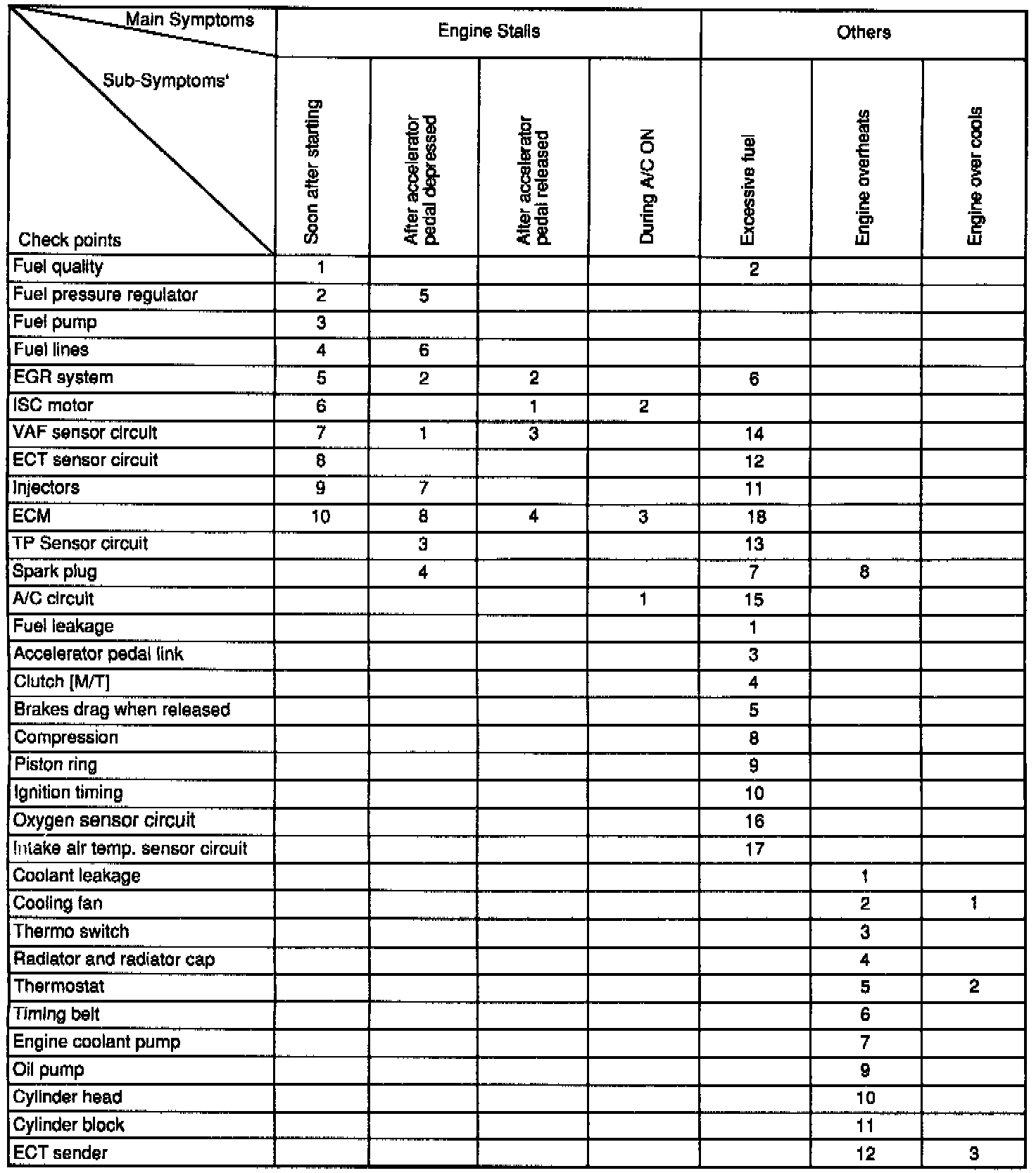

Symptom Cross Reference Chart








The numbers shown indicate checking order.
