Fluid - M/T: Service and Repair

Transaxle Oil

Oil Level Inspection

Inspect each component for evidence of leakage. Check the gear oil level by removing the filler plug. If the oil is contaminated, it is necessary to replace it with new oil.

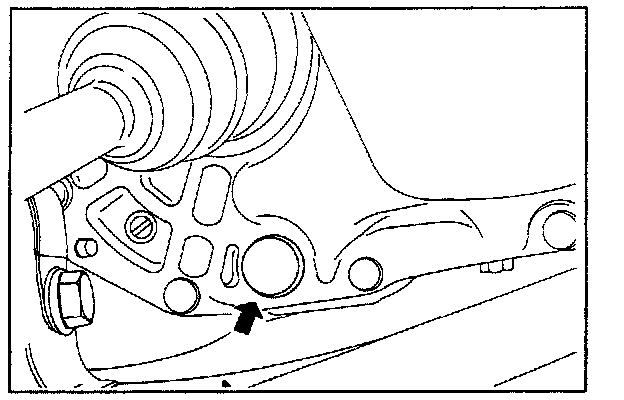

1. With the vehicle parked on a level surface, remove the drain plug and make sure that there is oil 5-9 mm (0.2-0.4 in.) below the plug opening.
2. Check that the transaxle gear oil is not noticeably dirty, and that it is of a suitable viscosity.

Replacement of Transaxle Gear Oil






1. With the vehicle parked on a level surface, remove the drain plug to drain the transaxle gear oil.
2. Replace the gasket with a new one and install the drain plug.
3. Add new oil through the drain plug, filling to a level 5-9 mm (0.2-0.4 in.) below the plug opening.

Transaxle oil total capacity:

1.8 liters (1.9 u.s.qts., 1.6 lmp.qts.) (5 speed)

1.7 liters (1.8 u.s.qts.. 1.5 lmp.qts.) (4 speed)
