Home
>>
Hyundai
>>
1993
>>
Excel L4-1468cc 1.5L SOHC (8 VALVE)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Charging System
>>
Alternator
>>
Testing and Inspection
>>
Troubleshooting
Troubleshooting

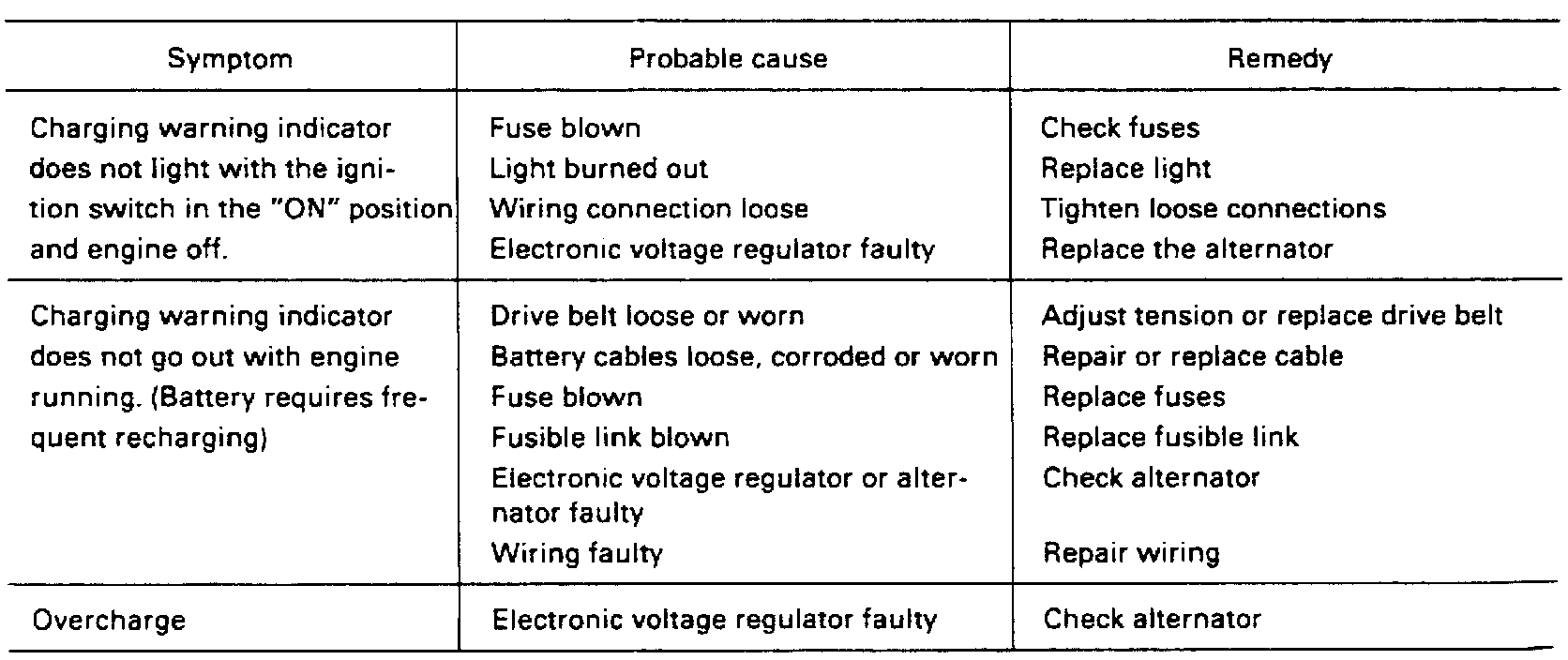

Fig. 1 Troubleshooting Procedure:
Refer to
Fig. 1
for troubleshooting procedure.
