Transmission Speed Sensor: Locations

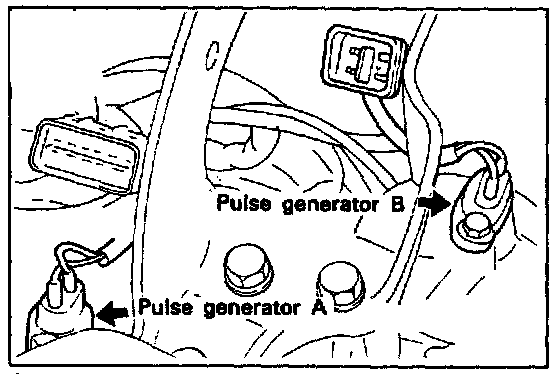

Pulse Generators "A" "B":





Located on transaxle rear housing
