Crankshaft Position Sensor
>>
Locations
>>
Federal
Federal

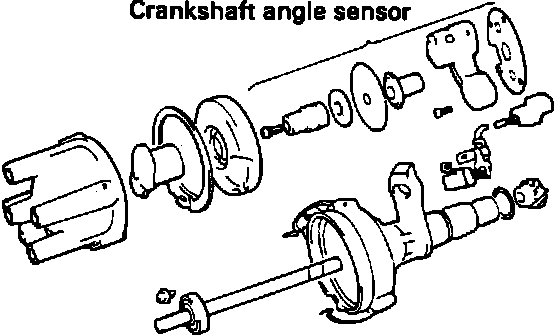

Crank Angle And Top Dead Center Sensor Location:
Built into the distributor, on the left side of the cylinder head.
