Home >> Hyundai >> 1993 >> Excel L4-1468cc 1.5L SOHC (8 VALVE) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Lighting and Horns >> Headlamp Switch >> Diagrams >> Electrical Diagrams >> USA

USA

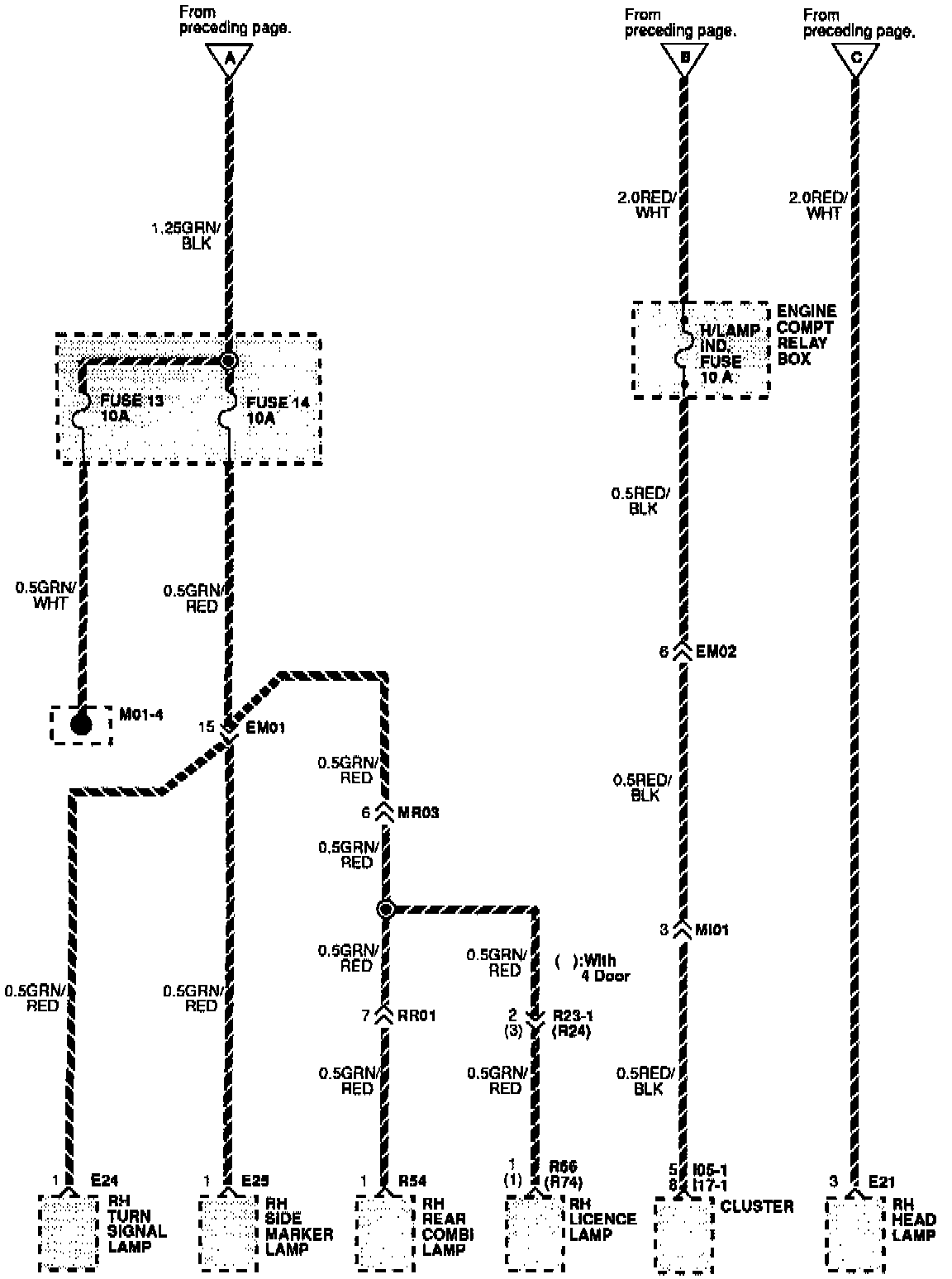

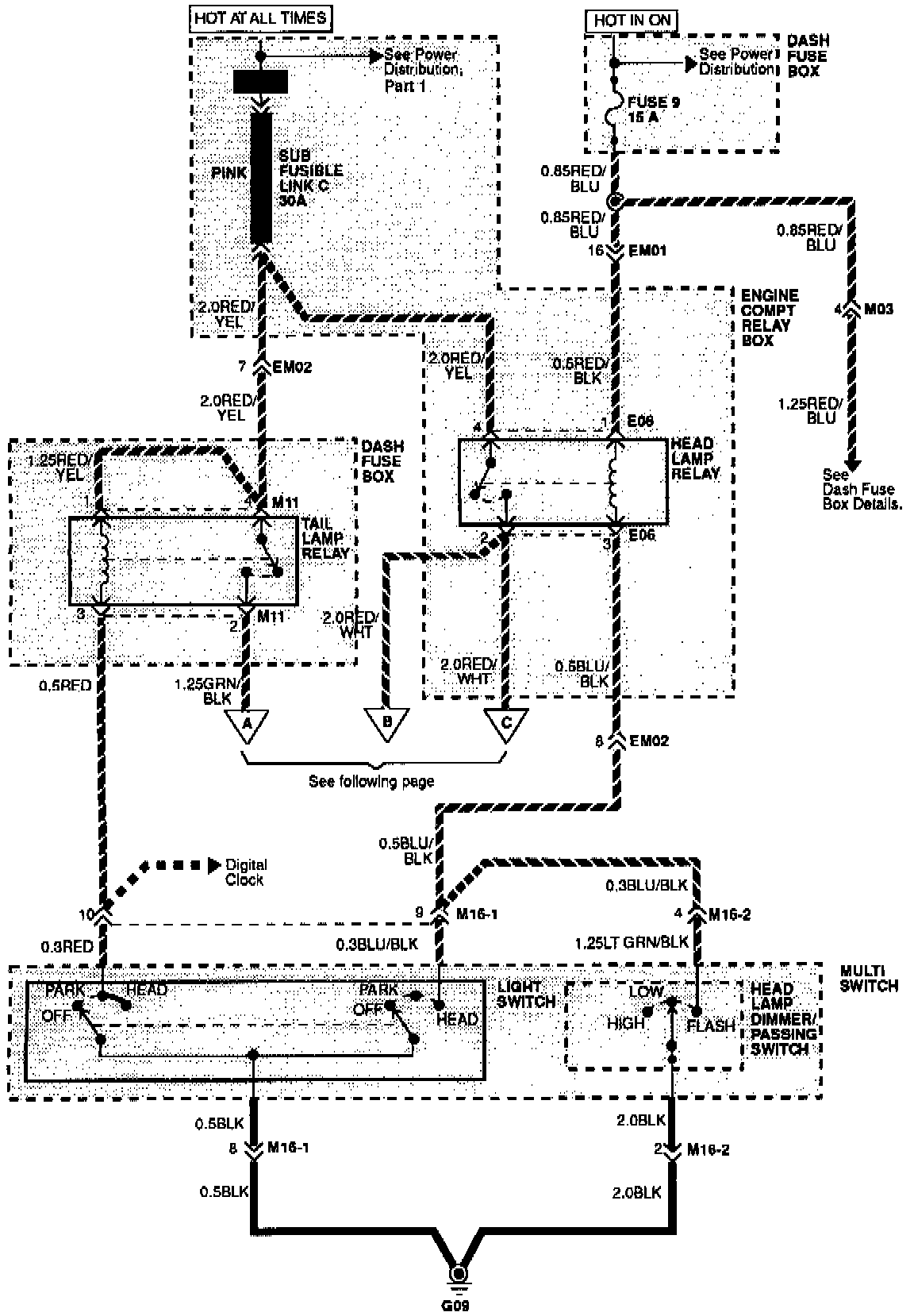

Light Switch Details (USA):



Light Switch Details (USA):
