Fuel/Vapor Lines and Fuel Rail

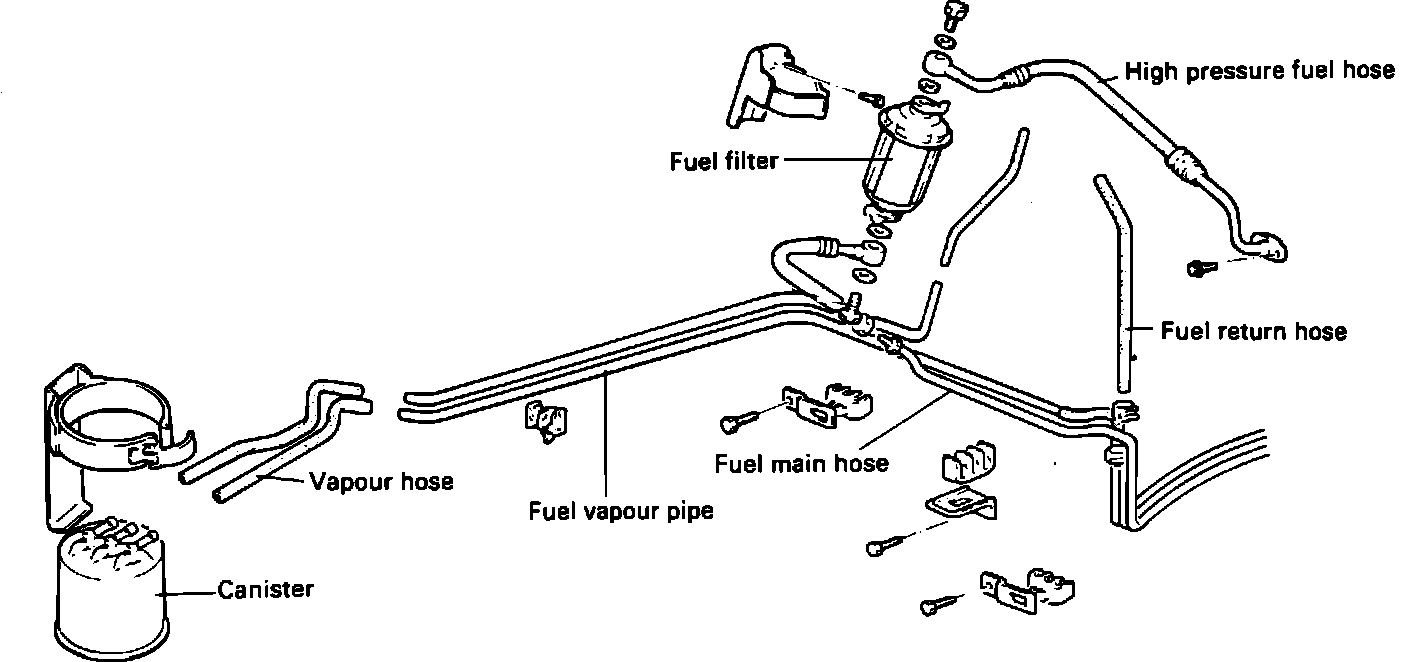

Fuel, Return And Vapor Line Components:

INSPECTION:
1. Check the hoses and pipes for cracking, bending, deformation or restrictions.
2. Check the canister for restrictions (refer to EMISSION CONTROLS).
3. Check the fuel filter for restrictions and damage.

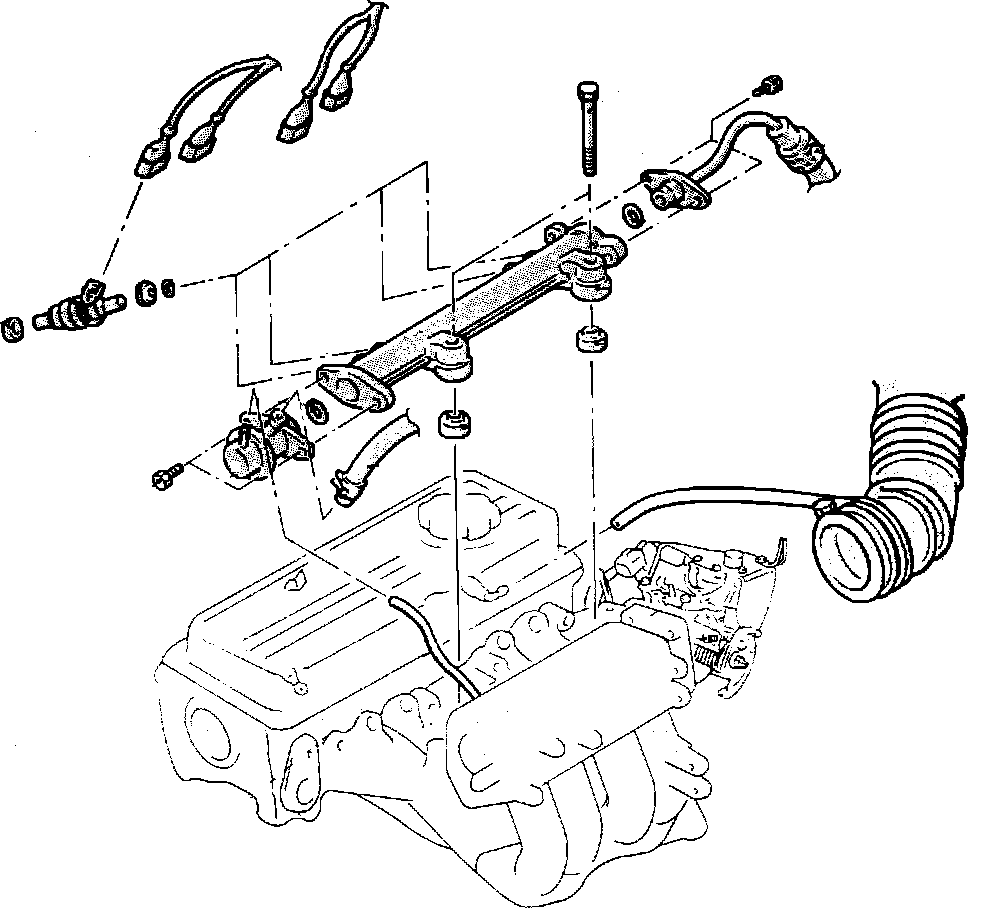

Fuel Rail, Injectors, Fuel Pressure Regulator And Components:

4. Check the fuel rail at all of its attachment points for any sign of leakage.
