Malfunction Indicator Lamp (MIL) Inspection

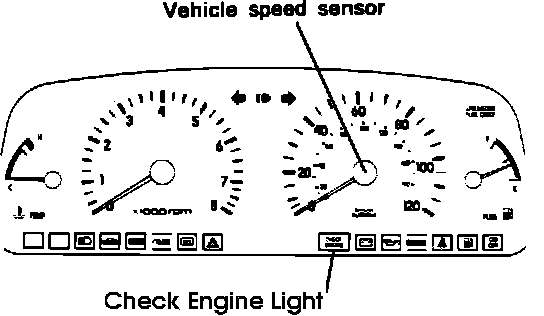

Instrument Cluster Component Locations:

To test the Check Engine Light, located in the instrument cluster, turn the ignition switch on. The light should illuminate. This insures that the light is operative. If the light bulb does not illuminate the most likely fault is a defective light bulb.


If the light tests good the other possible causes are, the ECU not supplying ground, a blown fuse, or the wiring harness or instrument cluster printed circuit board (refer to DIAGRAMS).
