Federal

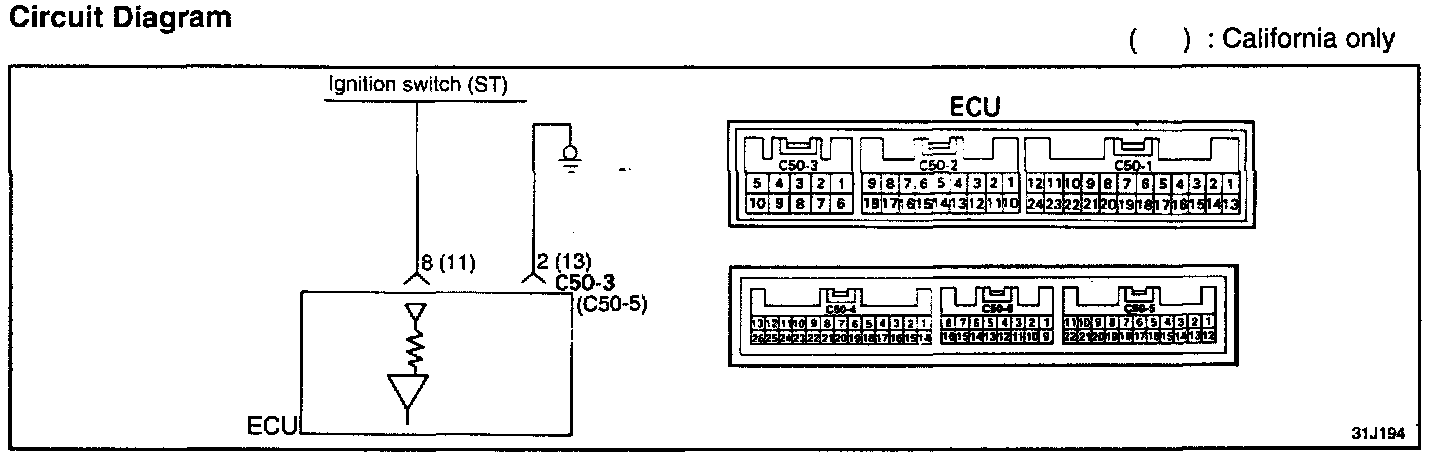

Ignition Switch-ST Circuit:

To inspect the ignition "Start Signal", proceed as follows.

HARNESS TEST
1. Disconnect the ECU connector and turn the key to the START position.

2. Using a voltmeter, check the voltage between the ECU harness connector terminal 8 and ground.

Voltage:
8 or more Volts.

3. Turn the key to the OFF position and check for continuity between ECU harness connector terminal 2 and ground.

Continuity:
Should exist.


If any of the previous tests produce unsatisfactory results, the harness will need to be repaired or replaced. Once repairs have been completed, road test the vehicle to confirm that the repair has corrected the problem.
