Air Flow Sensor

REMOVAL
1. Ensure that the ignition switch is in the OFF position, and disconnect the battery.

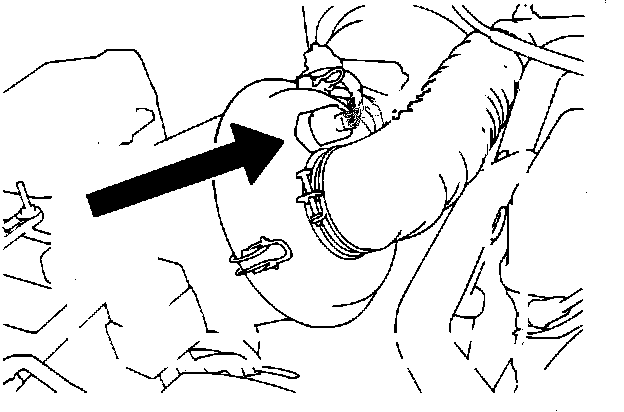

Air Flow Sensor Connector Location:

2. Remove the air flow sensor connector, on the air filter housing lid.

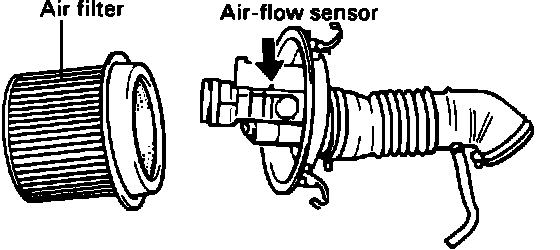

Air Flow Sensor Location:

3. Release the clips holding the lid to the air filter housing.
4. Remove the lid with the air flow sensor attached.
5. Locate and remove the attachment bolts (to the lid) and remove the air flow sensor.

INSTALLATION
1. Reattach the air flow sensor to the air filter housing lid.
2. Install the lid on the air filter housing.
3. Reconnect the air flow sensor connector.
4. Reconnect the battery.
