Diagram Information and Instructions
>>

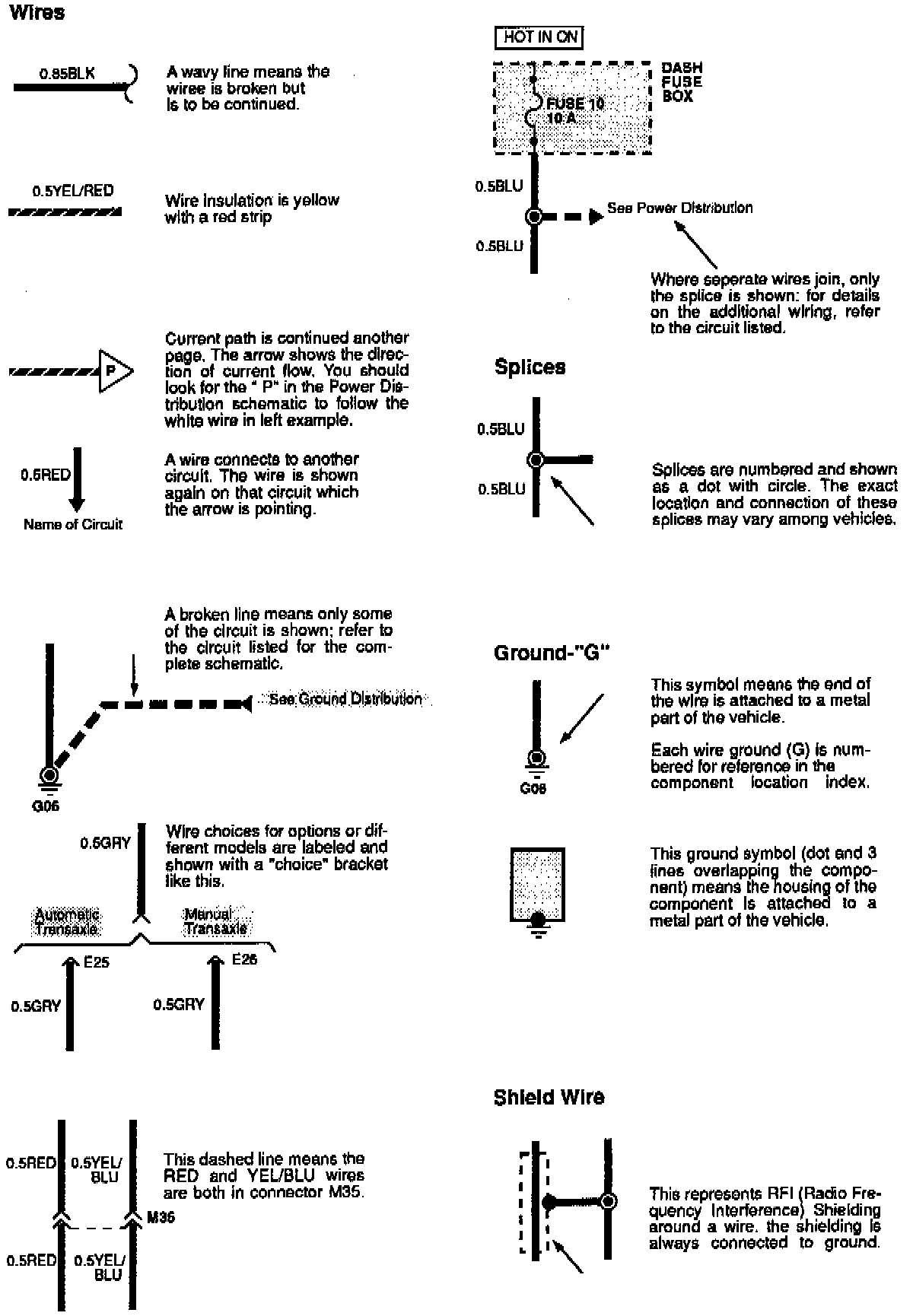

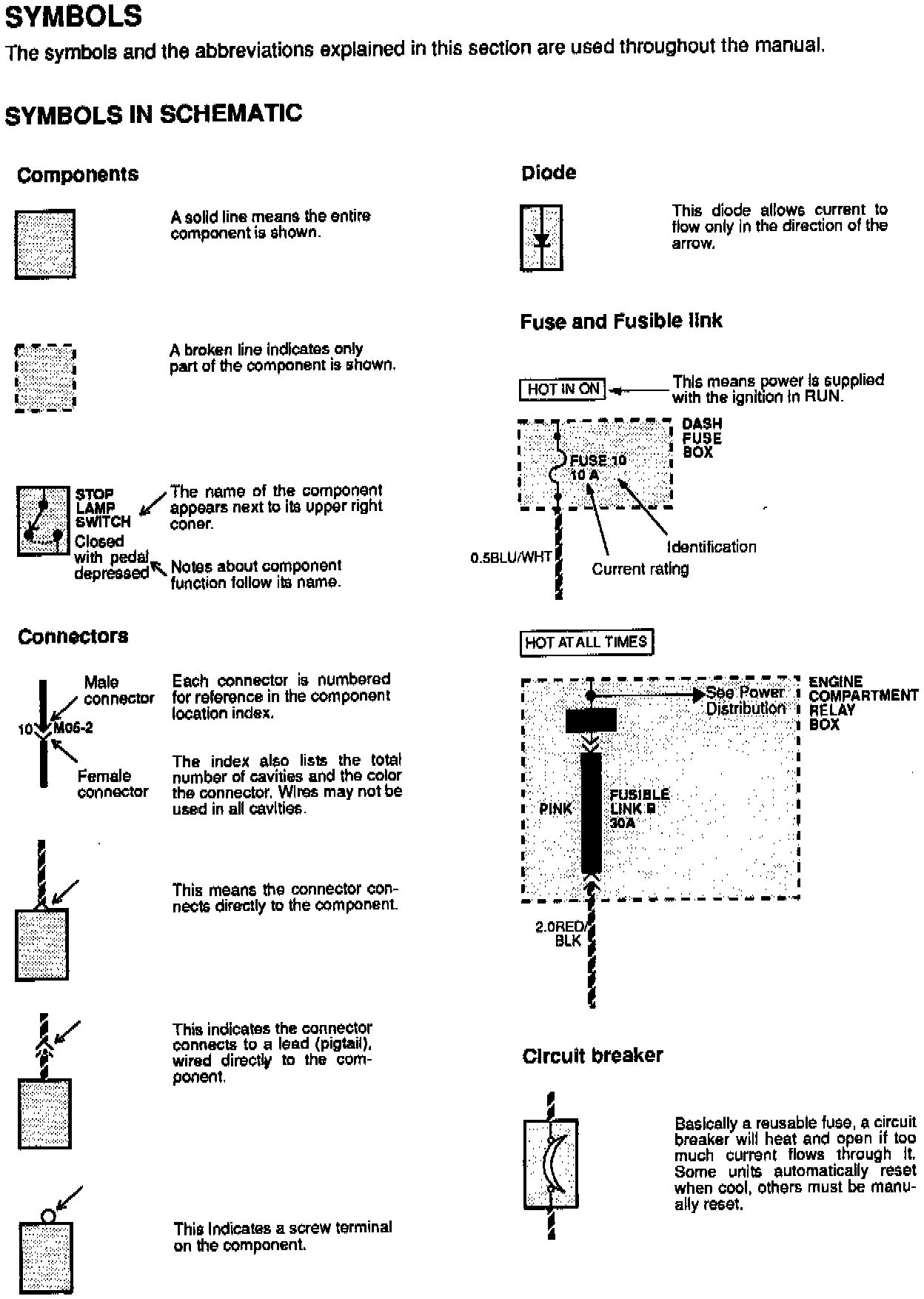

Key to Wiring Diagrams and Symbol I.D.
Key to Wiring Diagrams and Symbol I.D.

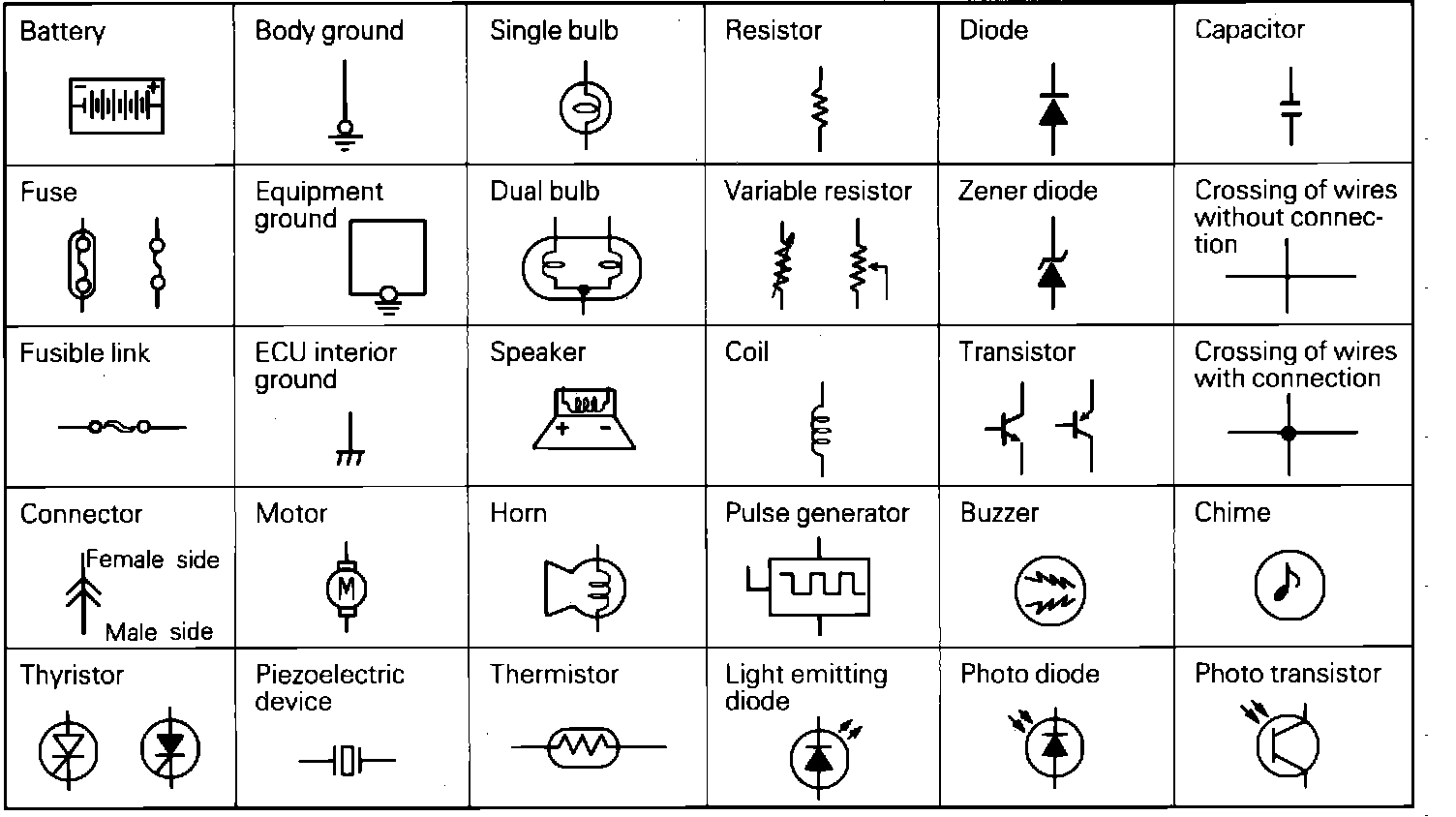

Symbol Identification:
Symbol Identification:
Symbol Identification:
Joint Connectors:
