Federal

Engine Management (MPI, Except USA, California):

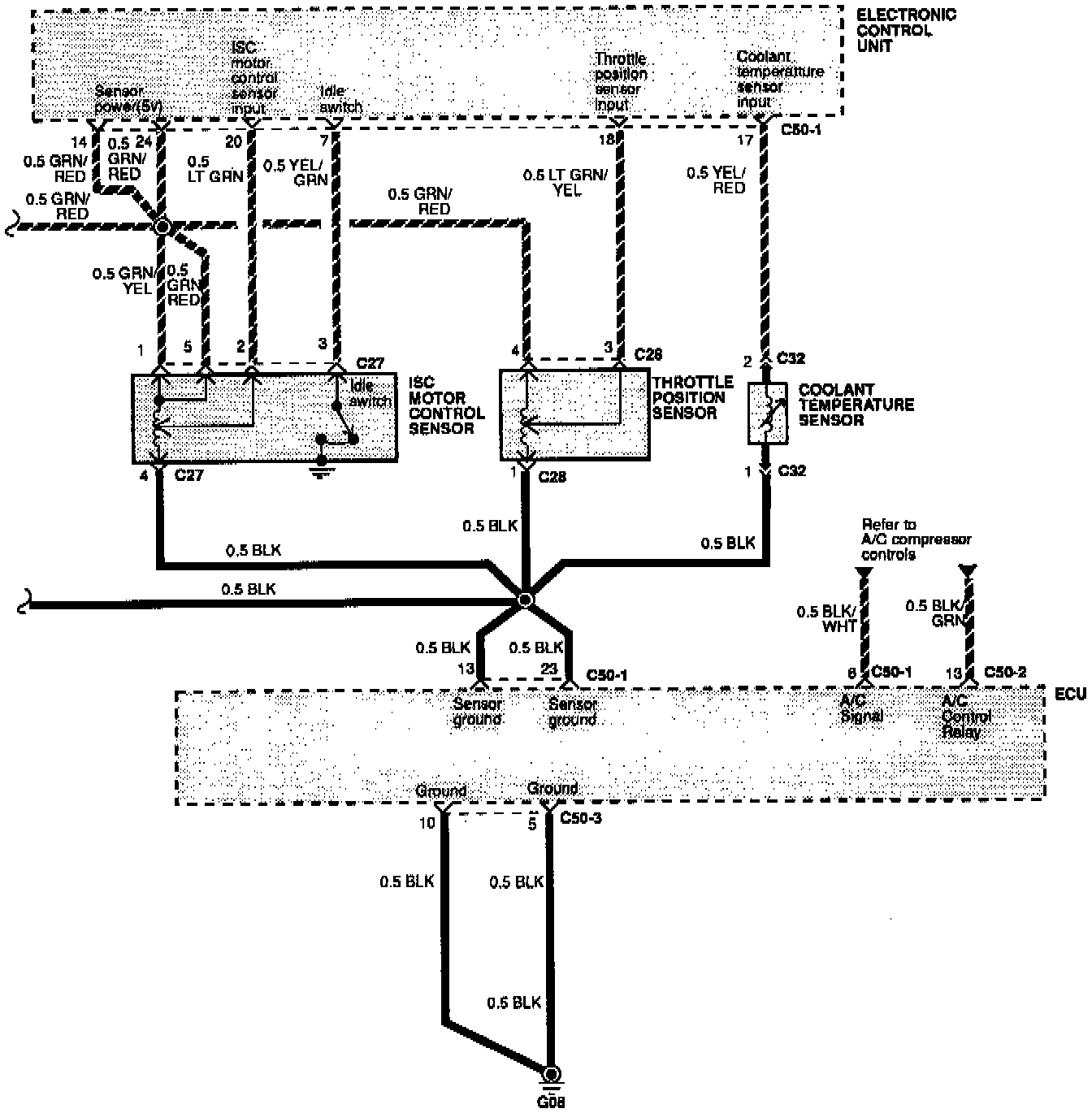

MPI Wiring Schematic (1 Of 5)

Engine Management (MPI, Except USA, California):

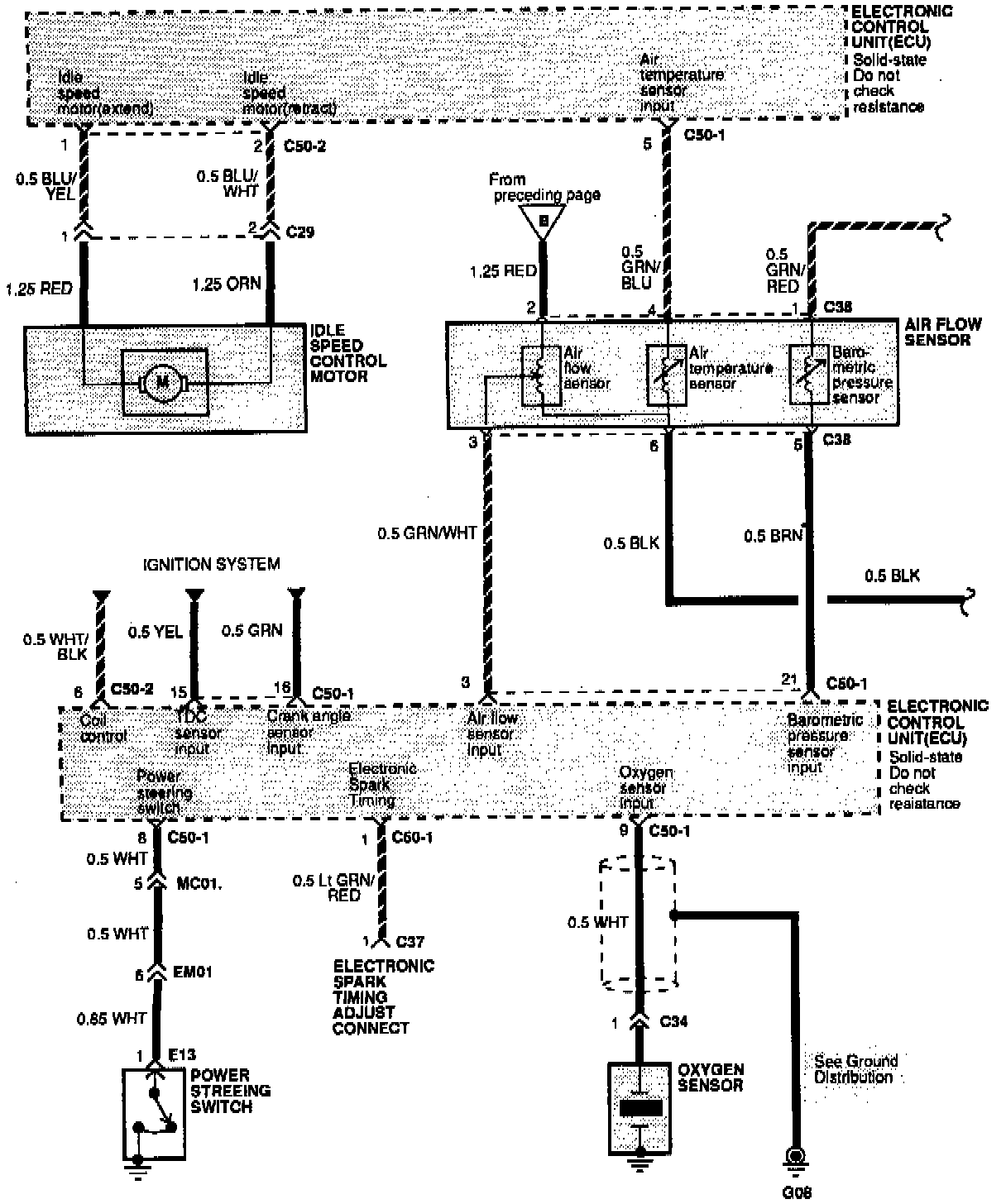

MPI Wiring Schematic (2 Of 5)

Engine Management (MPI, Except USA, California):

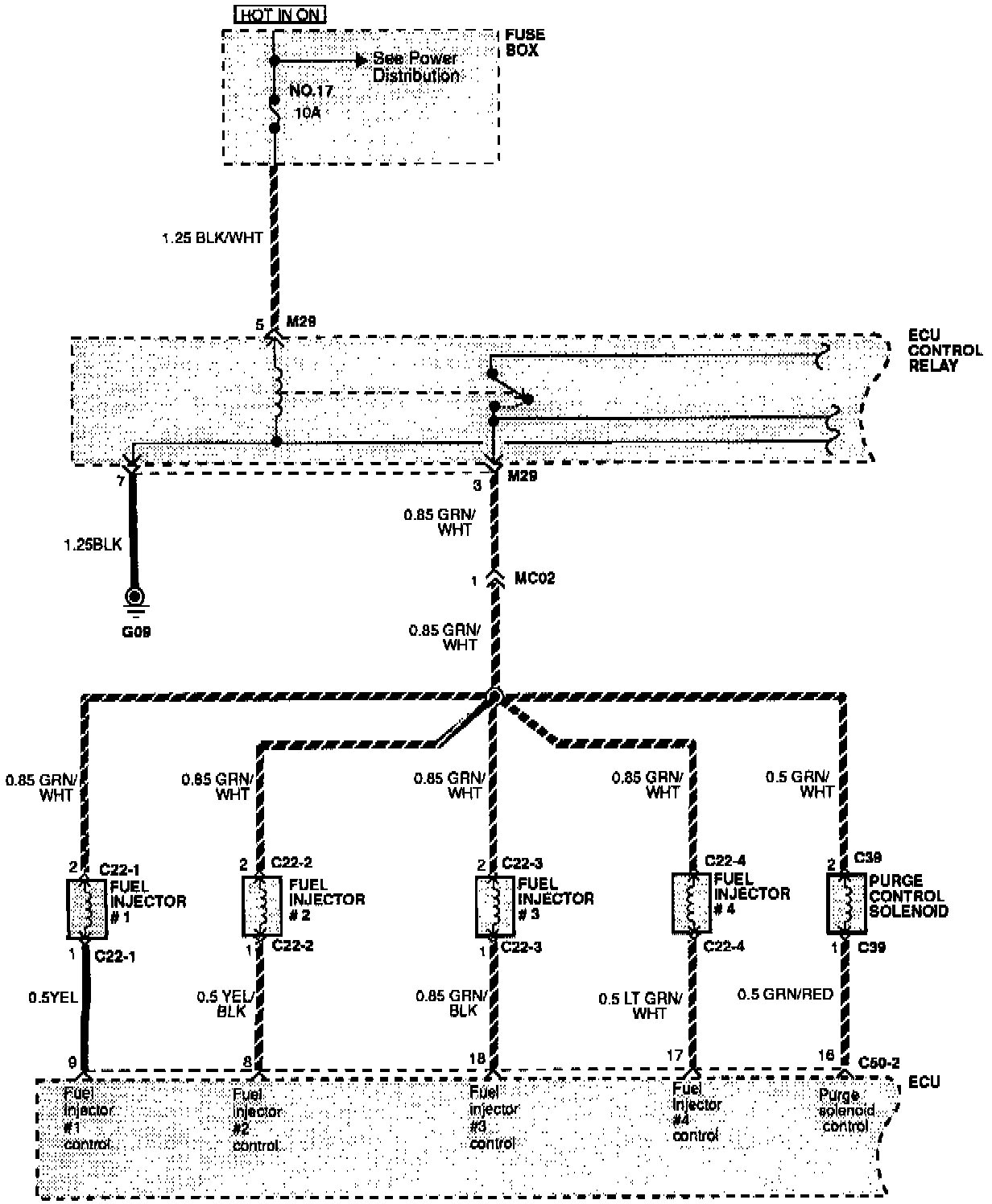

MPI Wiring Schematic (3 Of 5)

Engine Management (MPI, Except USA, California):

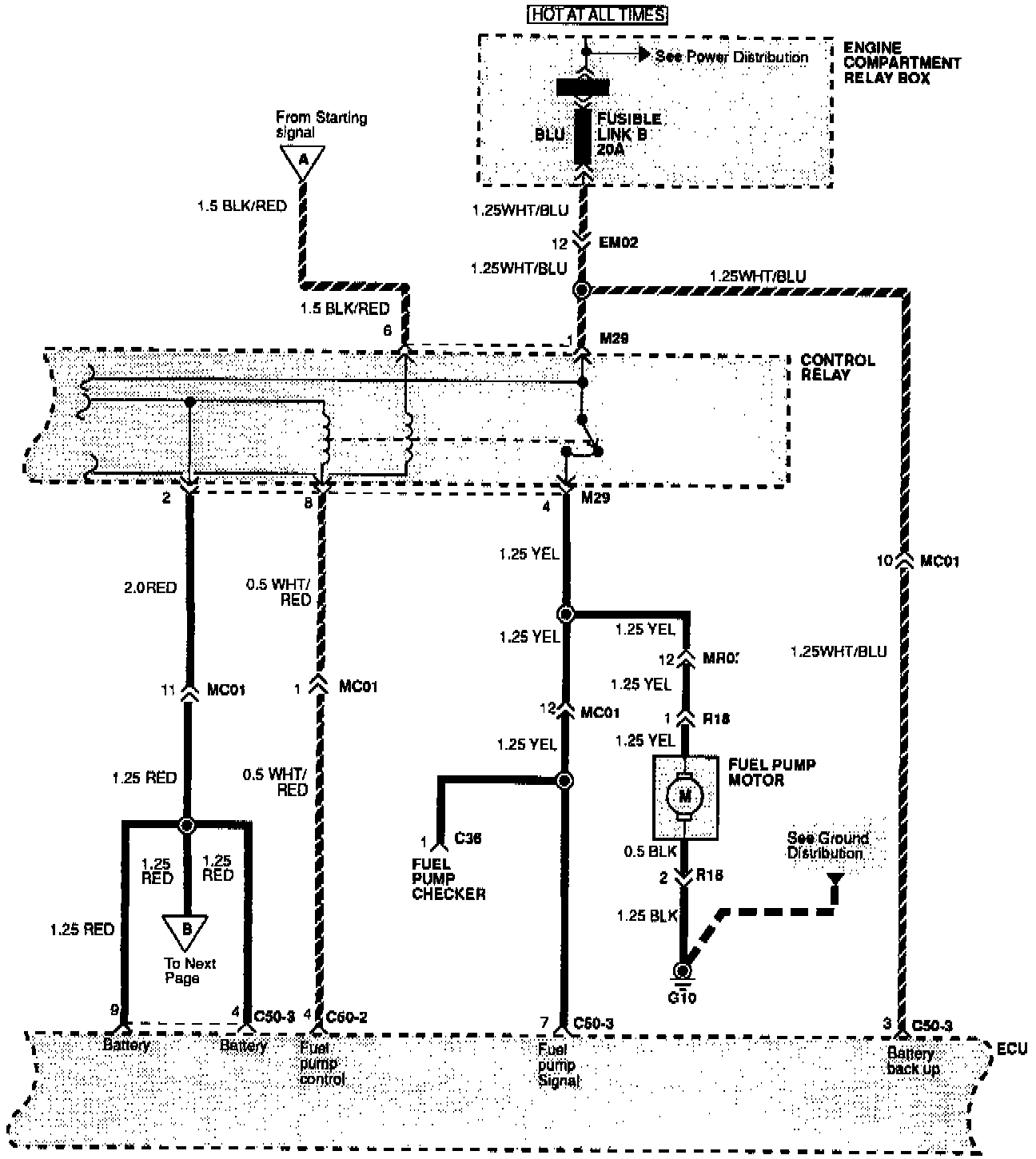

MPI Wiring Schematic (4 Of 5)

Engine Management (MPI, Except USA, California):

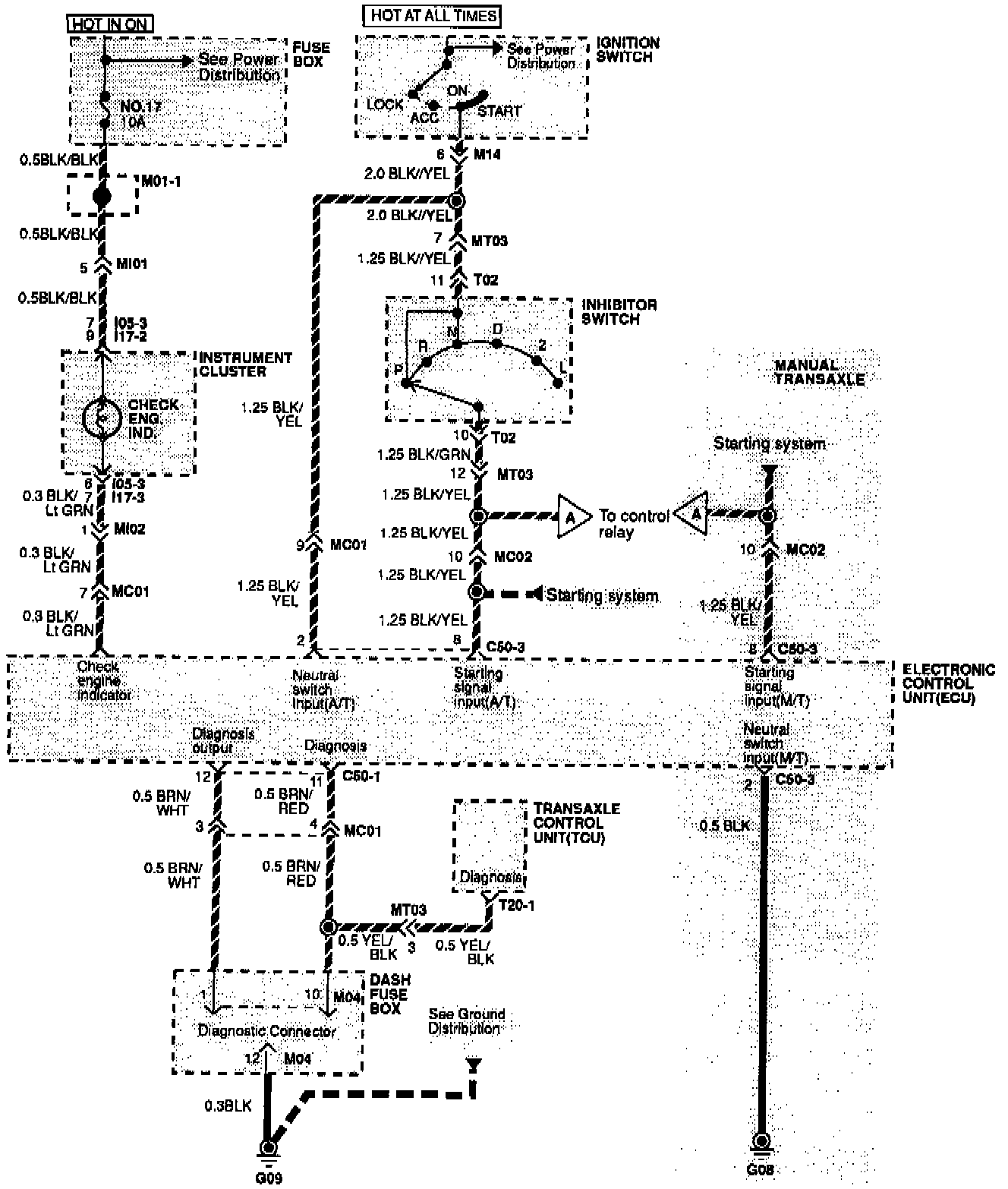

MPI Wiring Schematic (5 Of 5)
