Federal

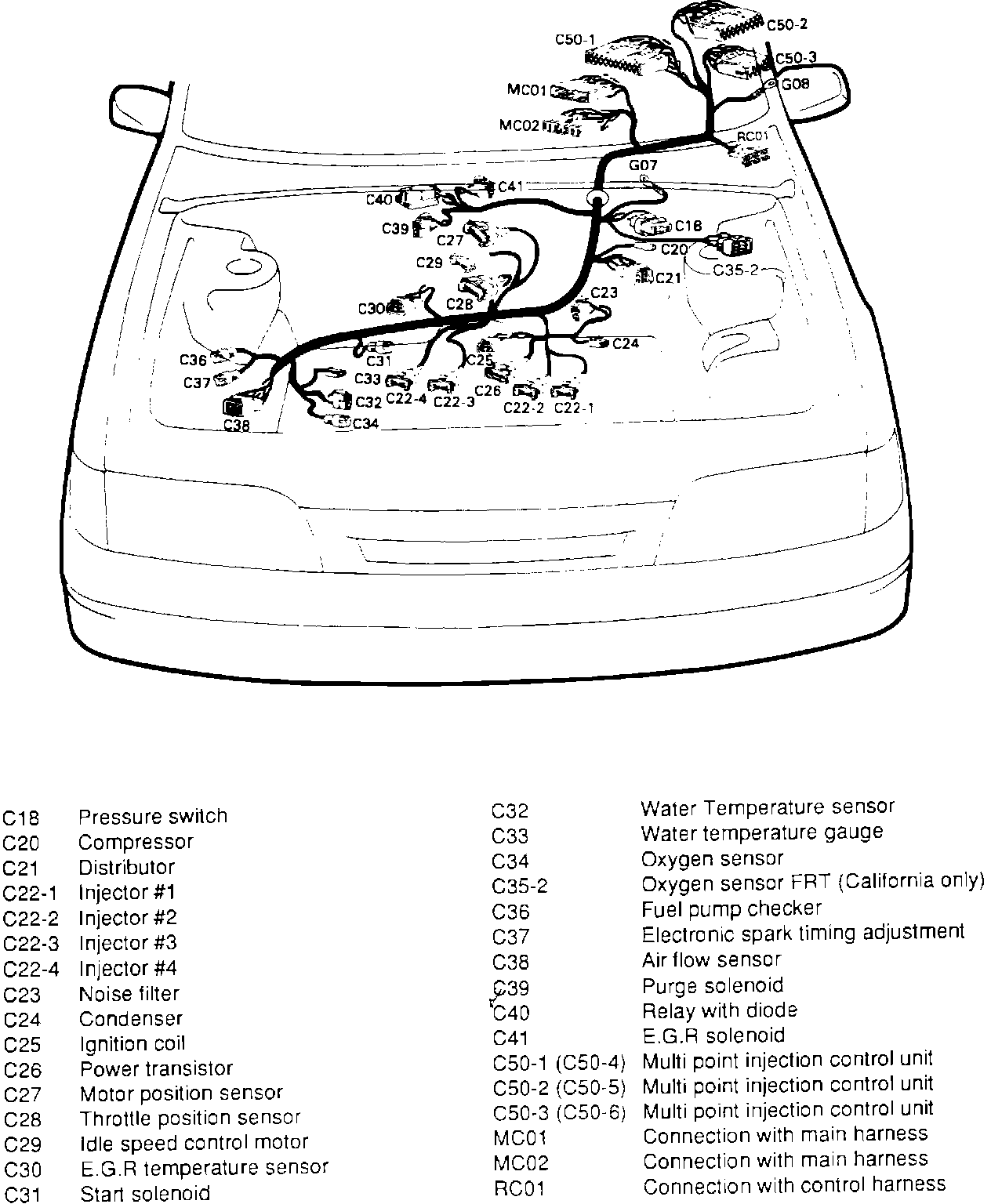

ECM Harness Connector Locations:

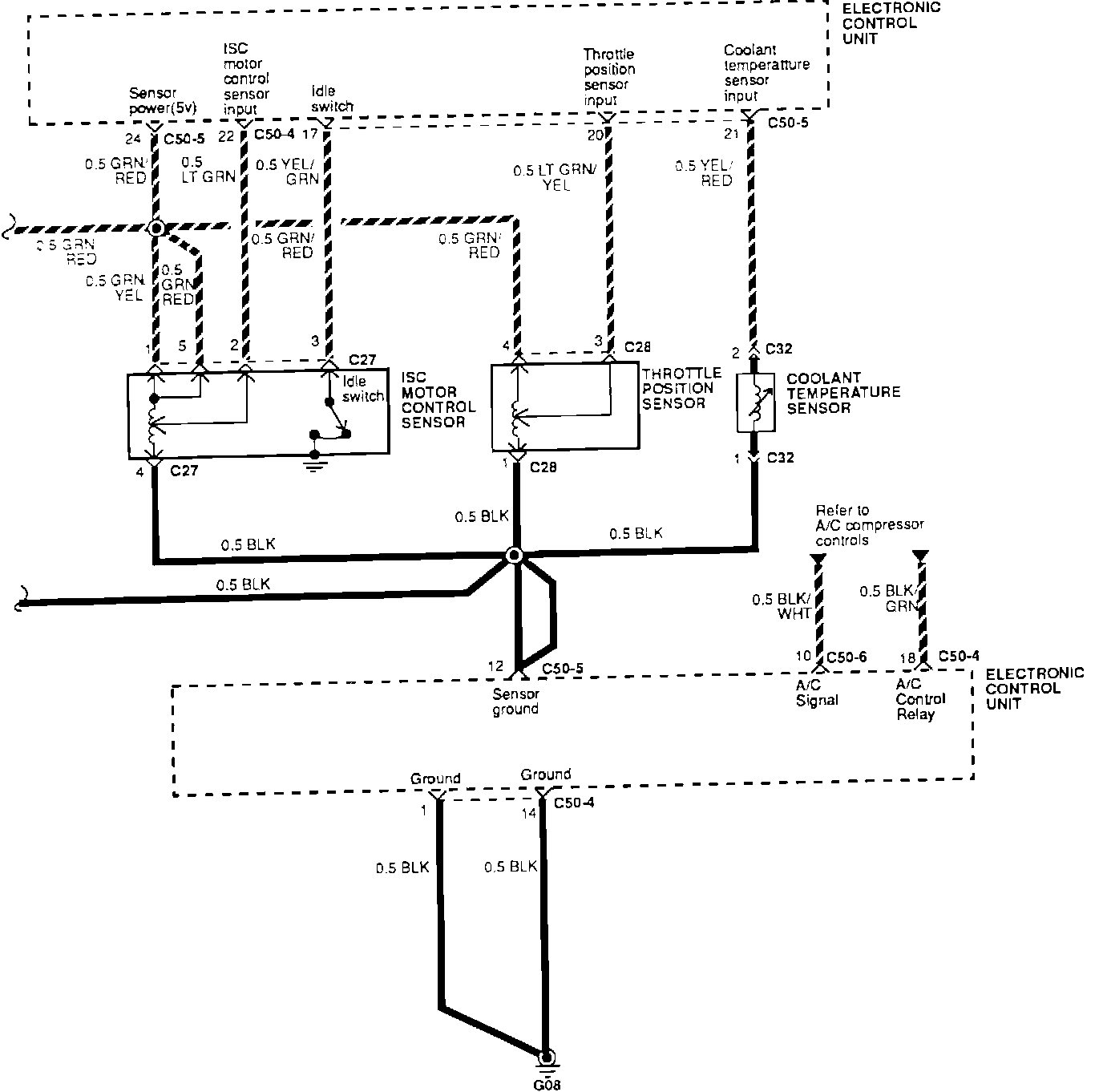

MPI Wiring Schematic (1 Of 6)

MPI Wiring Schematic (1 Of 6):

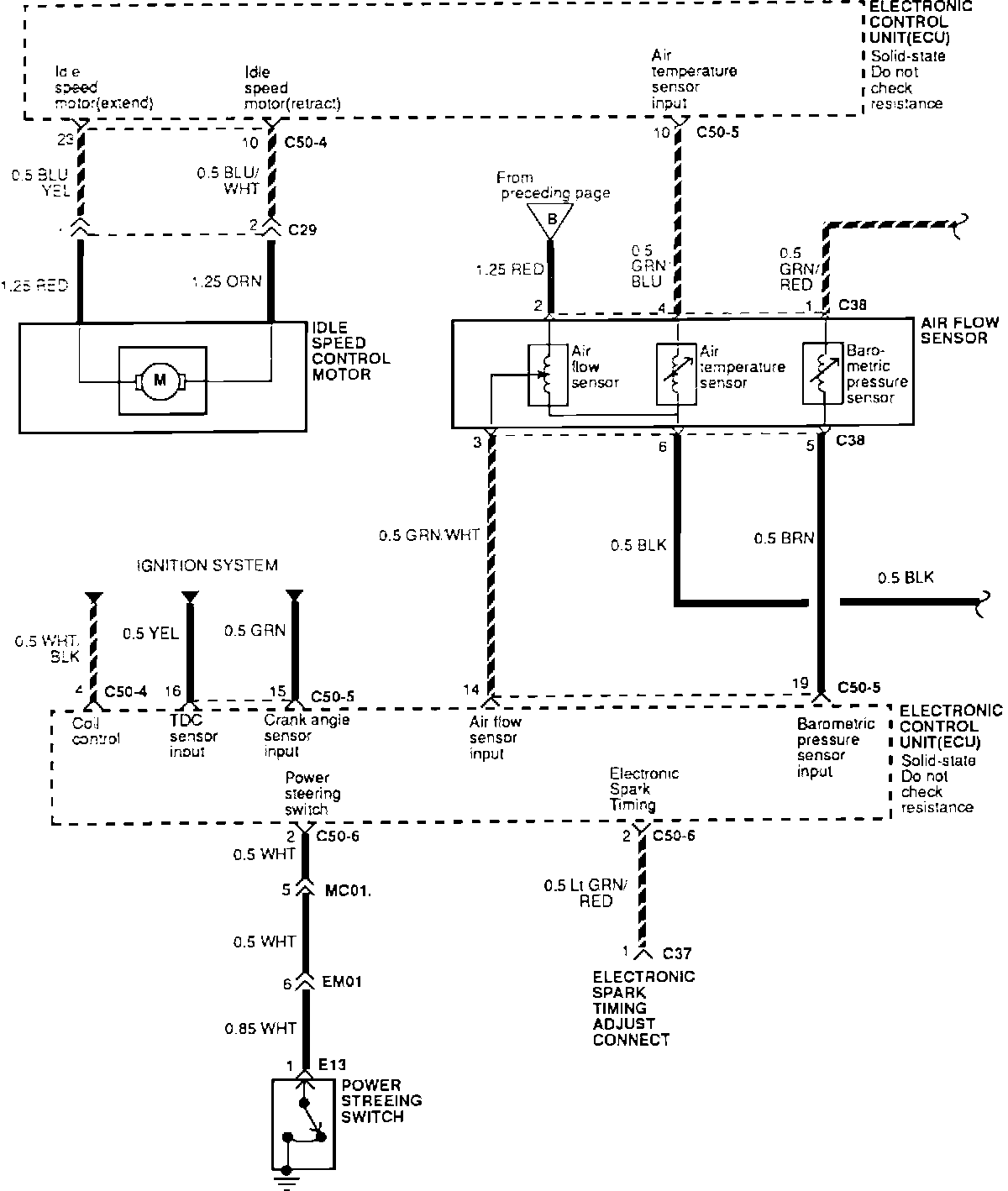

MPI Wiring Schematic (2 Of 6)

MPI Wiring Schematic (2 Of 6):

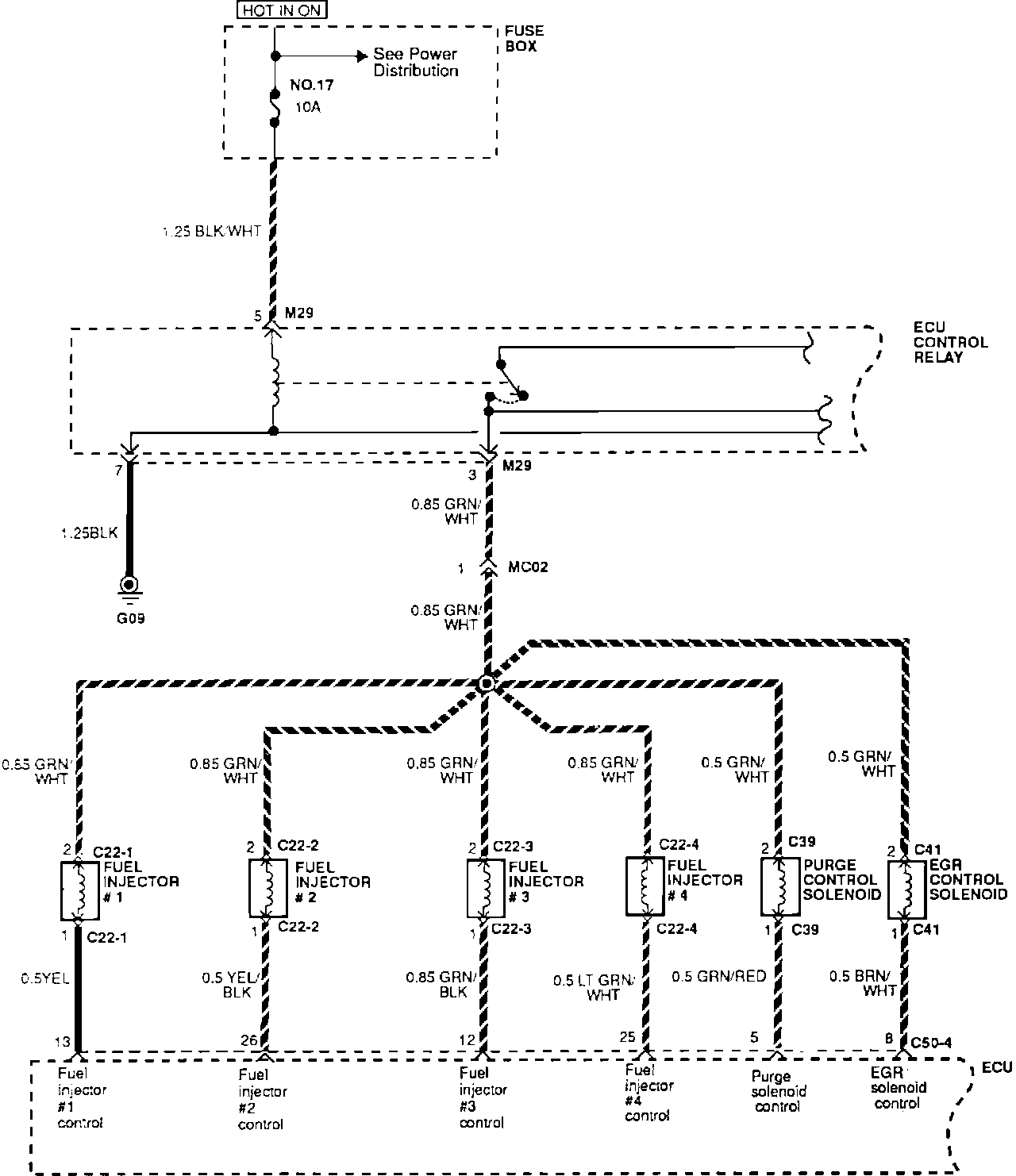

MPI Wiring Schematic (3 Of 6)

MPI Wiring Schematic (3 Of 6):

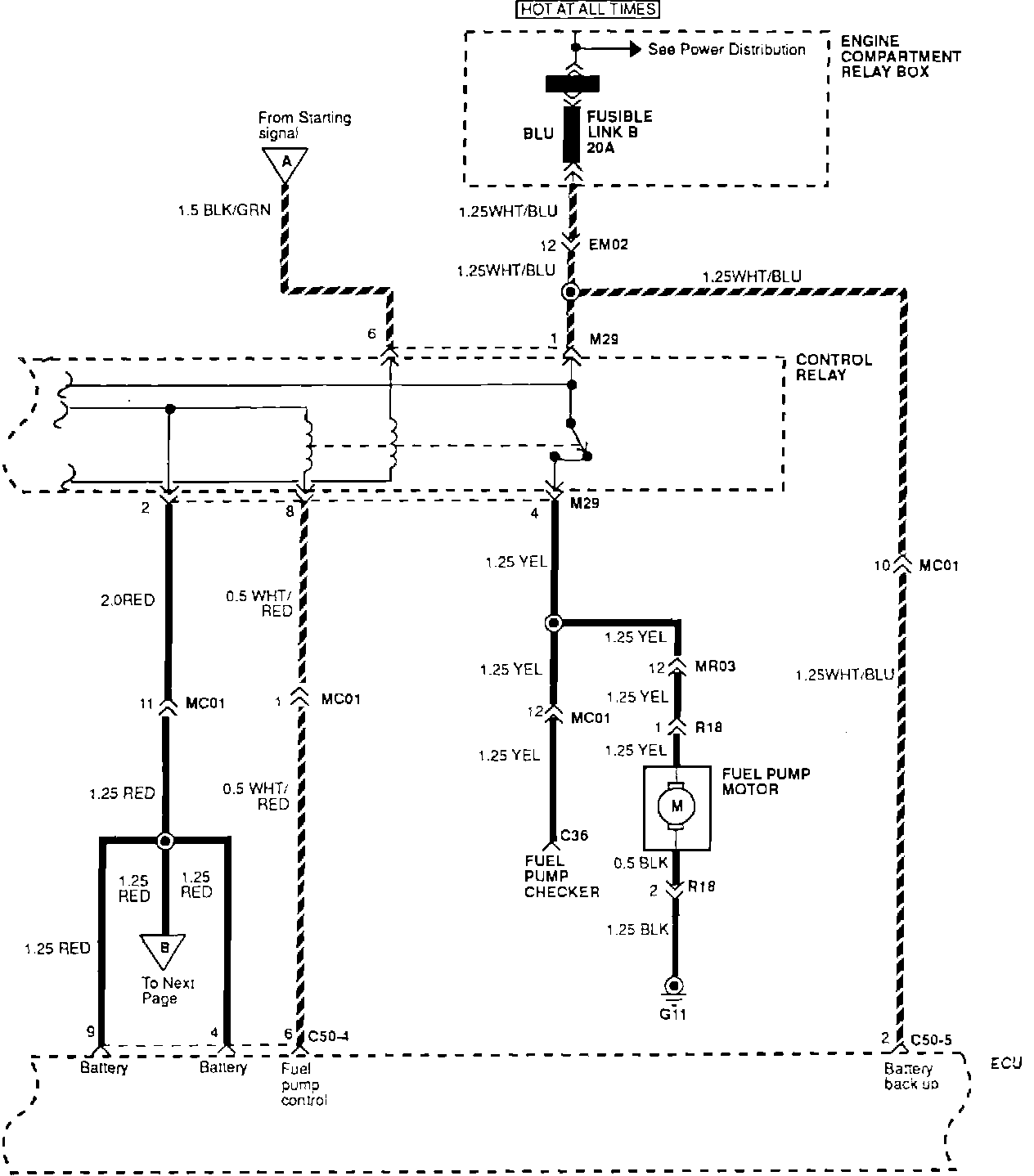

MPI Wiring Schematic (4 Of 6)

MPI Wiring Schematic (4 Of 6):

MPI Wiring Schematic (5 Of 6)

MPI Wiring Schematic (5 Of 6):

MPI Wiring Schematic (6 Of 6)
