Power Transistor

Power Transistor:

PURPOSE
The power transistor controls ignition current by interrupting the ignition coil primary ground causing secondary circuit discharge.

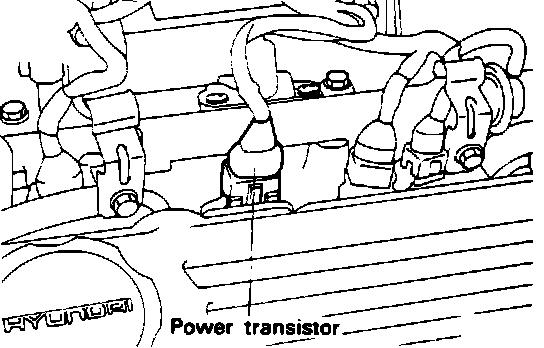

Power Transistor Location:

LOCATION
The power transistor is located on the intake manifold.

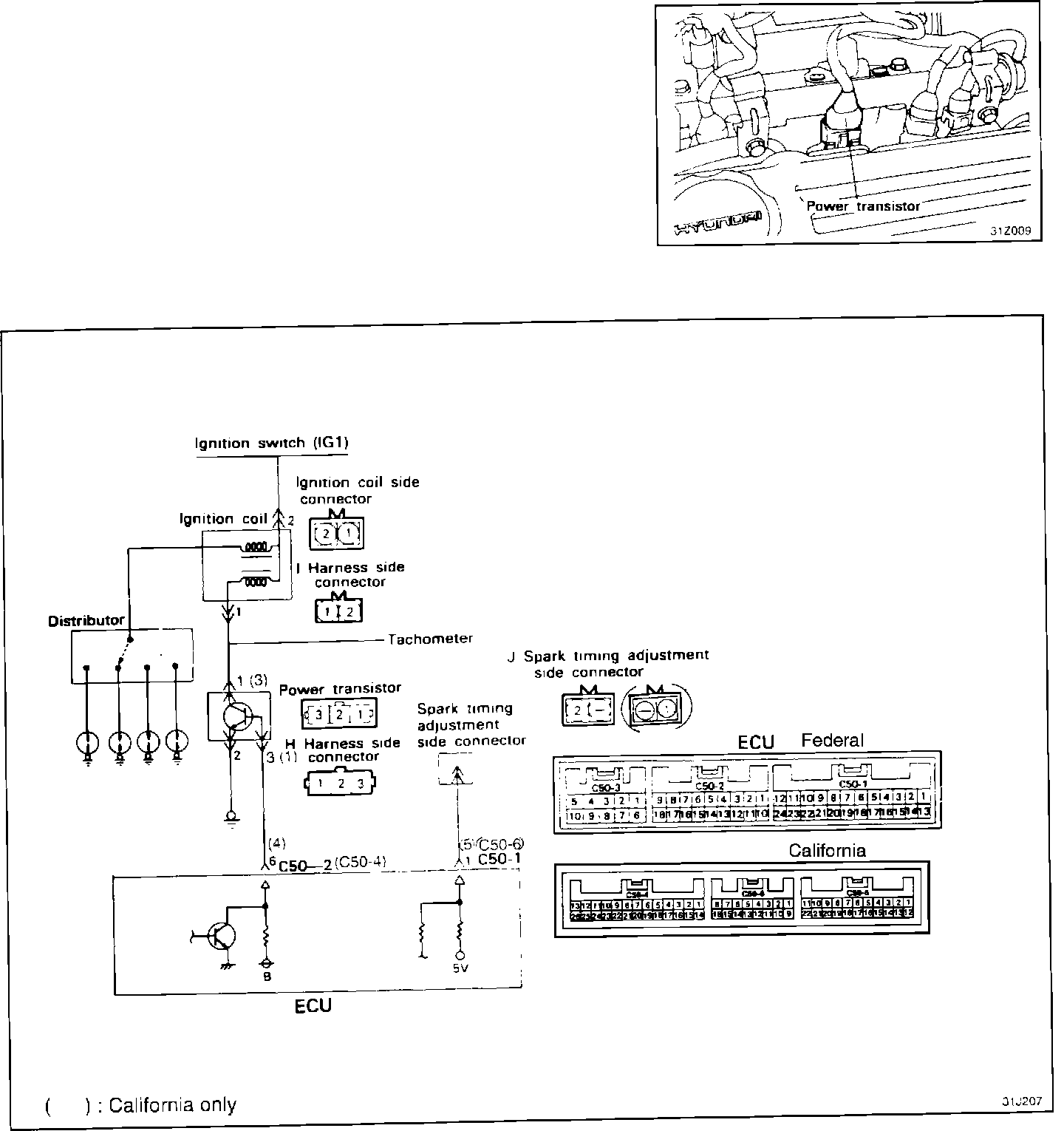

Ignition Coil And Power Transistor Circuit:

OPERATION
The ECU controls ignition timing through the power transistor. The power transistor is a type of switch that allows a very low voltage (from the ECU) to control a larger amount of voltage (negative side of coil).
