Fuel Pump Check Connector

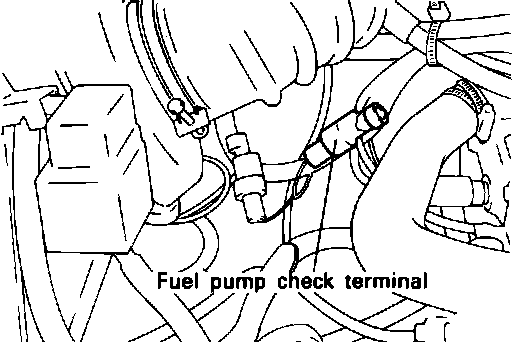

Fuel Pump Test Connector Location:

PURPOSE
The fuel pump check connector is used to check the voltage being supplied to the fuel pump. It is also used to apply voltage to the fuel pump (when key is OFF).

LOCATION
The fuel pump check connector, located on the RH side of engine compartment, next to throttle housing.
