Ignition Timing Adjustment Connector

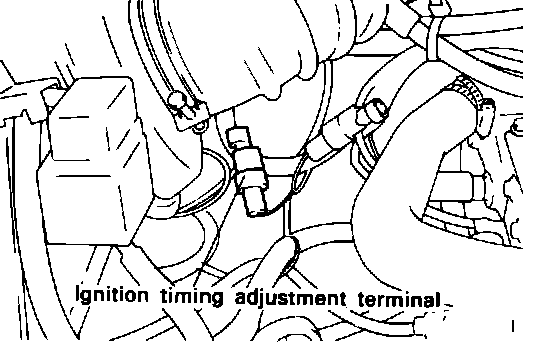

Ignition Timing Adjustment Connector Location:

PURPOSE
The Spark Timing Adjustment Connector, is used to by-pass the ECU timing control inputs. This returns timing to the initial setting (Base Timing) to allow correct adjustment.

LOCATION
Located in the engine compartment near air cleaner.
