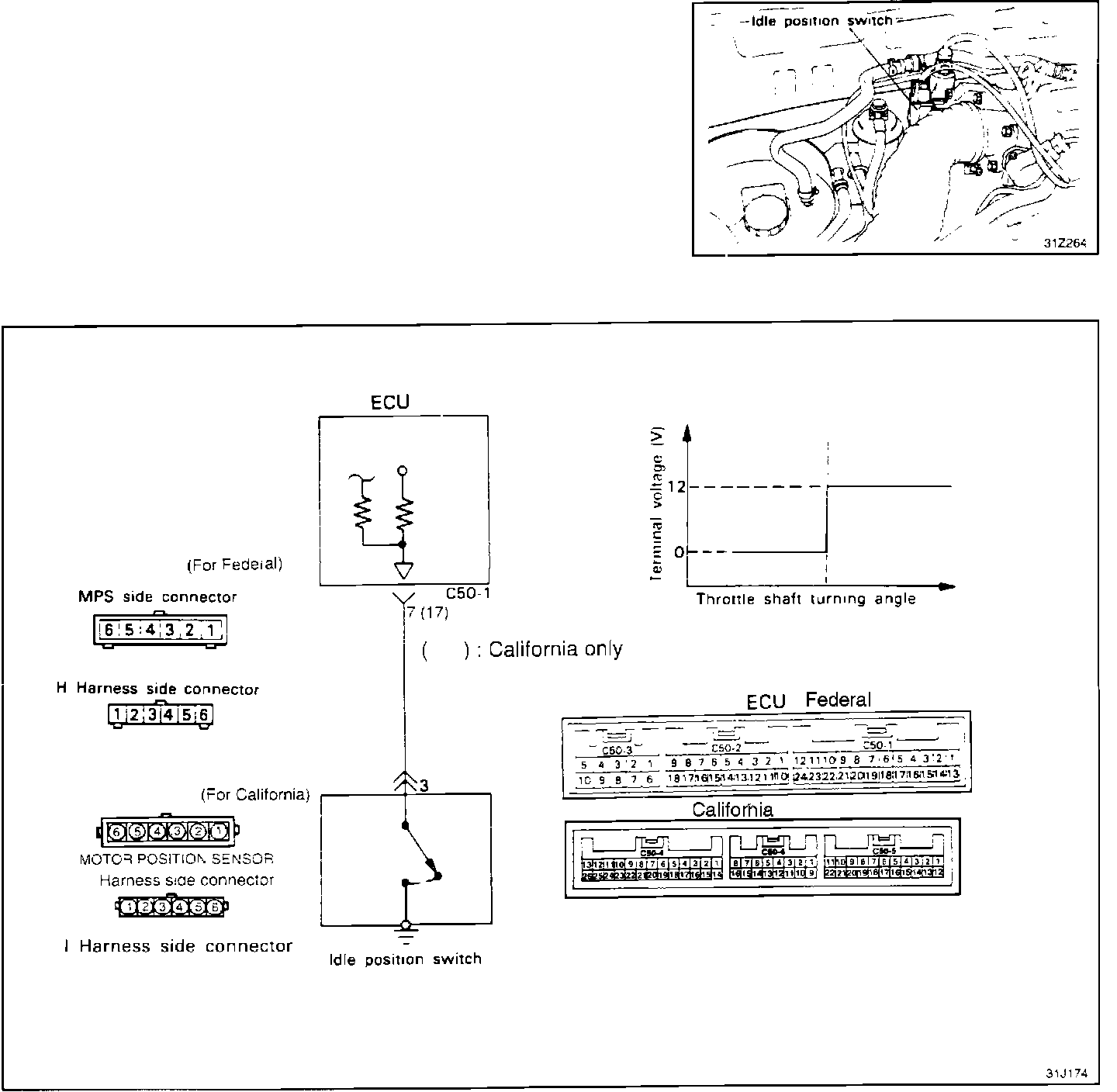

Idle Position Switch

Idle Position Switch:

PURPOSE
The Idle Position Switch, is a contact type switch. It senses accelerator operation.

LOCATION
It is incorporated in the motor position sensor.

OPERATION
When the throttle valve is in the idle position, the contact in the switch is closed.
