EGR Temperature Sensor

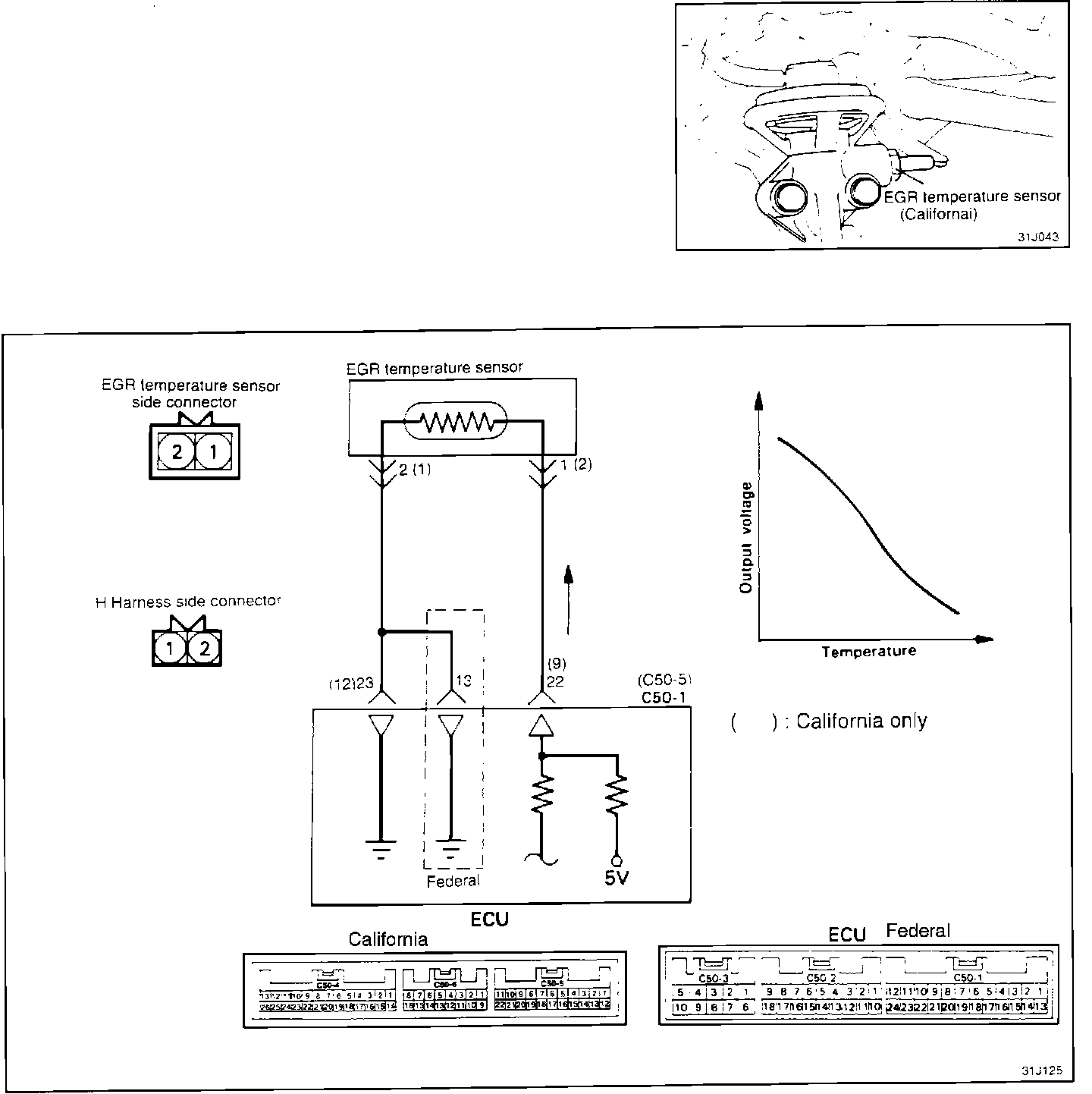

EGR Temperature Sensor Circuit (CA ONLY):

PURPOSE
The EGR Temperature Sensor verifies EGR valve operation. This is done by monitoring the exhaust passage temperature down stream of the EGR valve.

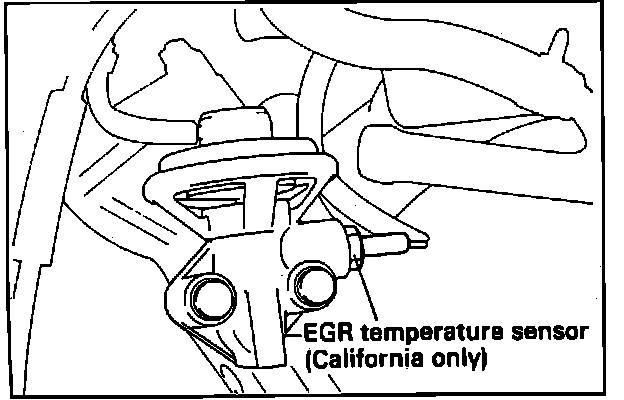

EGR Temperature Sensor Location:

LOCATION
located on the EGR valve.

OPERATION
To confirm that the EGR valve is functioning properly, the ECU expects to see an increase in temperature at the sensor whenever the EGR valve is operating. In the event of a malfunction the ECU will set a code and turn the Check Engine Light "on". The resistance value of the sensor increases as temperature decreases.
