Home >> Hyundai >> 1993 >> Excel L4-1468cc 1.5L SOHC (8 VALVE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> System Diagram >> Joint Distribution >> M01-4

M01-4

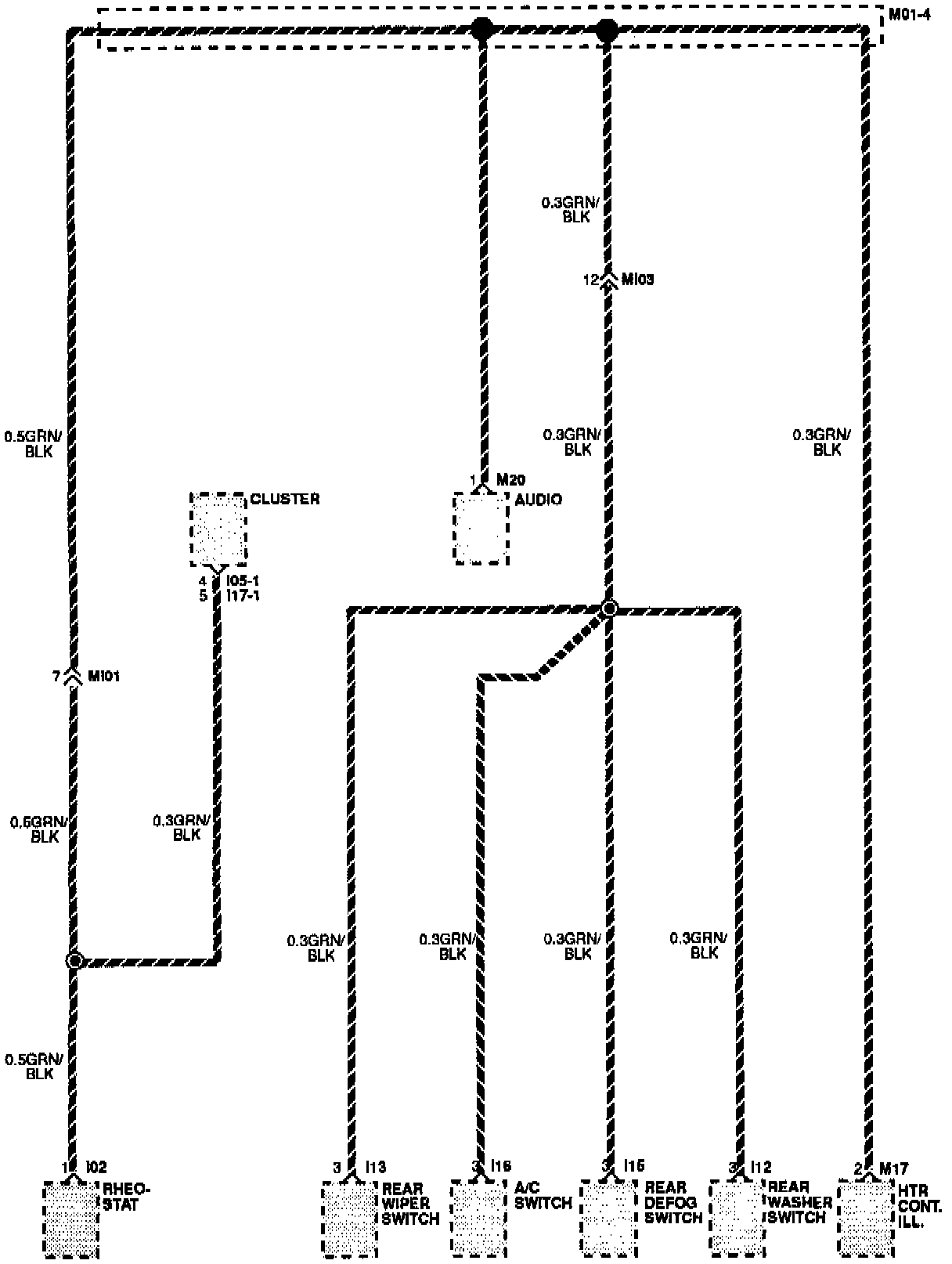

Joint Distribution: M01-4:
