Home >> Hyundai >> 1993 >> Excel L4-1468cc 1.5L SOHC (8 VALVE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> System Diagram >> Ground Distribution >> Ground Connector G10

Ground Connector G10

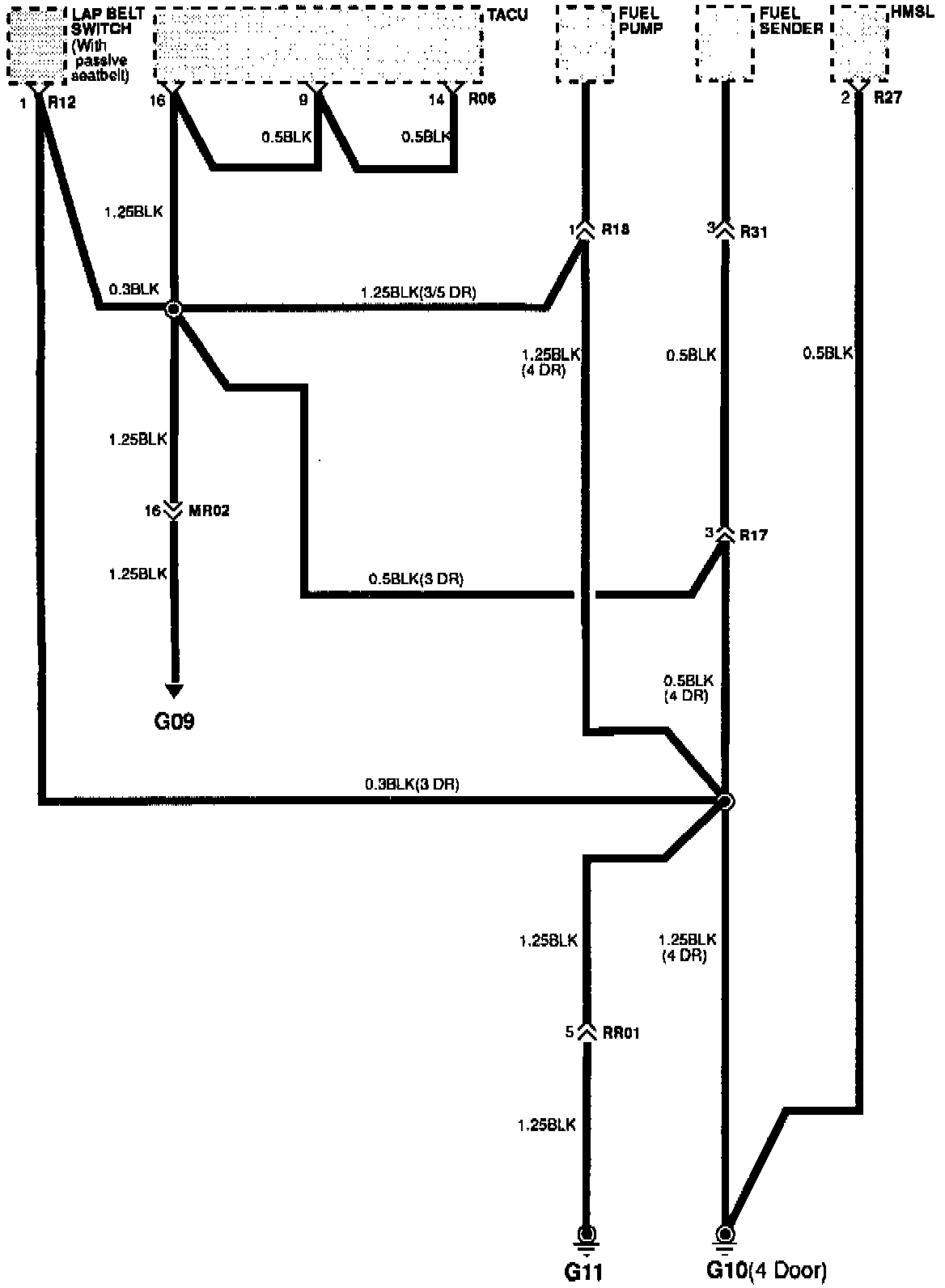

Ground Distribution: G10:
