Fuse Block

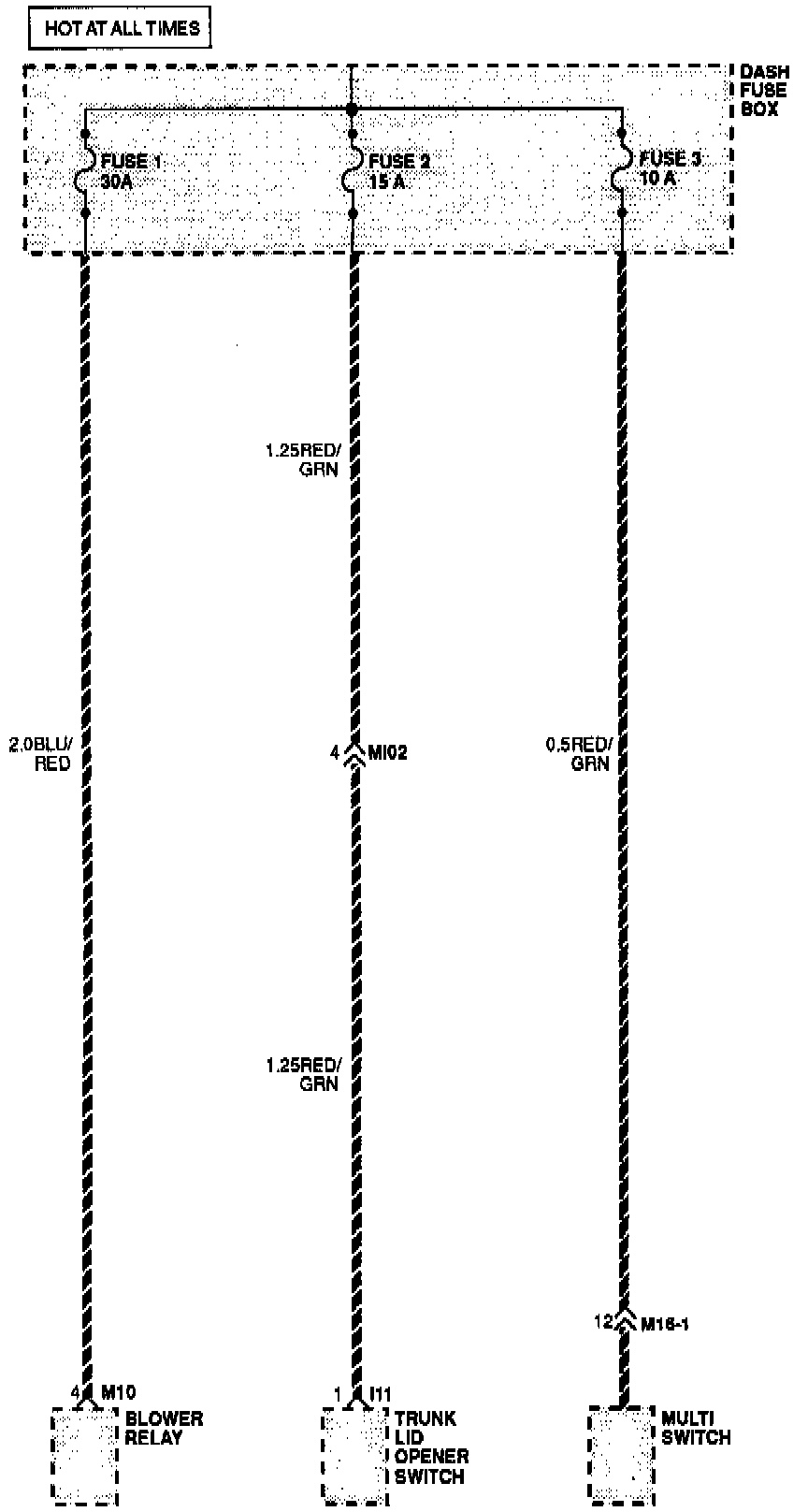

Dash Fuse Box Details: Fuses 1, 2, And 3:

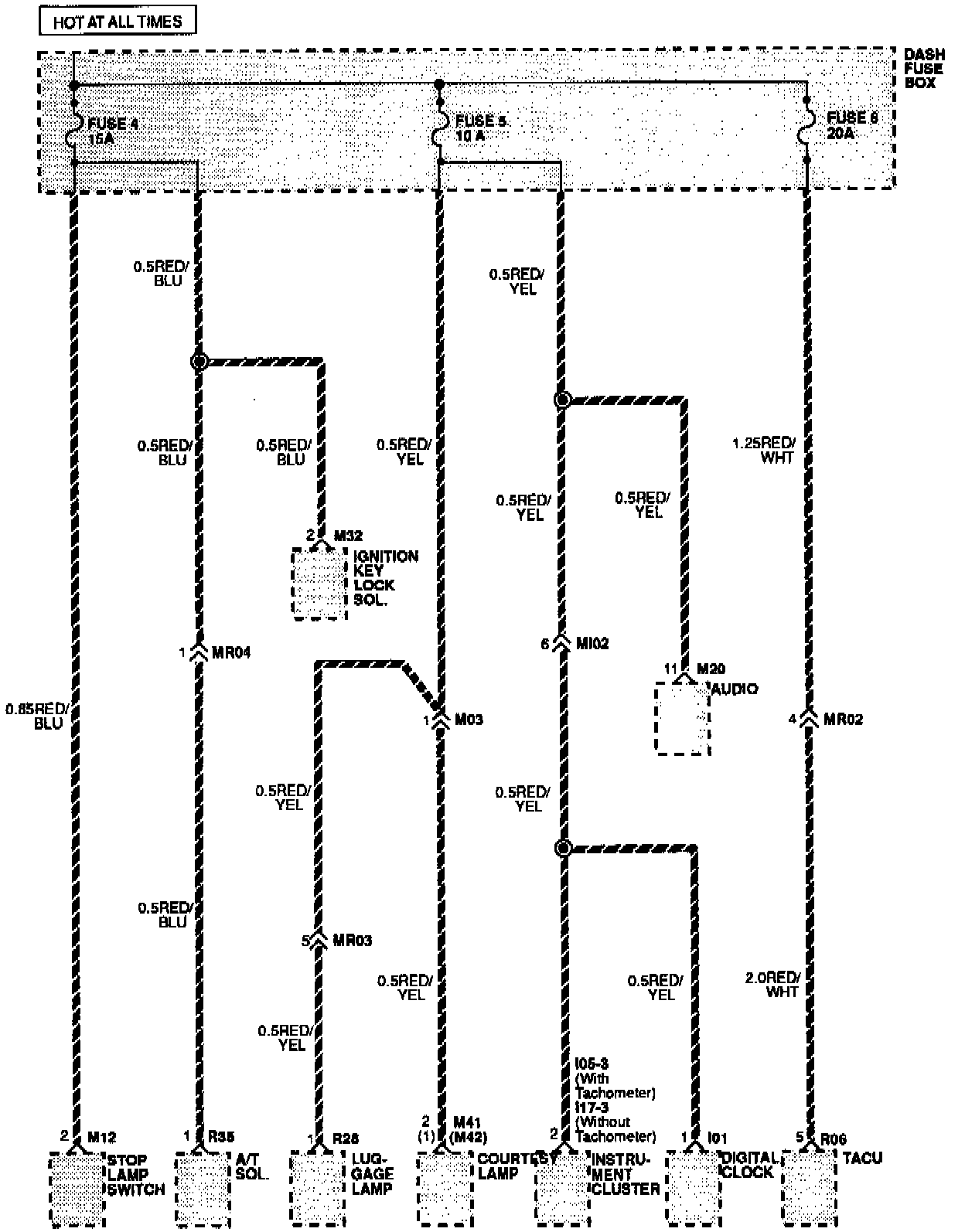

Dash Fuse Box Details: Fuses 4, 5, And 6:

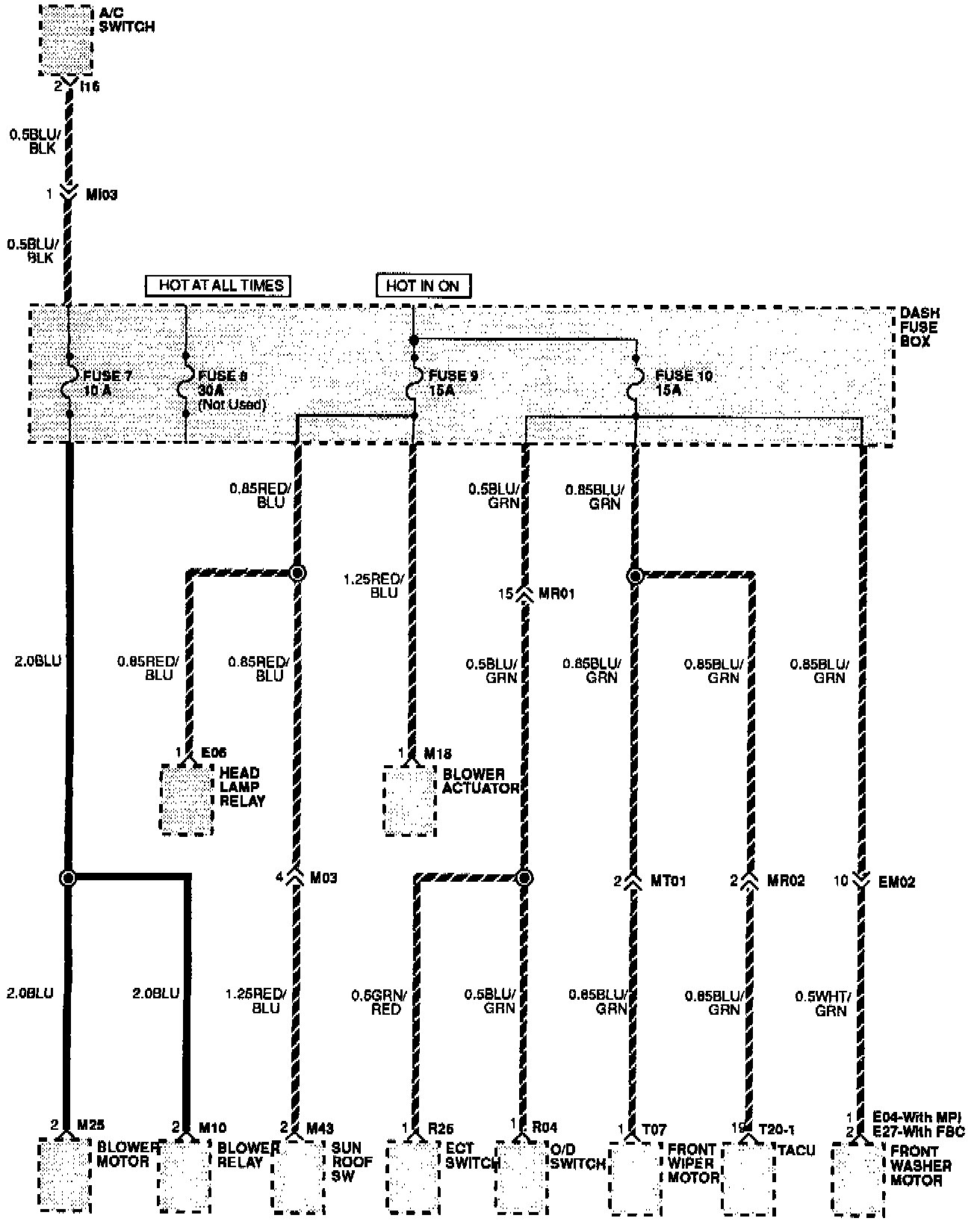

Dash Fuse Box Details: Fuses 7, 8, 9, And 10:

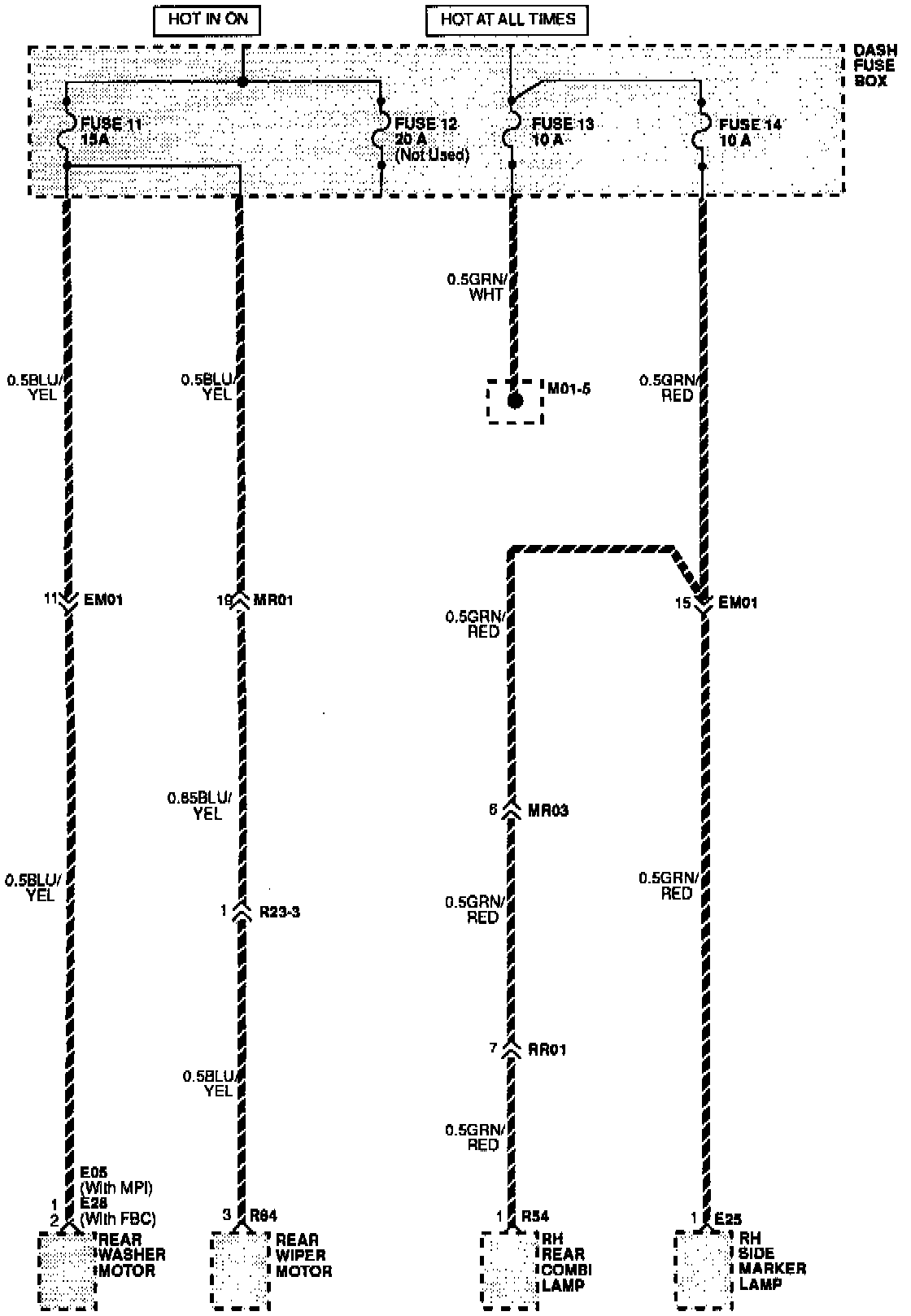

Dash Fuse Box Details: Fuses 11, 12, 13, And 14:

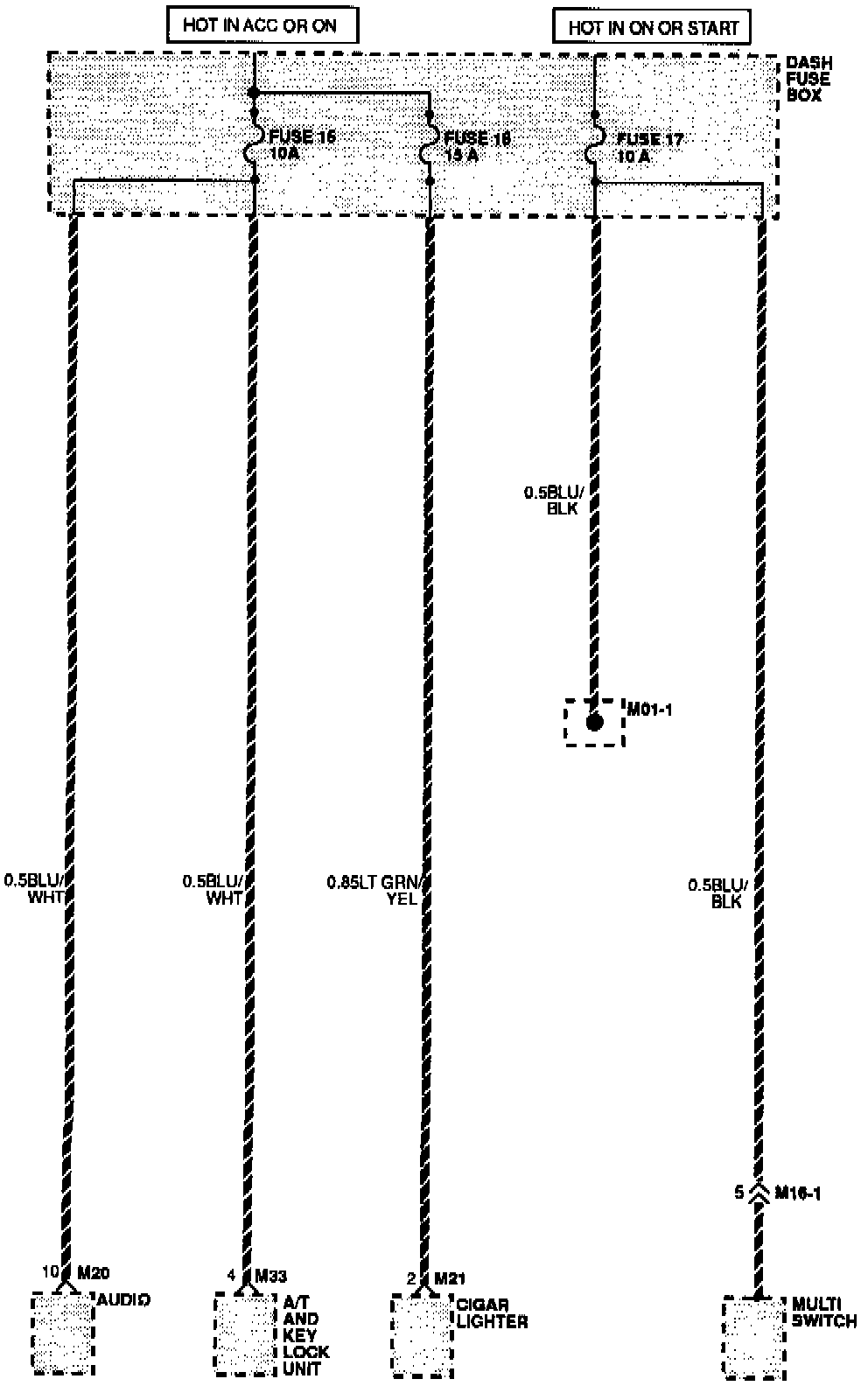

Dash Fuse Box Details: Fuses 15, 16, And 17:
