System Diagram

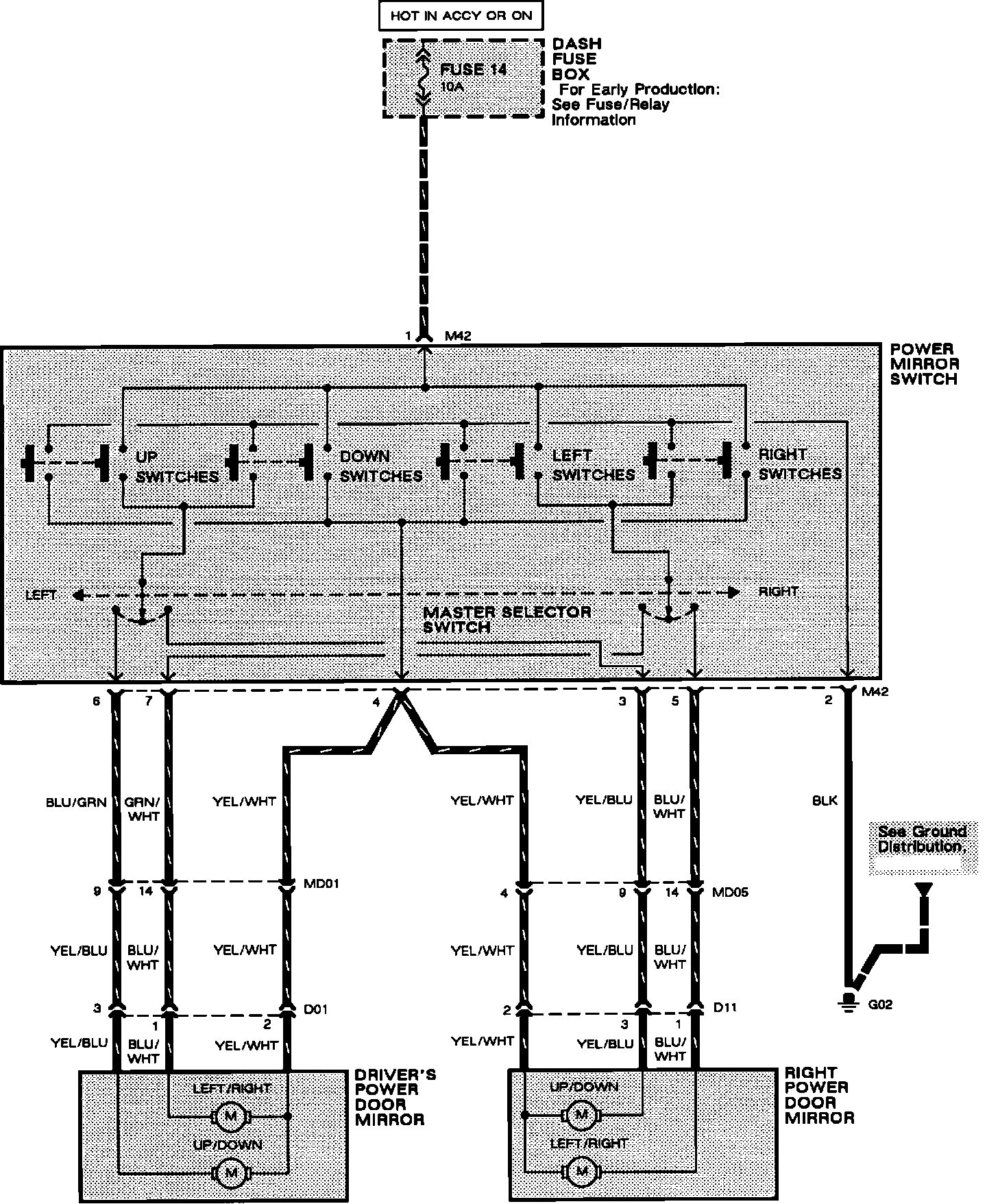

Power Mirrors:



Seat Belt Release System:



Seat Belt Release System (Passive Restraint):



Radio:
