Excel L4-1468cc 1.5L SOHC (8 VALVE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Ignition System
>>
System Diagram
>>
MPI
MPI

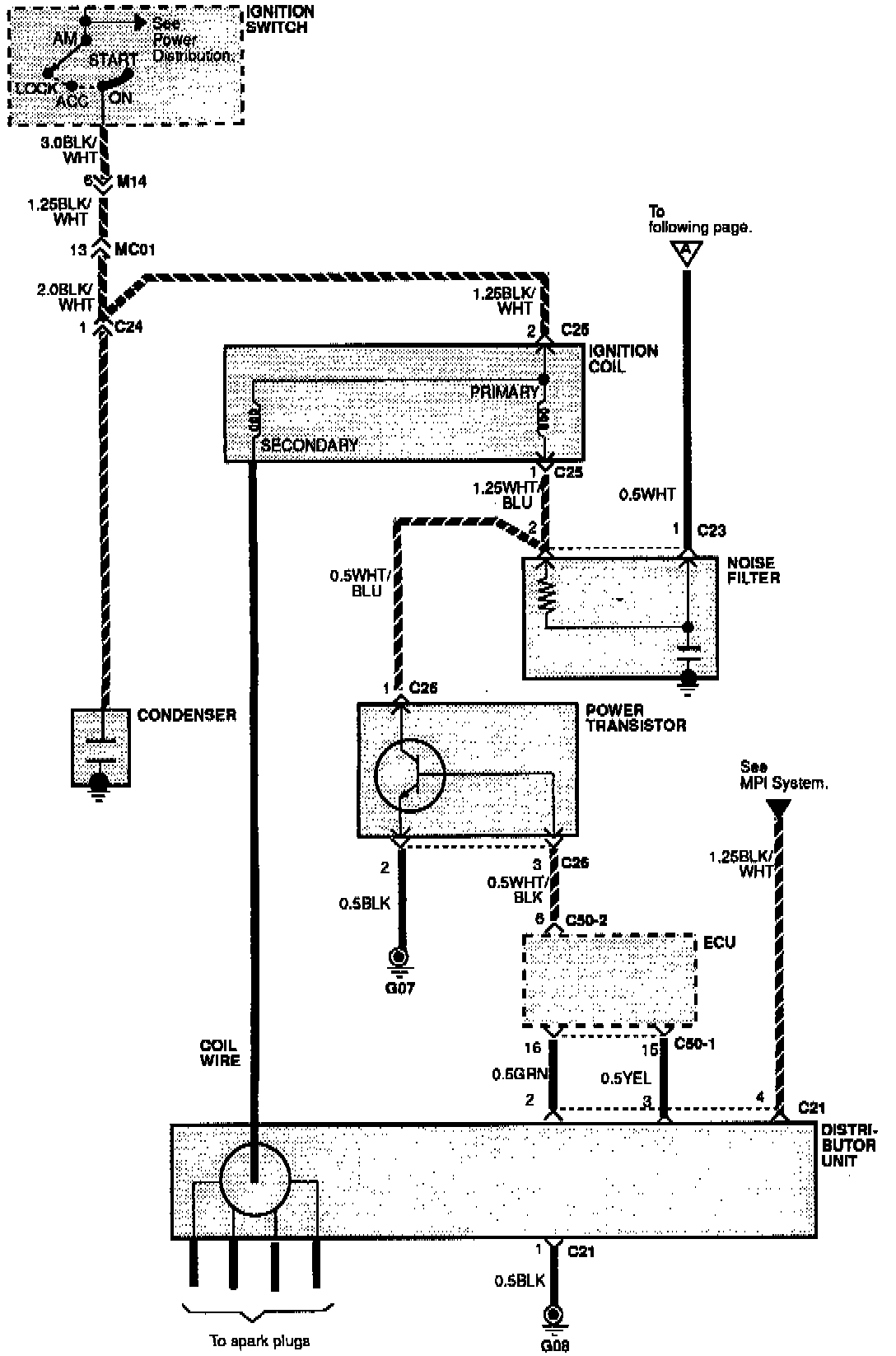

Ignition System (With MPI):

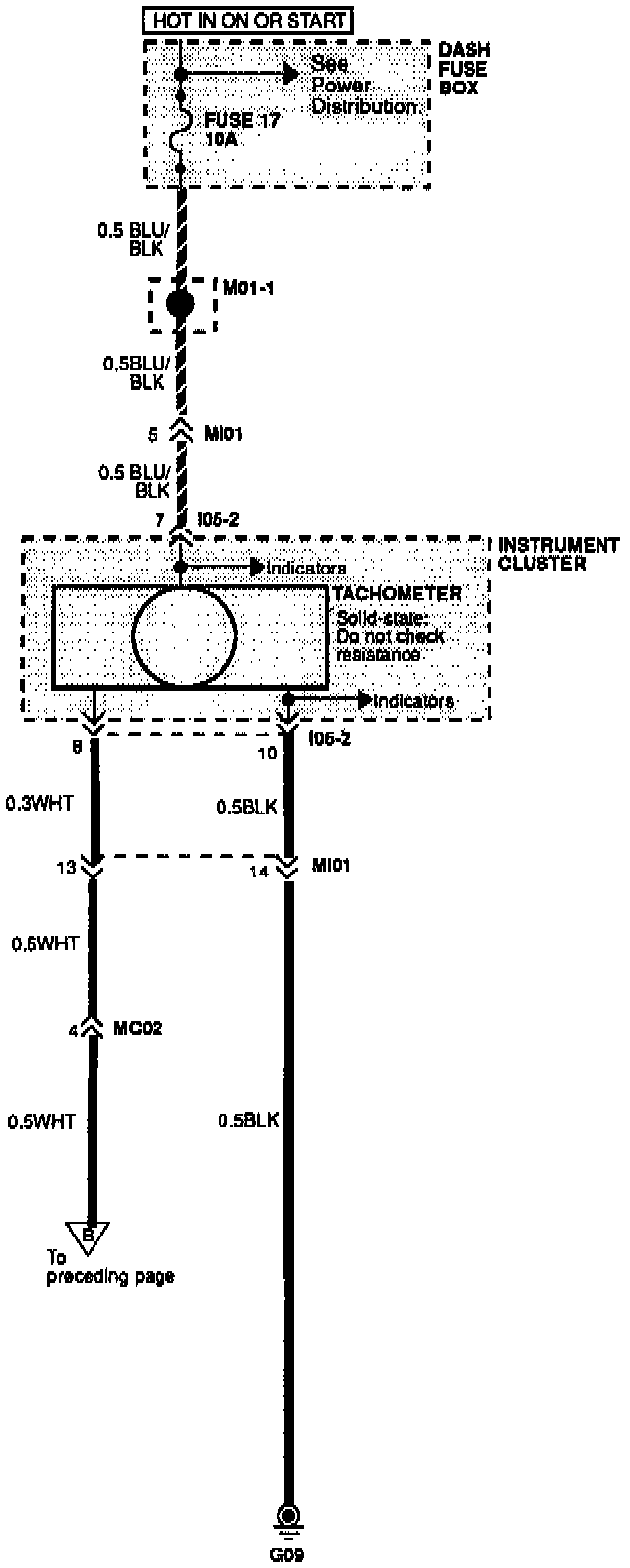

Ignition System (With MPI):
