Home >> Hyundai >> 1993 >> Excel L4-1468cc 1.5L SOHC (8 VALVE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Ignition System >> System Diagram >> FBC

FBC

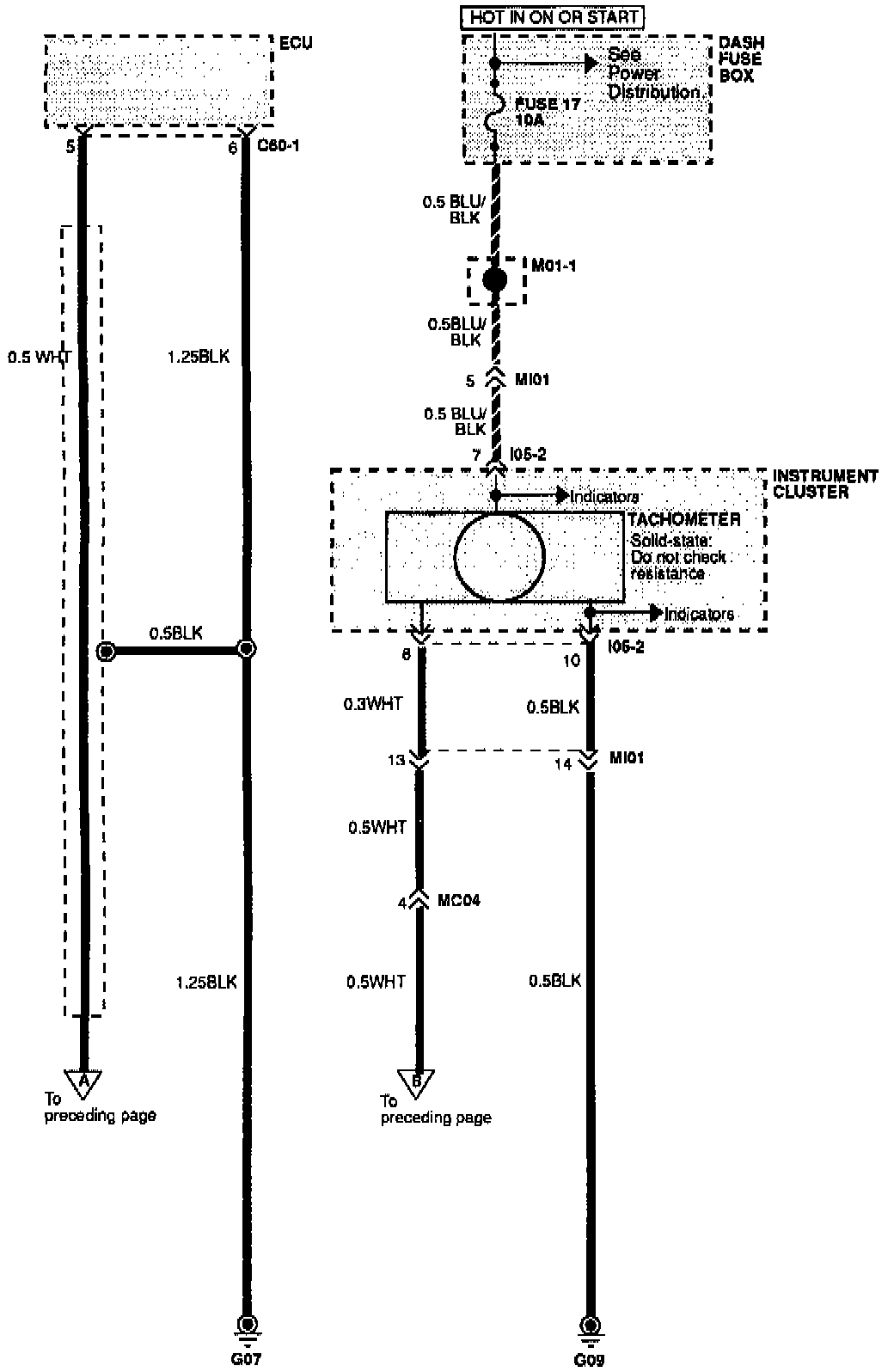

Ignition System (With FBC):

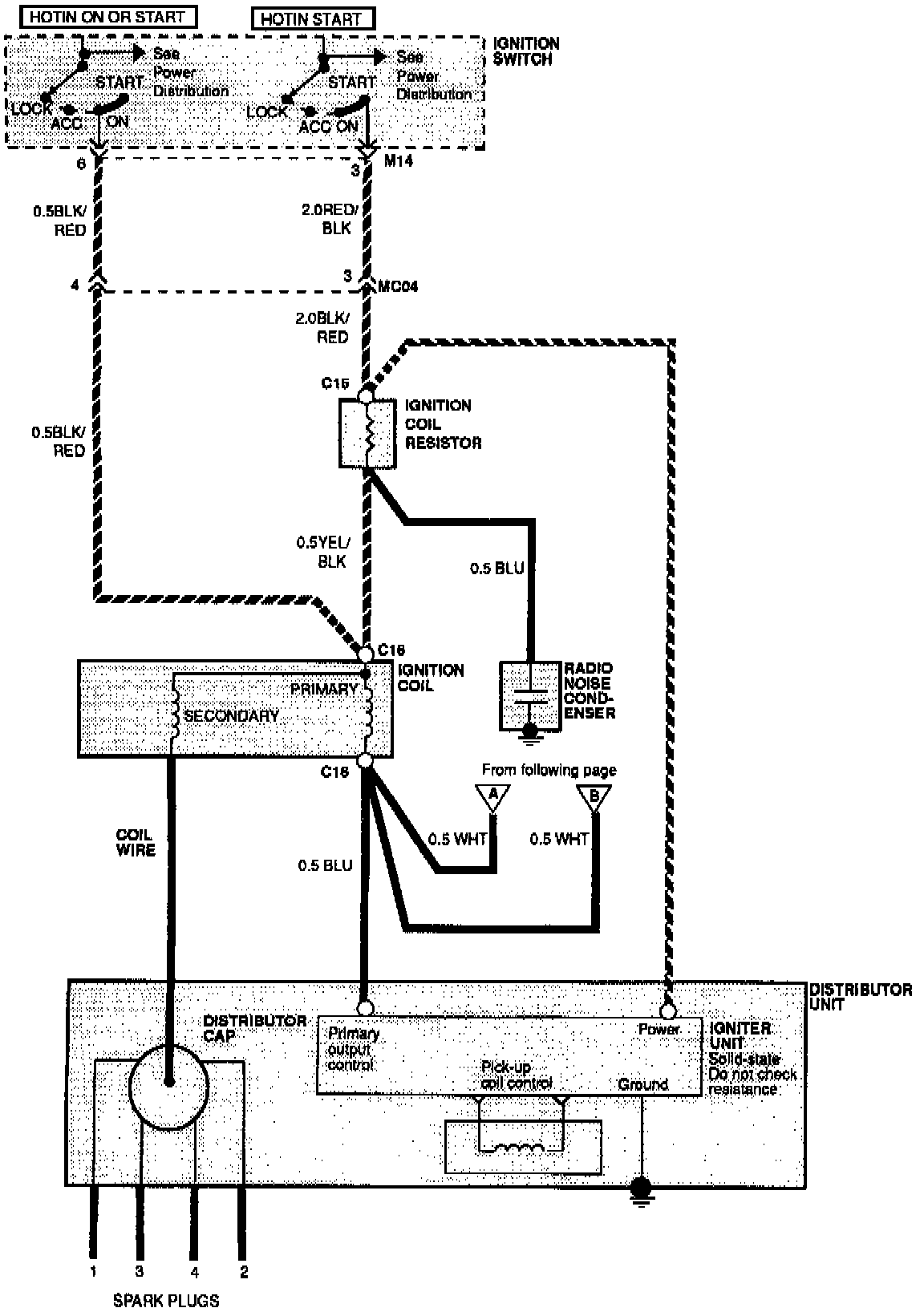

Ignition System (With FBC):
