California

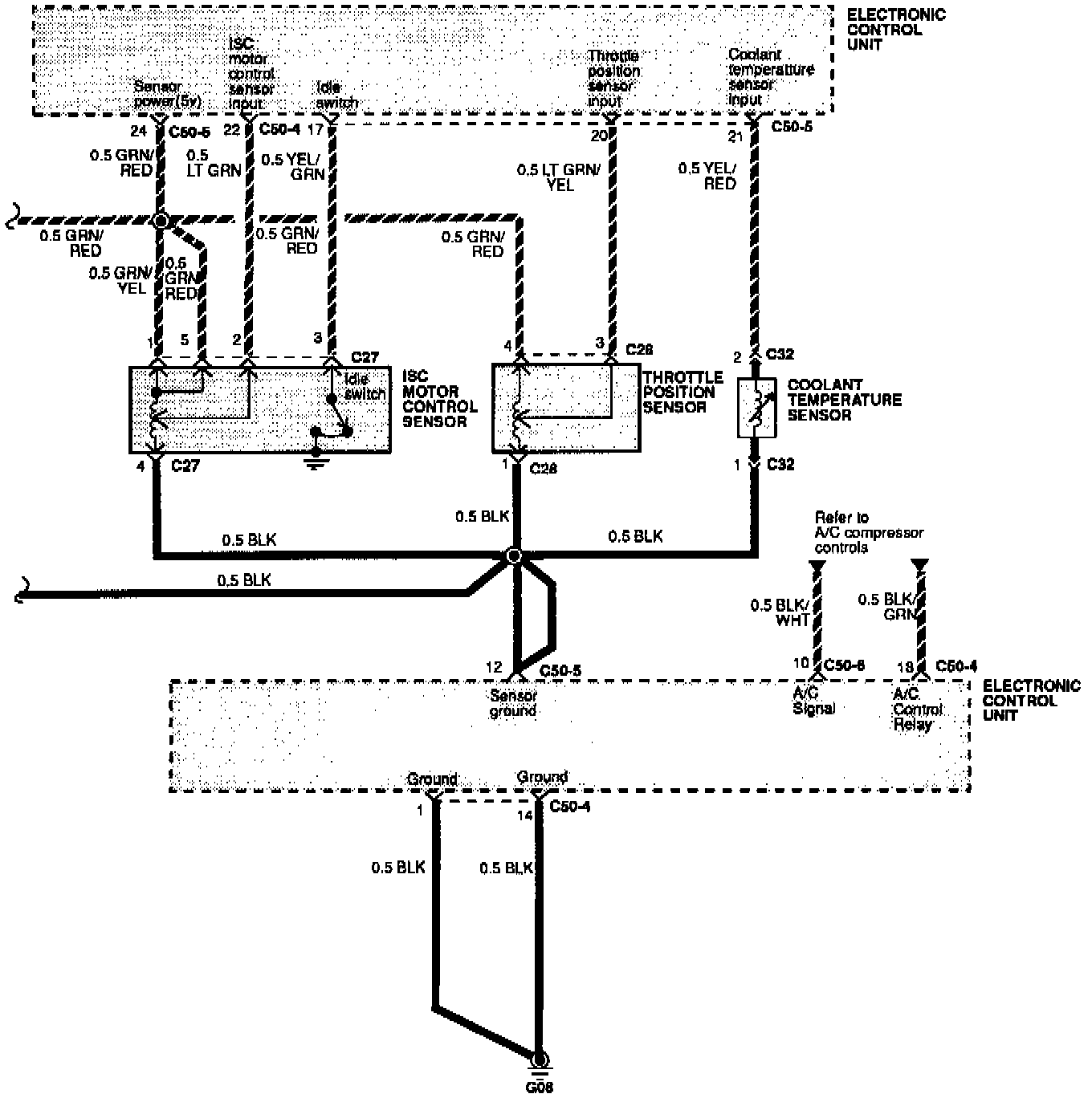

Engine Management (MPI, USA, California):

MPI Wiring Schematic (1 Of 6)

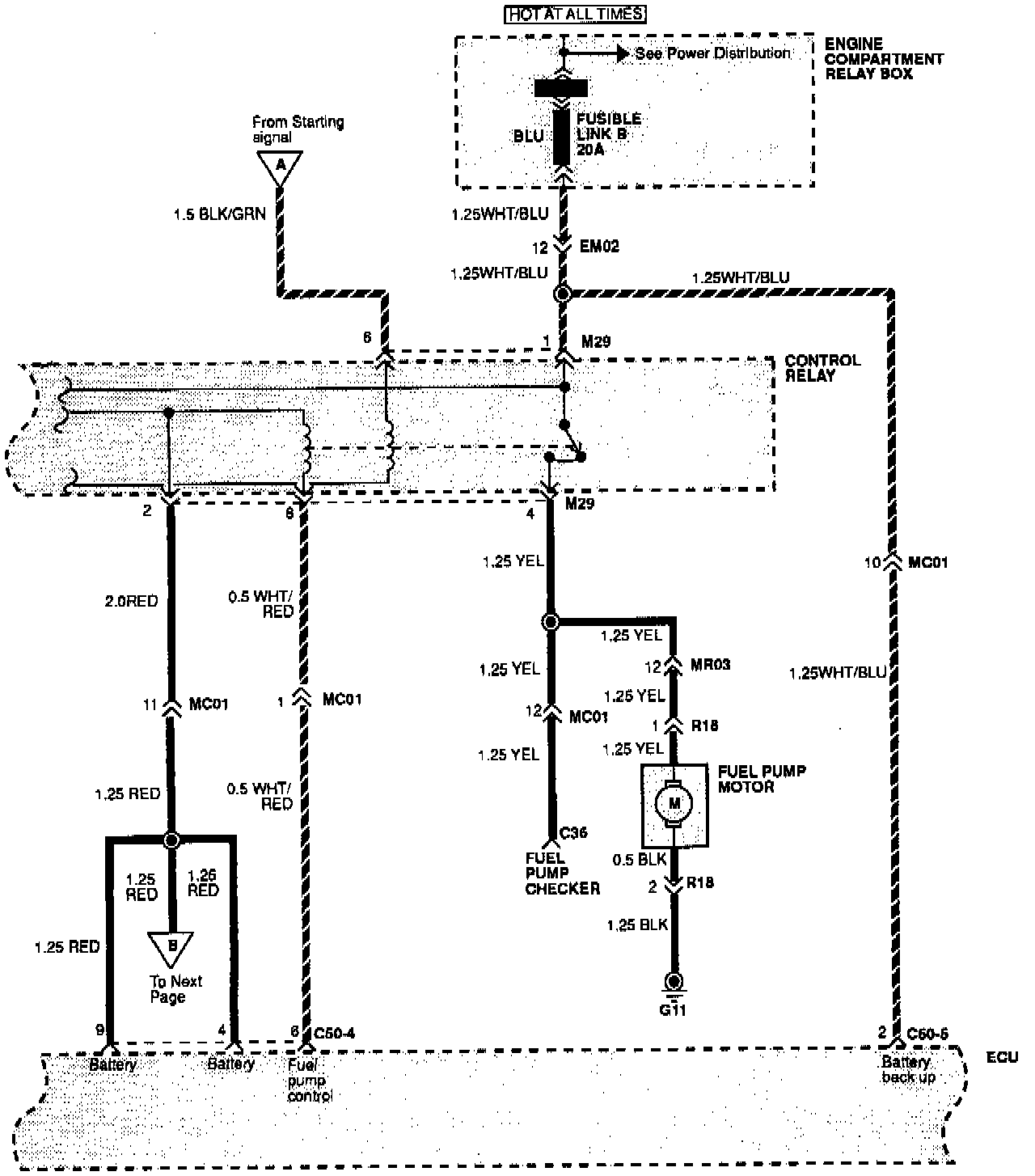

Engine Management (MPI, USA, California):

MPI Wiring Schematic (2 Of 6)

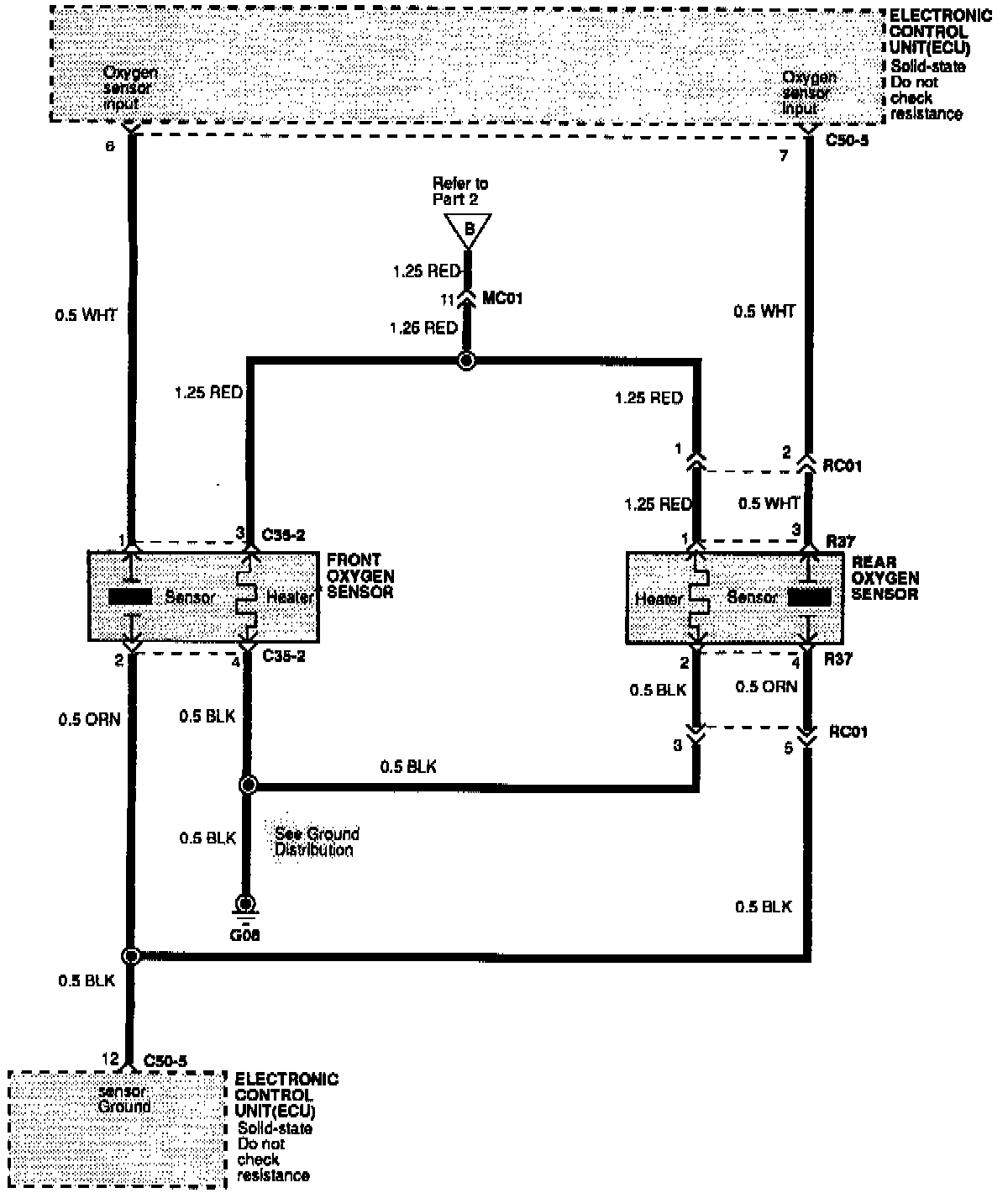

Engine Management (MPI, USA, California):

MPI Wiring Schematic (3 Of 6)

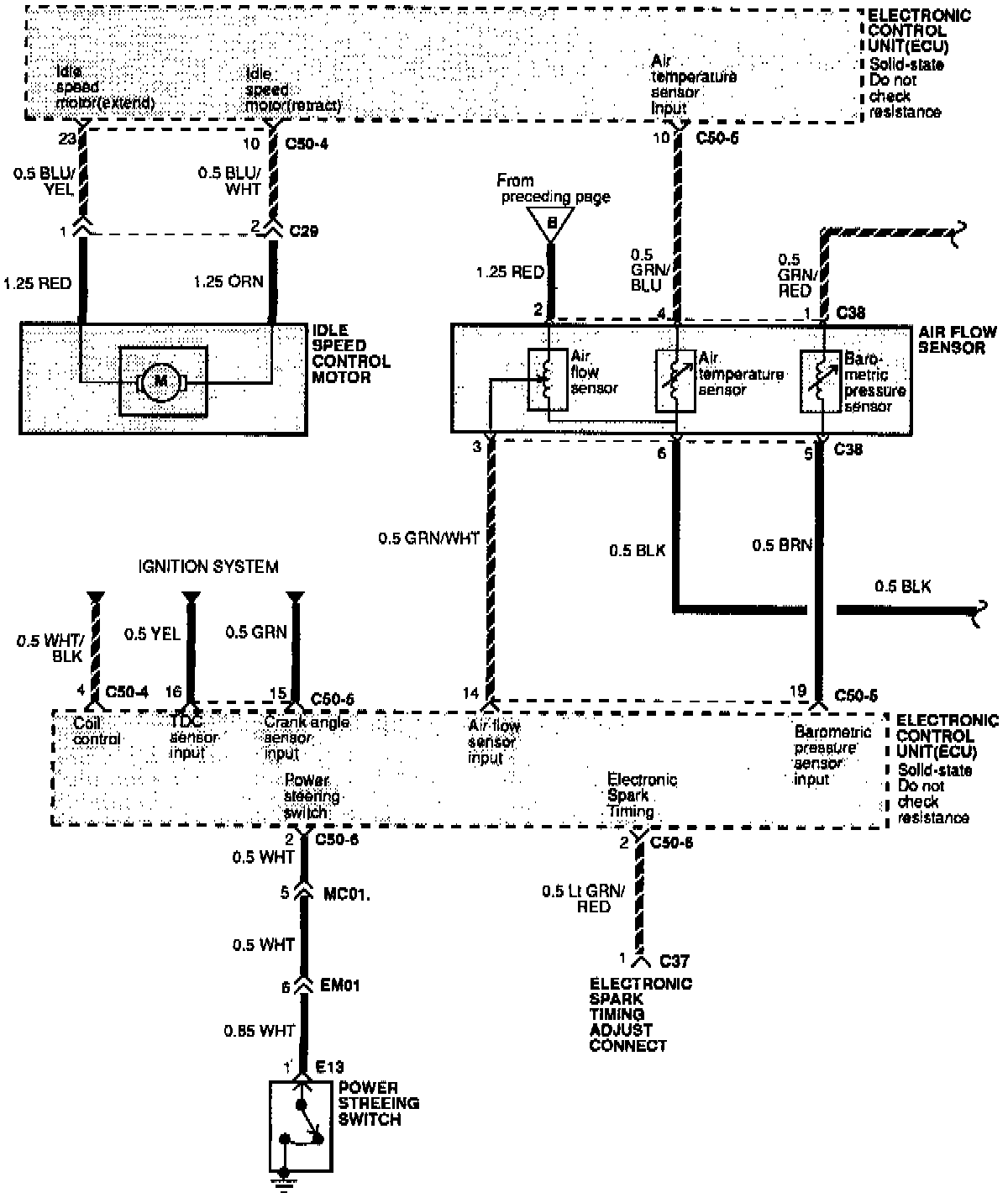

Engine Management (MPI, USA, California):

MPI Wiring Schematic (4 Of 6)

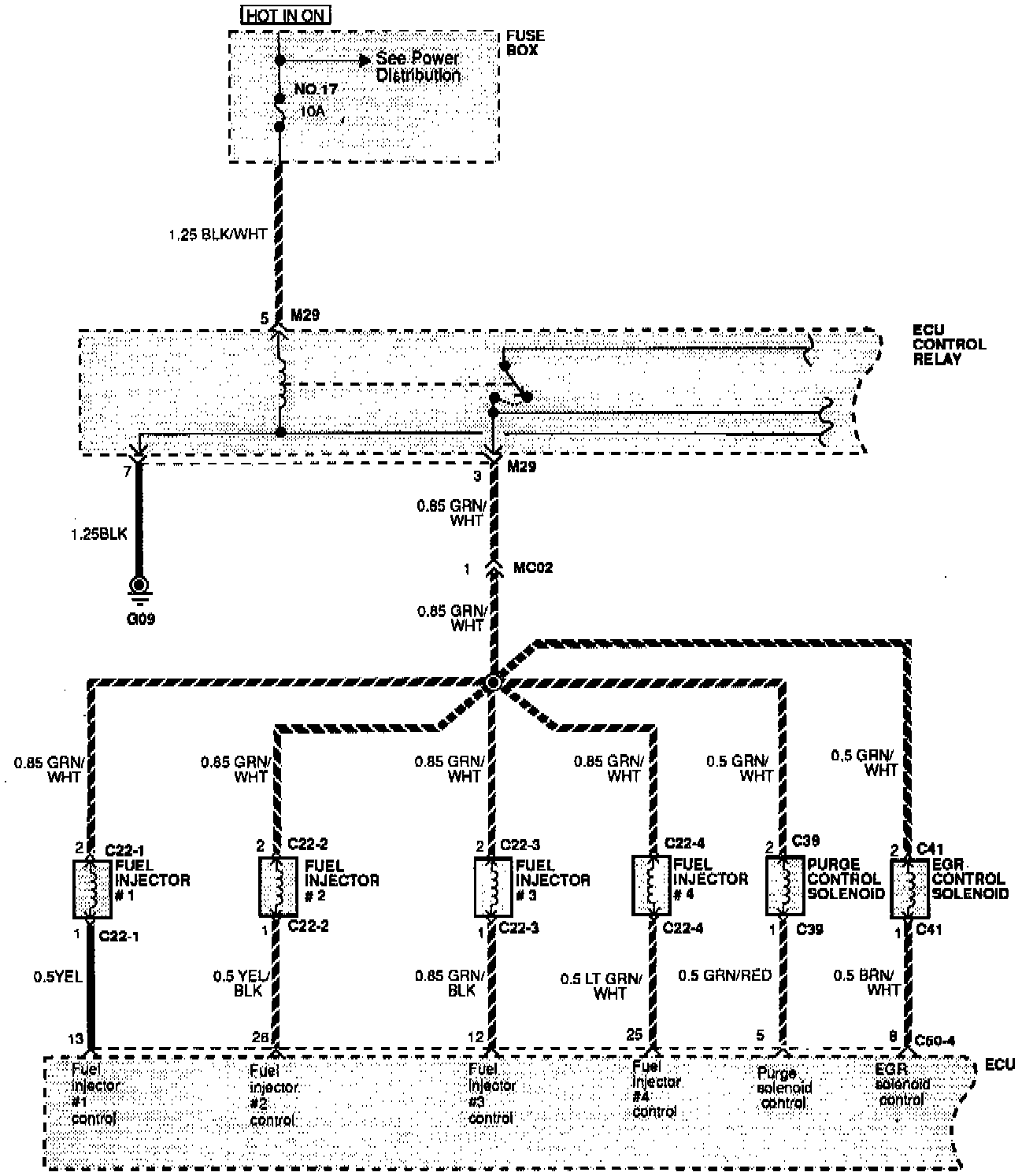

Engine Management (MPI, USA, California):

MPI Wiring Schematic (5 Of 6)

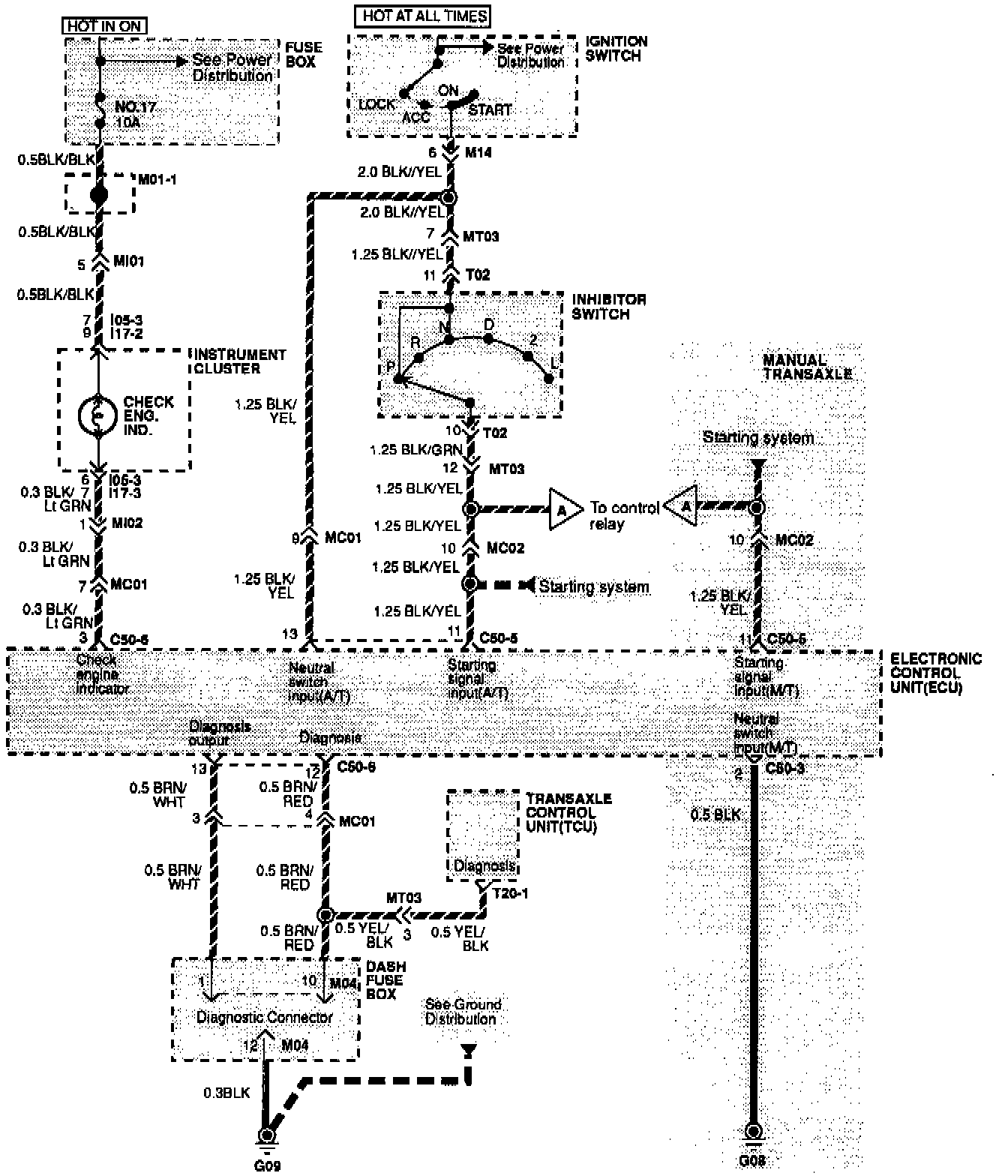

Engine Management (MPI, USA, California):

MPI Wiring Schematic (6 Of 6)
