FBC

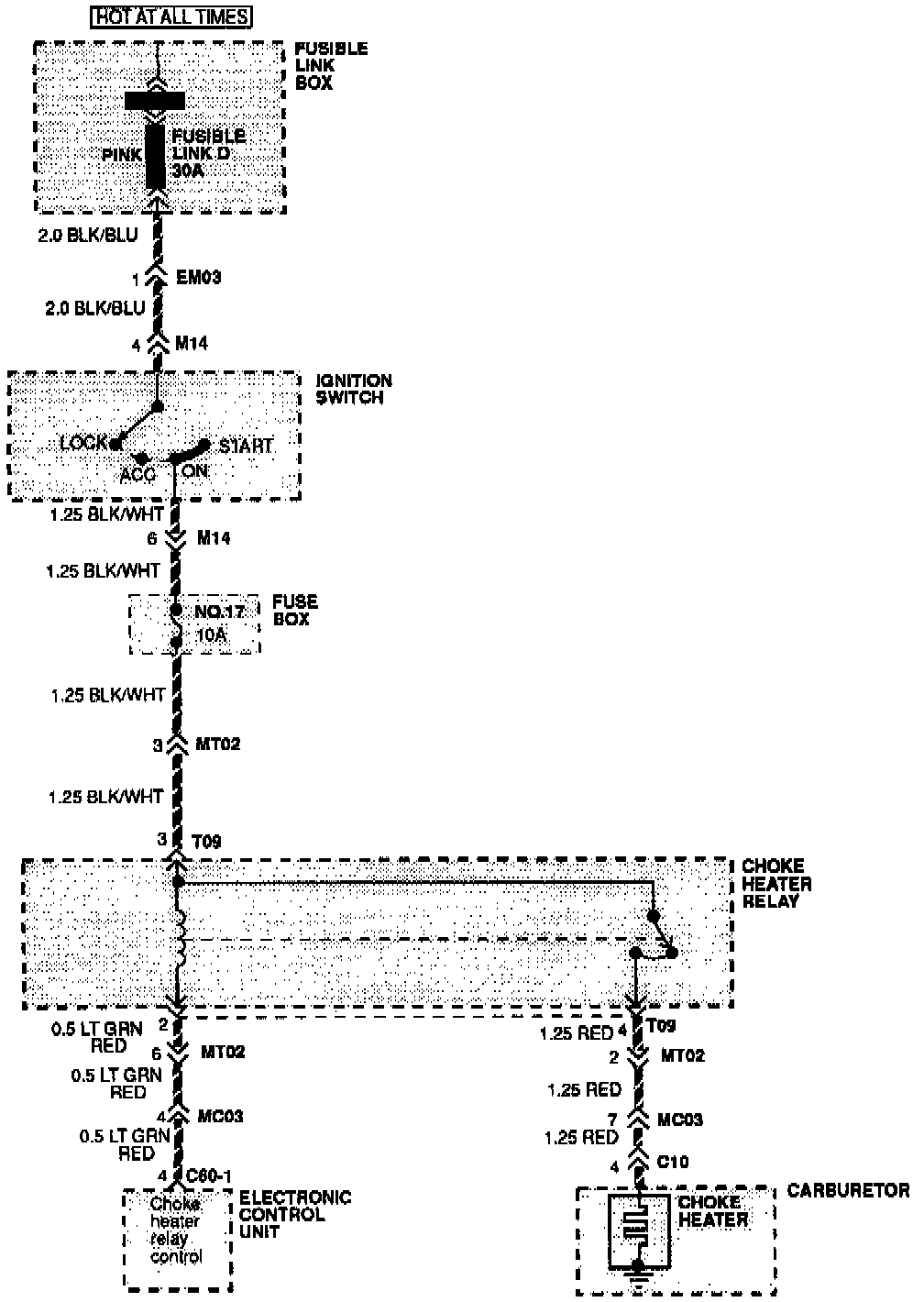

Engine Management (FBC):

MPI Wiring Schematic (1 Of 5)

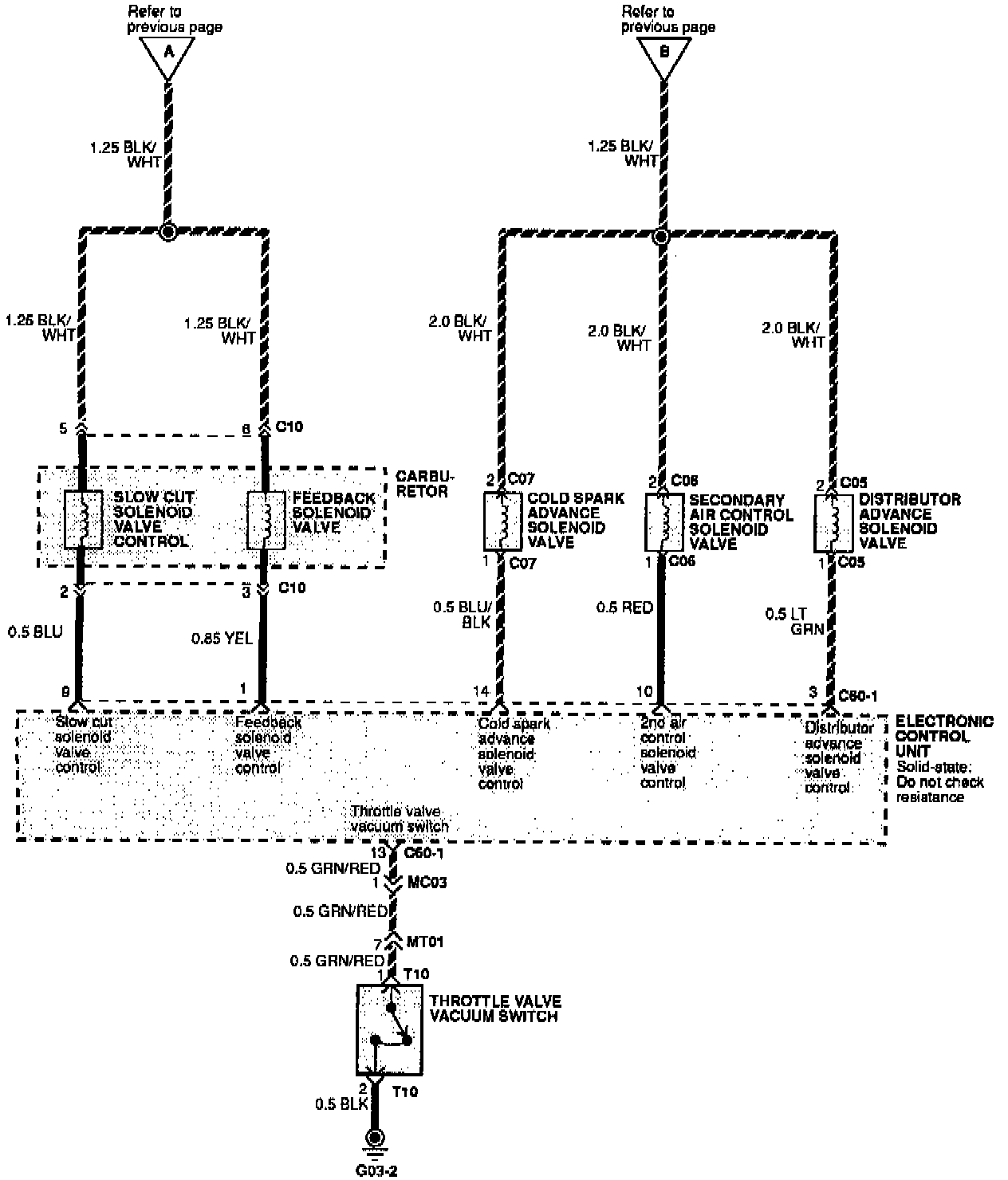

Engine Management (FBC):

MPI Wiring Schematic (2 Of 5)

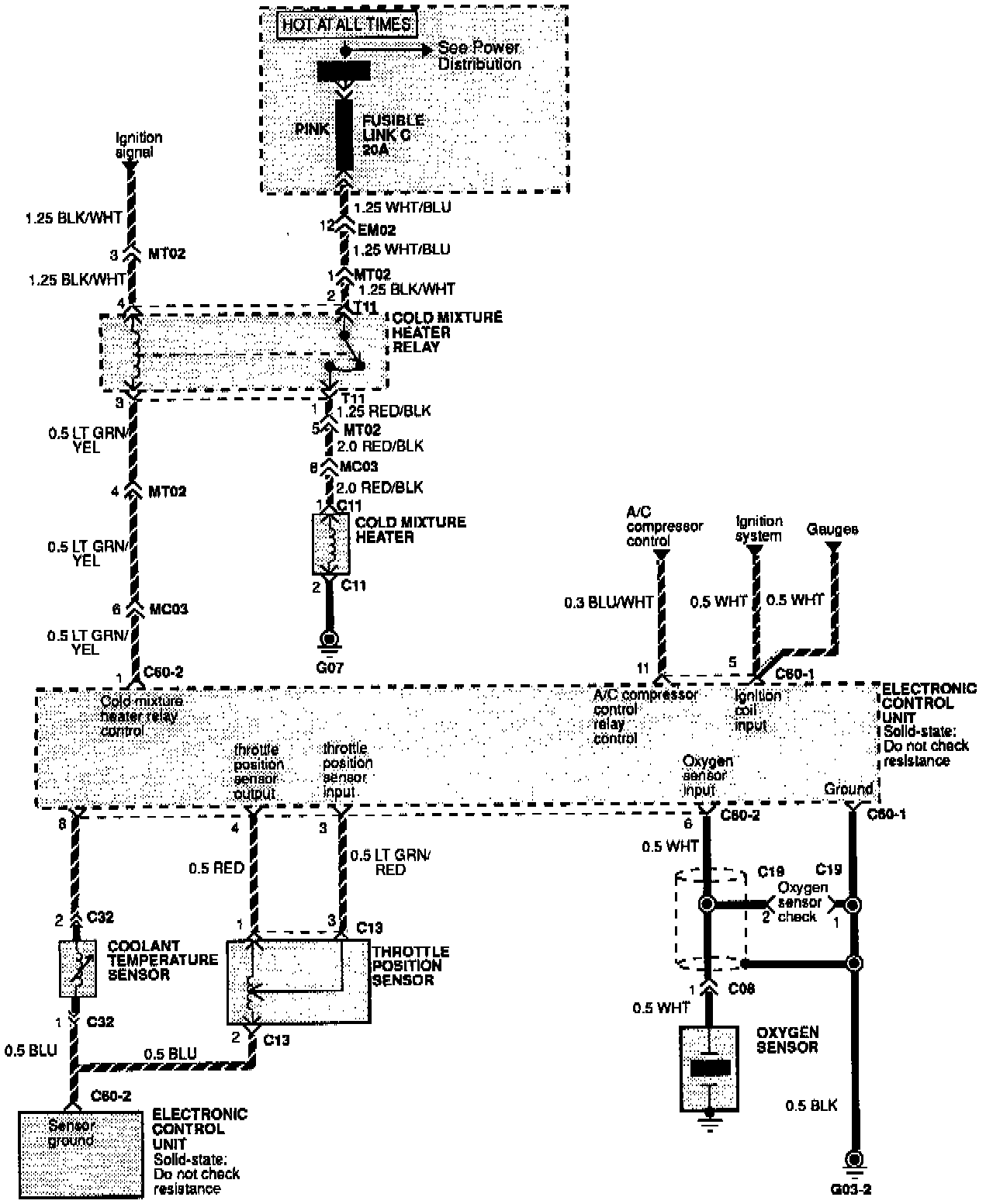

Engine Management (FBC):

MPI Wiring Schematic (3 Of 5)

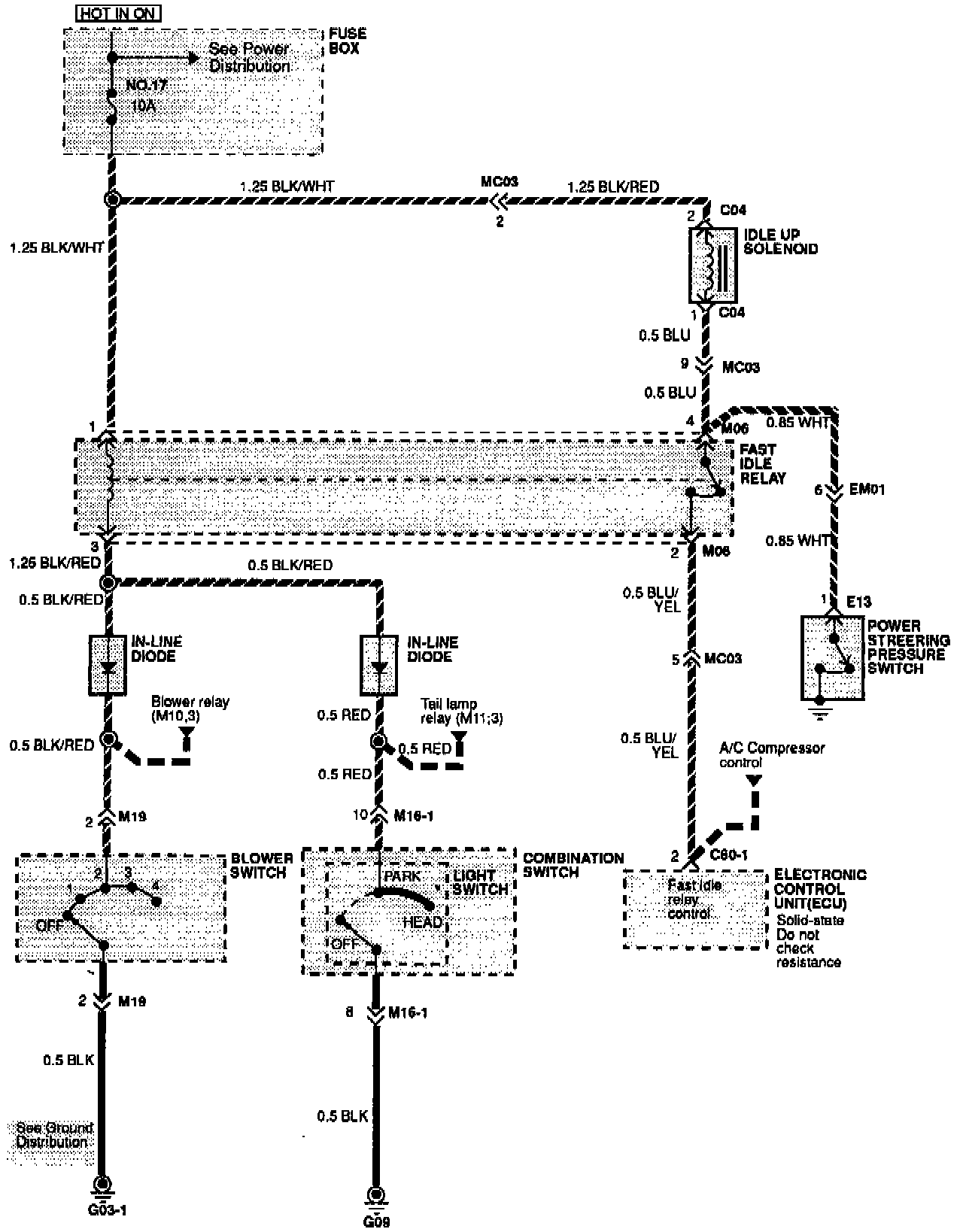

Engine Management (FBC):

MPI Wiring Schematic (4 Of 5)

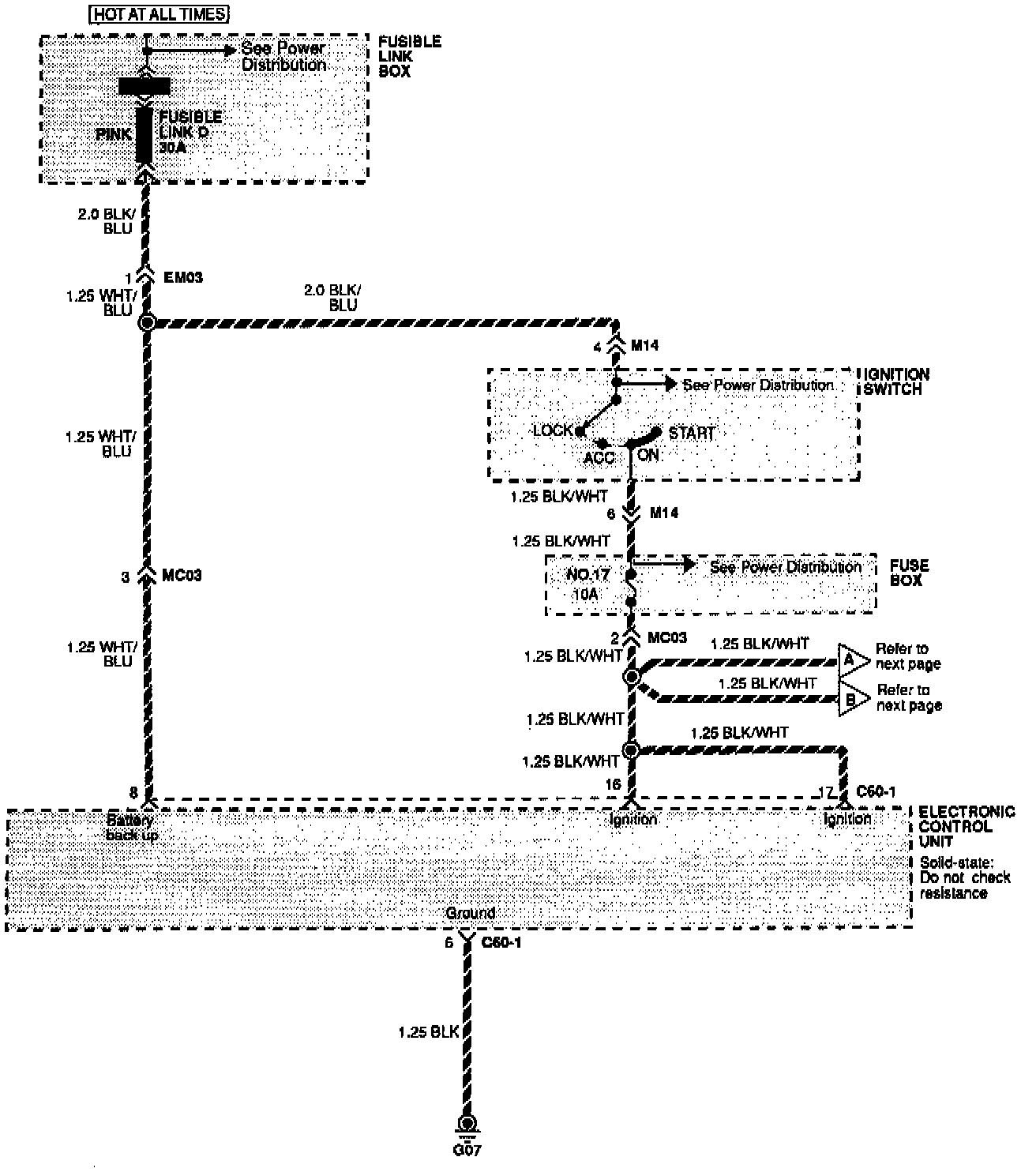

Engine Management (FBC):

MPI Wiring Schematic (5 Of 5)
