Home >> Hyundai >> 1993 >> Excel L4-1468cc 1.5L SOHC (8 VALVE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Automatic Transmission/Transaxle >> System Diagram

System Diagram

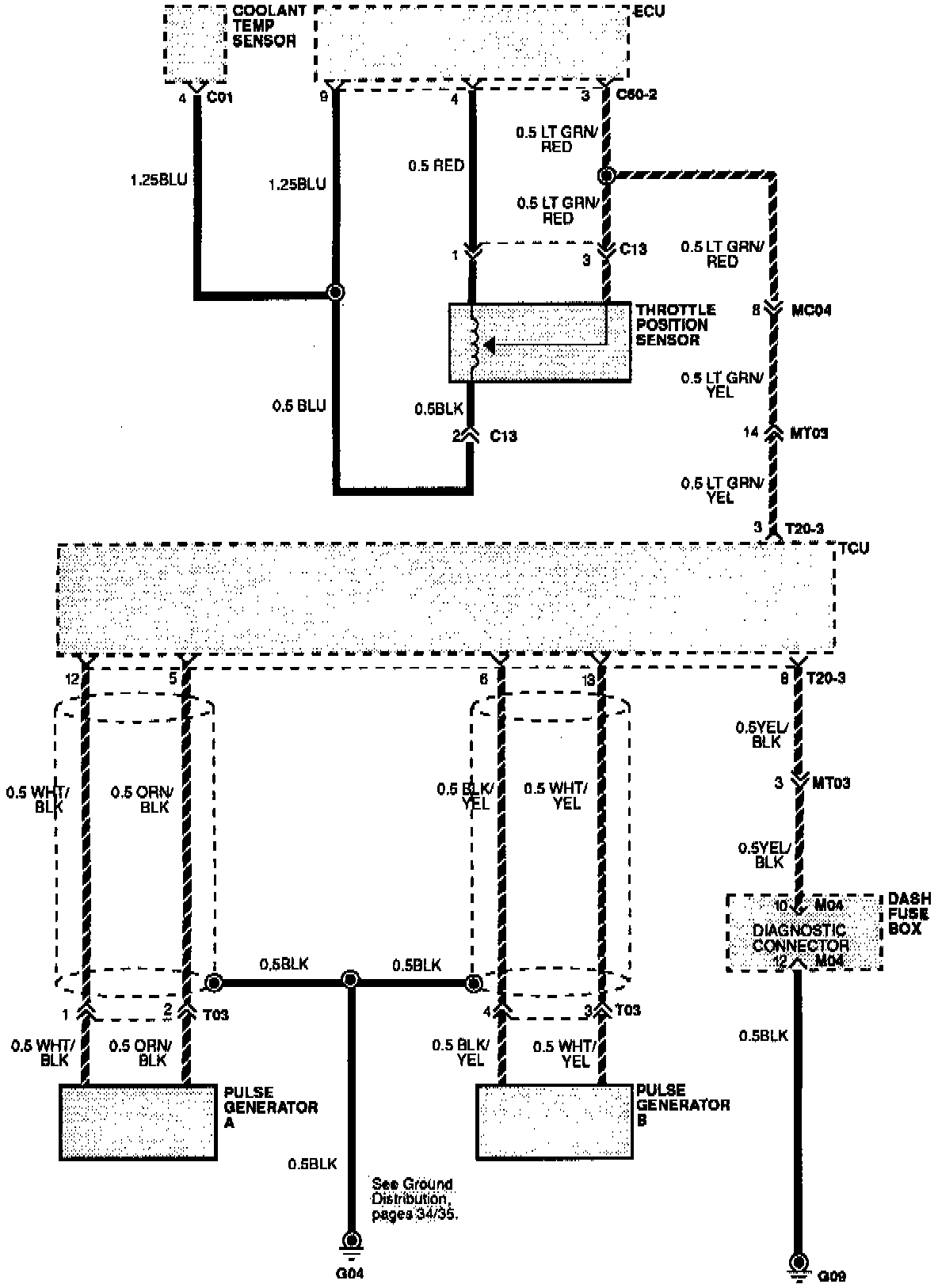

Transaxle Controls (for FBC):

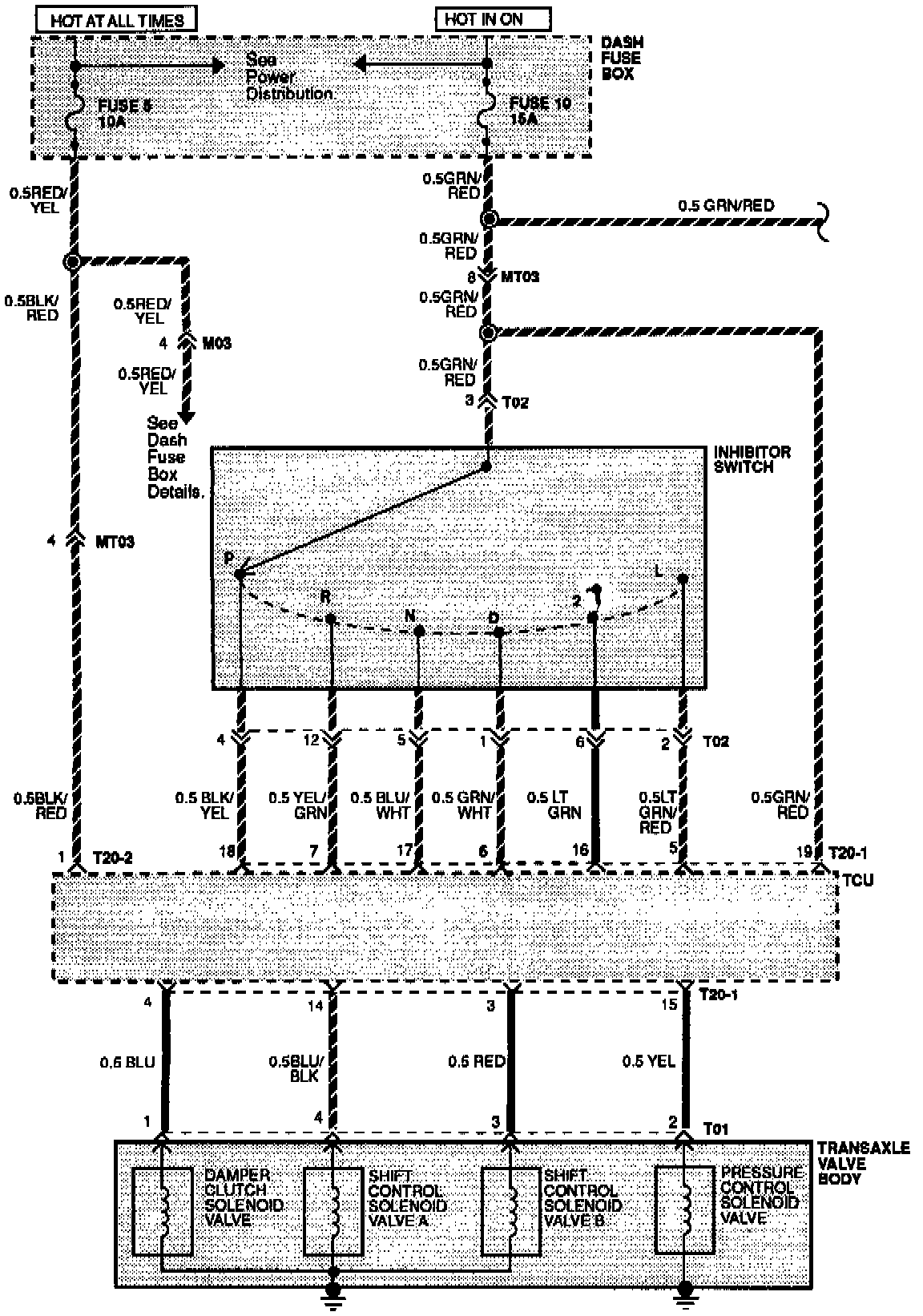

Transaxle Controls (for FBC):

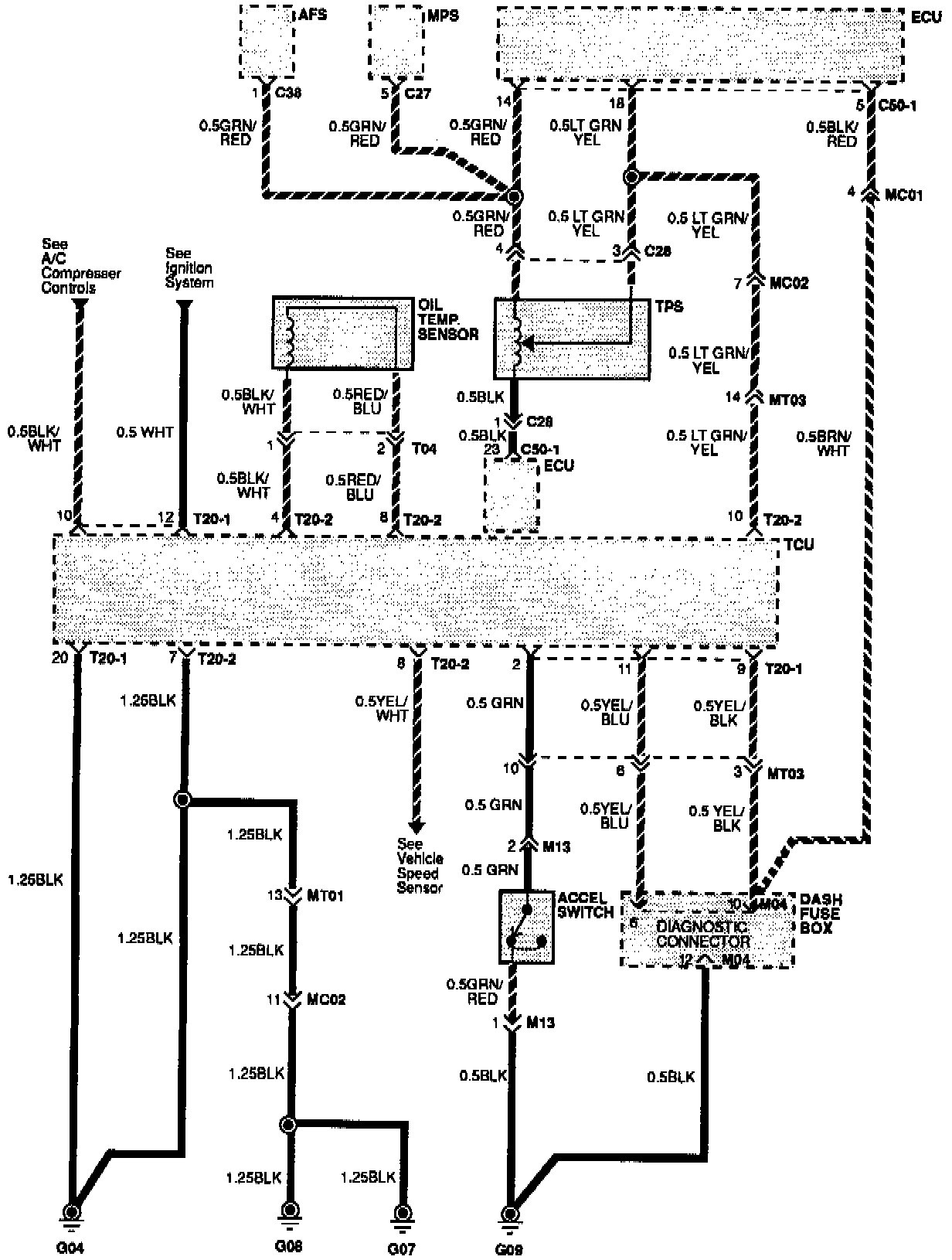

Transaxle Controls (for MPI):

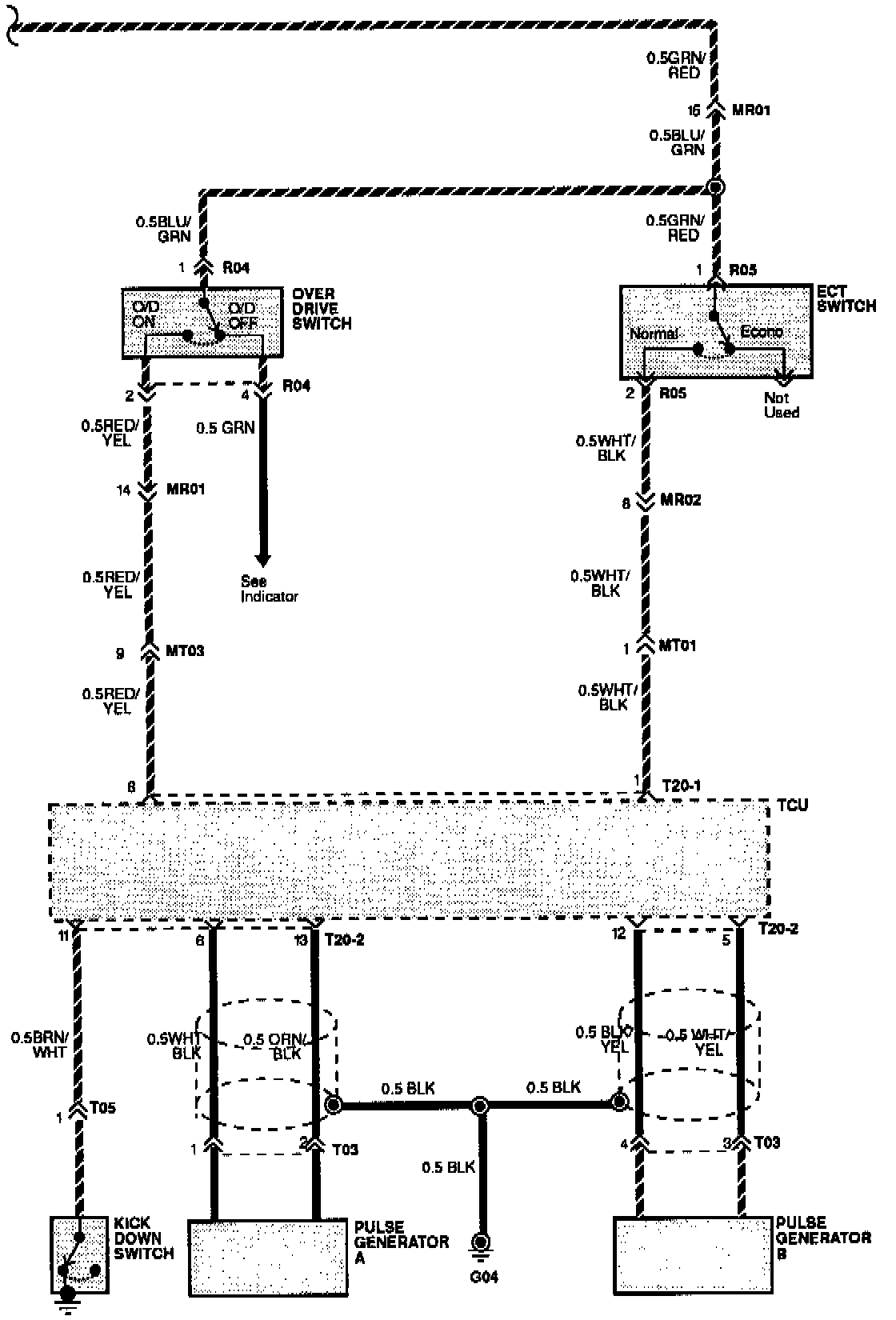

Transaxle Controls (for MPI):

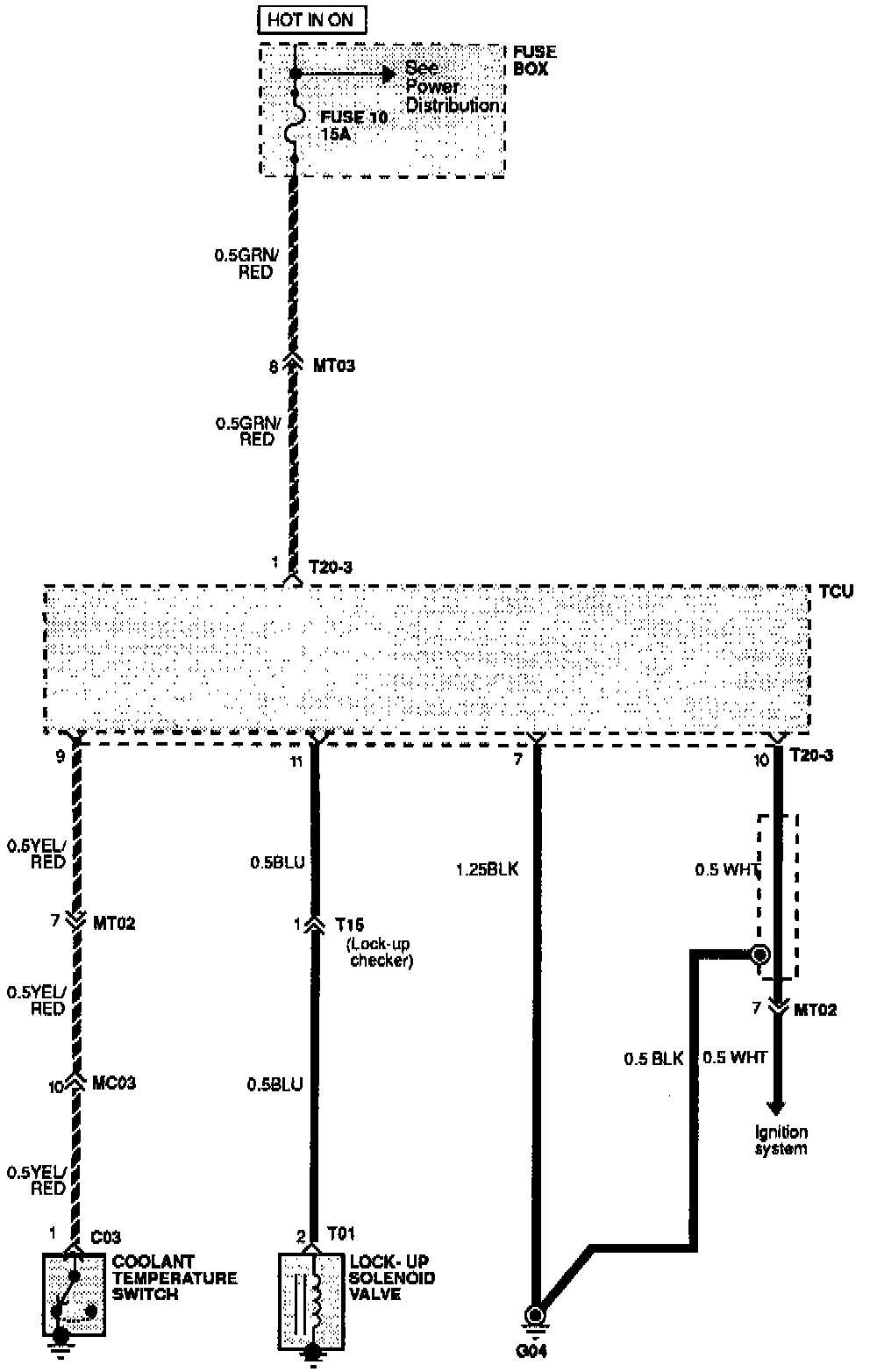

Transaxle Controls (for MPI):
