Home
>>
Hyundai
>>
1993
>>
Excel L4-1468cc 1.5L SOHC (8 VALVE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
M46 - M69
M46 - M69

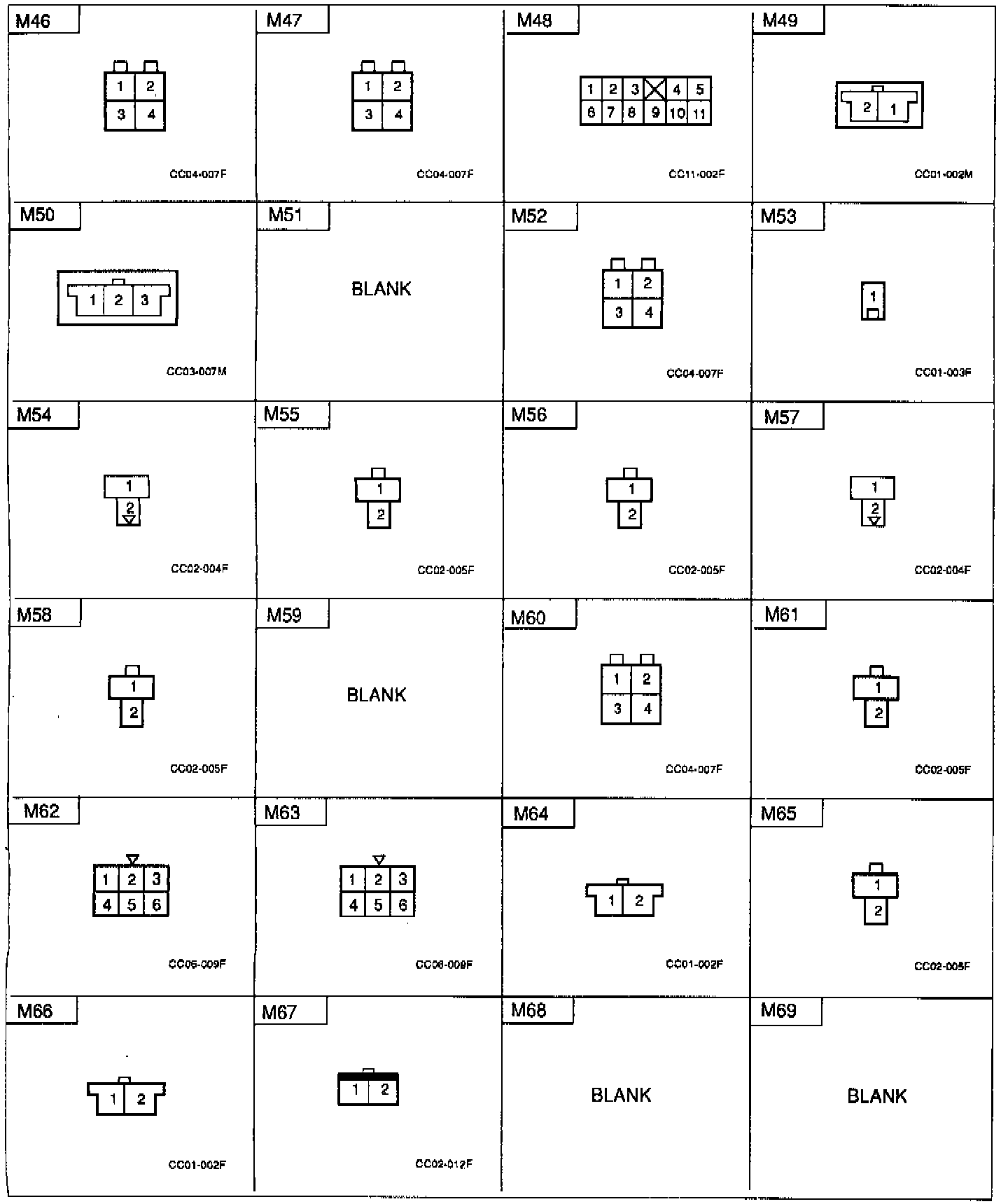

Connector Identification: M46 Thru M69:
